Tryg Exterior Wall - Elegant
SEW11287 27.30 in
Tryg Exterior Wall - Elegant
This low profile, IP66 rated fixture offers a unique design and durability suitable for any project. Its creative design acts as an efficient heat sink, maximizing output and life by allowing the LEDs to operate at an optimal temperature. Tryg is suitable for a variety of applications, and its flexible design lends itself to customization and modification.
Tryg Exterior Wall - Elegant SEW11287

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • All visible fasteners are flush mounted, providing a clean design
  • Frosted acrylic shield enhances a space with diffused illumination
  • Anodized finish provides optimal thermal effectiveness and durable corrosion protection
  • Versatile design allows fixture to be mounted in any orientation
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs at 38°C ambient temperature
  • EFFICACY: 82 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER: Includes remote Class 2 power supply and either a damp location or wet location enclosure. Black weatherproof power cord with watertight fittings. 36" lead length standard.
  • DIMMING: 0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION: Extruded aluminum construction provides durable protection for internal components and is recyclable
  • FINISH: Housing available in anodized finishes only. Mounting components painted to match.
  • MODIFICATIONS: Consult factory for all modification requests; including static LED colors
  • APPROVALS: ETL listed to UL standards (US and Canada) for use in wet locations. IP66 rated fixture per International Electrotechnical Commission (IEC) certifies fixture as dust-tight and protected against powerful water jets.

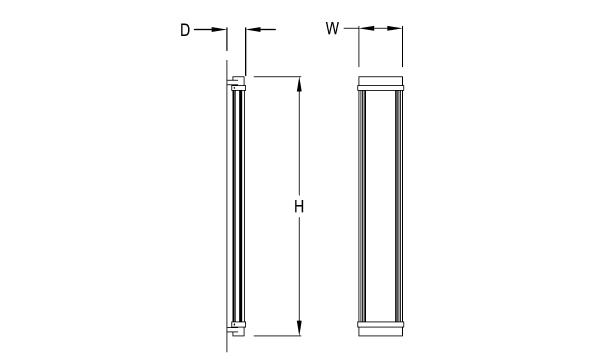

DIMENSIONS

Dimensions
W
5 in
12.7 cm
H
27.3 in
69.3 cm
D
1.9 in
4.8 cm
Mounting Weight
Approximate: 25 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternate wattages available upon request.

L8W | White 8W LED Light Engine

Delivered Lumens: 657

L28W | White 28W LED Light Engine

Delivered Lumens: 2,299


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Remote Power Supply Enclosure *

PSE | Remote Power Supply with Damp Location Enclosure
PSE-NONE | Remote Power Supply without Enclosure
PSE-WL | Remote Power Supply with Wet Location Enclosure

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up

EMR | Emergency Battery Remote

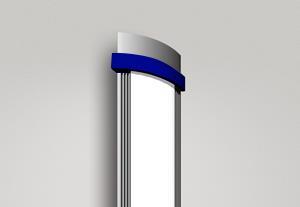

Color Accents

Specify a painted Color Accent for the narrow band between end cap and extrusion.

CA01 | Color Accent

CA01

Options

F | Fusing

Request a modification
