Vallejo LC - Ceiling

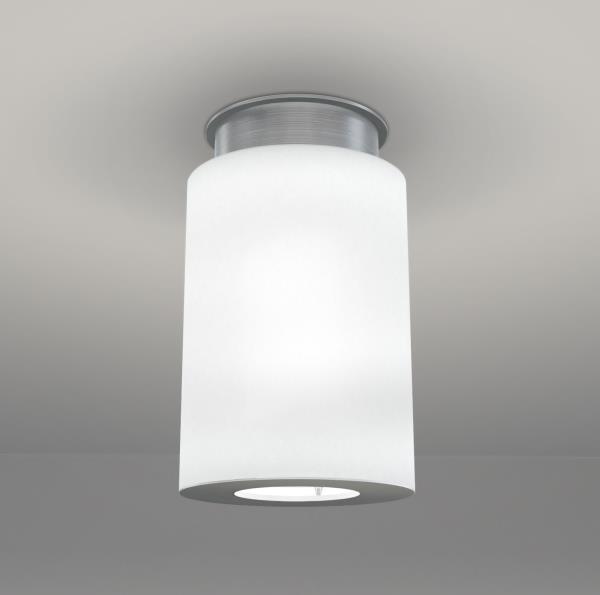

Add elegance and radiance to your most discerning spaces. This luminous cylinder's integral regressed downlight delivers correct light levels where needed. Ambient illumination provides a gentle visual warm-up to the higher output downlight source while adding light to the vertical plane to open up spaces. Meticulous attention to detail ensures suitability for the highest-end applications. Integral power supply simplifies installation.
Vallejo LC - Ceiling SIC12100

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fixture has a bi-planar ambient finished bottom detail with or without the regressed downlight component
  • Integral regressed downlight available in 1900lm and beam spread of narrow, medium, wide, or very wide
  • Matte acrylic ambient cylinder diffuser is balanced with the proper amount of illumination while providing a sensible wattage allotment
  • Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
  • Ambient and downlight components are standard with separate switching and 0-10v dimming
  • Handcrafted in USA

 SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  up to 103 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser optional
  • CONSTRUCTION:  Aluminum
  • FINISH:  End plate and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING: Mounts to standard 4" octagonal junction box
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW or Tunable White
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

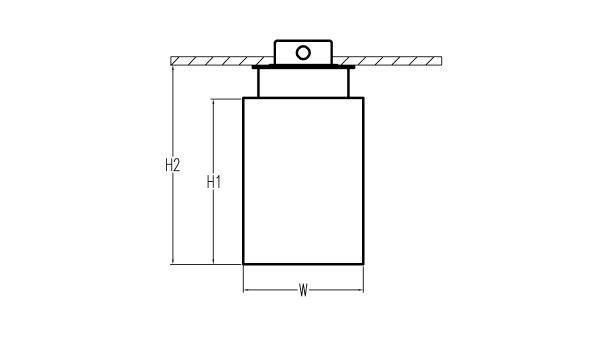

DIMENSIONS

Dimensions
W
8 in
20.3 cm
H1
11.1 in
28.2 cm
H2
13.3 in
33.8 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L10W | White 10W LED Light Engine

Delivered Lumens: 980


Voltage *

120-277V | Universal Voltage

Lamp Options *

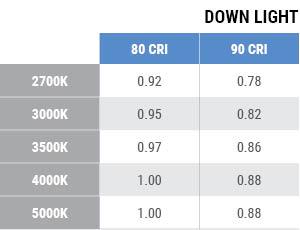

Apply multiplier from charts for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Light Source Option *

If you’re specifying a downlight option, layer the ambient and downlight IES files. Downlight CCT will match the Lamp Options selection above. Please choose one:

18W-26° Narrow | 18W (1900 delivered lumens) Downlight - 26° Beam

18W-40° Medium | 18W (1900 delivered lumens) Downlight - 40° Beam

18W-55° Wide | 18W (1900 delivered lumens) Downlight - 55° Beam

18W-90° Very Wide | 18W (1900 delivered lumens) Downlight - 90° Beam

No DL | No Downlight

18W-26° Narrow
18W-40° Medium
18W-55° Wide
18W-90° Very Wide

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)
OA | White Gloss Acrylic Diffuser

MA01
OA

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote
