SIP12154 2.00 in

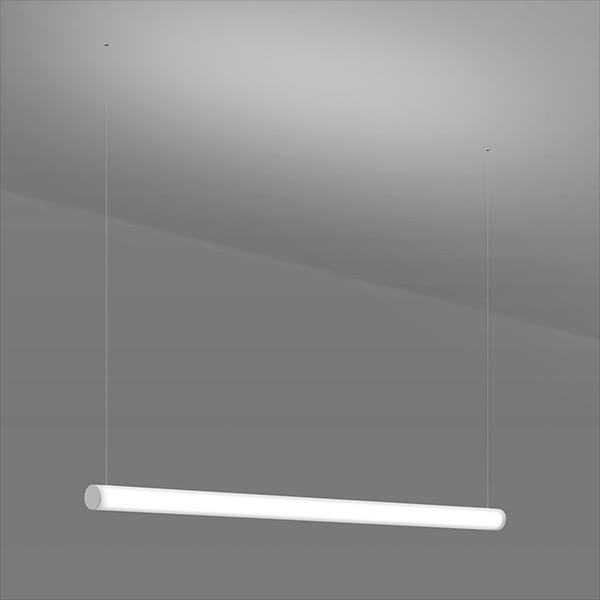

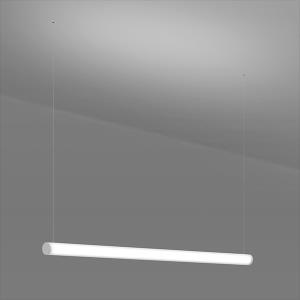

Pavo 2" Horizontal
Design the way you’ve always wanted – with pure lines of light. This 2" diameter cylindrical pendant features end-to-end illumination and a revolutionary full 360° of evenly-emitted light. Pavo 2" Horizontal has no metal housing and no power cord to break the minimalist form. It’s pure, simple, and creates endless design possibilities. Available in 1' to 6' lengths as a pendant or in continuous runs. Mount it horizontally or at any angle you desire.
Pavo 2" Horizontal SIP12154

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • The design element you've been missing
  • Linearly-lit pendant provides 360° of illumination along the entire length of the lens
  • An expression of light in its most basic form
  • Provides functional lighting with comfortable luminance levels
  • Available in continuous runs
  • Up to 668 lm/ft delivered
  • Nearly invisible energized cables make the luminaire appear weightless
  • Energized cables drop through the lens so end plates remain clean
  • Pairs well with the entire Pavo family, which features fully-illuminated cylindrical forms from 2" to 12" in diameter and up to 8' in length
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  Up to 92 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Remote Class 2 power supply. Max distance to the driver is 15' (includes OAH). Continuous runs are supplied with one power supply per fixture. For extended distances, contact factory.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser available (contact factory)
  • CONSTRUCTION:  Zinc plated steel with aluminum end caps
  • FINISH:  Solid flat end plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in dry locations; not recommended for exterior applications

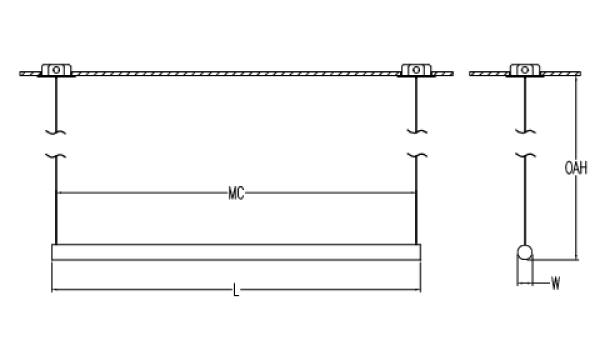

DIMENSIONS

Dimensions
1FT
W
2 in
5.1 cm
L
12 in
30.5 cm
OAH
72 in
182.9 cm
MC
9.1 in
23.1 cm
Mounting Weight: Approximate: 5 lb (3 kg)
2FT
W
2 in
5.1 cm
L
24 in
61 cm
OAH
72 in
182.9 cm
MC
21.1 in
53.6 cm
Mounting Weight: Approximate: 5 lb (3 kg)
3FT
W
2 in
5.1 cm
L
36 in
91.4 cm
OAH
72 in
182.9 cm
MC
33.1 in
84.1 cm
Mounting Weight: Approximate: 5 lb (3 kg)
4FT
W
2 in
5.1 cm
L
48 in
121.9 cm
OAH
72 in
182.9 cm
MC
45.1 in
114.6 cm
Mounting Weight: Approximate: 5 lb (3 kg)
6FT
W
2 in
5.1 cm
L
72 in
182.9 cm
OAH
72 in
182.9 cm
MC
69.1 in
175.5 cm
Mounting Weight: Approximate: 10 lb (5 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Published luminaire wattages assume standard OAH. Alternative wattages available upon request. This fixture can be ordered in a 6" length with BCE mount; contact factory to order. The 6' length is only available in low wattage. To discuss options for higher outputs, contact factory.

1 FOOT NOMINAL FIXTURE
1FT-L8W | White 8W LED Light Engine

Delivered Lumens: 771

2 FOOT NOMINAL FIXTURE
2FT-L8W | White 8W LED Light Engine

Delivered Lumens: 771

2FT-L16W | White 16W LED Light Engine

Delivered Lumens: 1,542

CUST_Out_2FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 8.0 - Max 16.0
LU   Min 743 - Max 1486
3 FOOT NOMINAL FIXTURE
3FT-L12W | White 12W LED Light Engine

Delivered Lumens: 1,156

3FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,313

CUST_Out_3FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 12.0 - Max 24.0
LU   Min 1115 - Max 2230
4 FOOT NOMINAL FIXTURE
4FT-L16W | White 16W LED Light Engine

Delivered Lumens: 1,542

4FT-L32W | White 32W LED Light Engine

Delivered Lumens: 3,084

CUST_Out_4FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 16.0 - Max 32.0
LU   Min 1486 - Max 2973
6 FOOT NOMINAL FIXTURE
6FT-L24W | White 24W LED Light Engine

Delivered Lumens: 2,313


*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

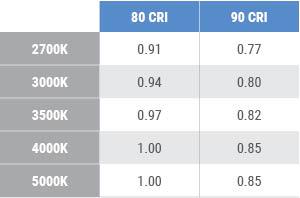

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming
LDE1 | Lutron Hi-lume EcoSystem Control, 1% Dimming (Soft-On, Fade-to-Black)

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)
OA | White Gloss Acrylic Diffuser
HP01- 1' | Silver Hand Painted Acrylic Diffuser
HP02- 1' | Beige Hand Painted Acrylic Diffuser
HP03- 1' | Amber Hand Painted Acrylic Diffuser
HP01- 2' | Silver Hand Painted Acrylic Diffuser
HP02- 2' | Beige Hand Painted Acrylic Diffuser
HP03- 2' | Amber Hand Painted Acrylic Diffuser
HP01- 3' | Silver Hand Painted Acrylic Diffuser
HP02- 3' | Beige Hand Painted Acrylic Diffuser
HP03- 3' | Amber Hand Painted Acrylic Diffuser
HP01- 4' | Silver Hand Painted Acrylic Diffuser
HP02- 4' | Beige Hand Painted Acrylic Diffuser
HP03- 4' | Amber Hand Painted Acrylic Diffuser
HP01- 6' | Silver Hand Painted Acrylic Diffuser
HP02- 6' | Beige Hand Painted Acrylic Diffuser
HP03- 6' | Amber Hand Painted Acrylic Diffuser

MA01
OA

Mounting *

BCE option requires access above the ceiling and uses ceiling coupler (with cable gripper) to mount to electrically nonconductive structure above. Coupler mounts to ceiling using a 3/8" through hole with a maximum structure thickness of 1.25". Excess cable exits ceiling coupler above structure to be connected to Class II power lead (BCE). Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). CEC mounts to two standard 4" octagonal junction boxes and require ceiling access. Please choose one:

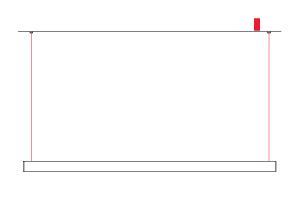

BCE 1 | 1/2" Button Canopy with Energized Cables, Remote Supply

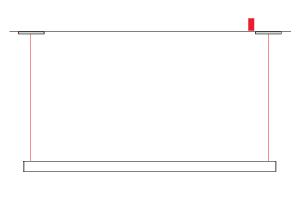

CEC | 5" Canopy with Energized Cables, Remote Supply

1 Button canopy finished as machined aluminum and not painted to match end plates
BCE
CEC

Linear Run

Select this option only for runs longer than 6'.

RUN 2 | Continuous Run
OAL | Specify Length of Run
  ft.

2 For a take-off and pricing, contact factory

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up. When specifying EMR with RUN, the first fixture in the run will be the emergency unit.  If other or different Emergency units are needed, contact factory.  Additional Power feed location will be required to power non-emergency sections.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture. Max OAH is 72”. Consult factory for longer OAHs or see SIP12133 for mounting options with power cord.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
