Pavo 4" & 6" Clusters

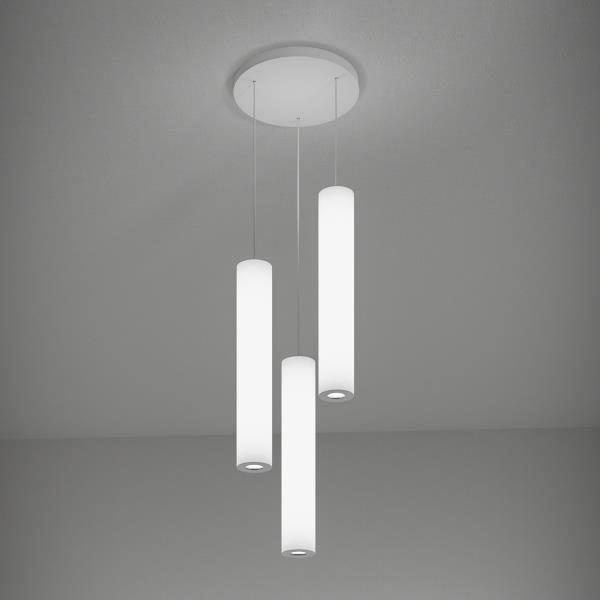

Effortlessly group three Pavo 6" cylinders into a cohesive design element on this single canopy array. The configuration combines the simplicity, clean lines, and balanced luminance that you’re looking for in an ideal luminous form. Designed with meticulous attention to detail, each luminaire is evenly illuminated from top to bottom and radially. Well-finished ends satisfy the highest-end applications. And true to its minimalist design, it has no metal collars to break the form. Alternate sizes and configurations are available upon request.
Pavo 4" & 6" Clusters SIP12201

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • A unified grouping of 3' luminous cylinders
  • Matching bi-planar finish detail on top and bottom maximizes visual appeal from all angles
  • Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
  • 1100lm integral regressed downlight available with beam spread of spot (19°), narrow (35°), and medium (45°)
  • Ambient and downlight components are standard with separate switching and 0-10v dimming
  • Available in either stem or power cord suspension
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  up to 110 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Class 2 power supply integrated in canopy standard; remote optional.  Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING:  1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser available (contact factory)
  • CONSTRUCTION:  Aluminum
  • FINISH:  End plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW, Tunable White, other sizes, or configurations
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

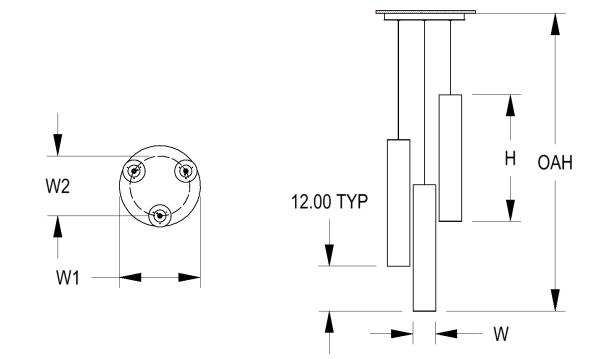

DIMENSIONS

Dimensions
W
6 in
15.2 cm
H
33.9 in
86.1 cm
OAH
85 in
215.9 cm
W1
21 in
53.3 cm
W2
16 in
40.6 cm
Mounting Weight
Approximate: 45 lb (21 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request. Please note, photometry files contain data for single pendants. To create clusters, layer the individual files according to your project’s specification.

(3) L19W | White 57W LED Light Engine

Delivered Lumens: 6,303

(3) L38W | White 114W LED Light Engine

Delivered Lumens: 12,609

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 57.0 - Max 114.0
LU   Min 6327 - Max 12654

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from charts for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90 1

1 Not available in 5000K

Controls *

All controls allow for independent dimming of ambient and downlight components. For wireless options all fixtures in a single cluster are controlled together; contact factory for pricing if individual control of fixtures is required. Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Light Source Option *

If you’re specifying a downlight option, layer the ambient and downlight IES files. Downlight CCT will match the Lamp Options selection above. Please choose one:

(3) 14W-19° Spot | 42W (Total Delivered Lumens: 3,300) Downlight - 19° Beam

(3) 14W-35° Narrow | 42W (Total Delivered Lumens: 3,300) Downlight - 35° Beam

(3) 14W-45° Medium | 42W (Total Delivered Lumens: 3,300) Downlight - 45° Beam

No DL | No Downlight

(3) 14W-19° Spot
(3) 14W-35° Narrow
(3) 14W-45° Medium
No DL

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)

MA01

Mounting *

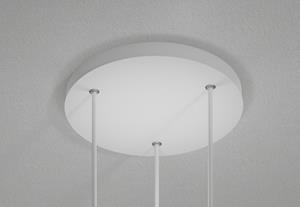

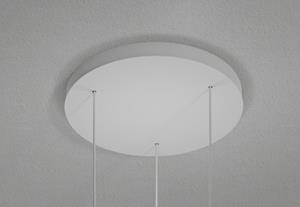

Mounts to standard 4" octagonal junction box with auxiliary mounting holes. Power cord (PSC) is white and is adjustable up to OAH. Stem mounting (PSS) features a 45 degree swivel. Choose a mounting from below:

PSC | 21" Canopy with Power Supply & Power Cord Suspension
PSS | 21" Canopy with Power Supply & Stems

PSC
PSS

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
