FEATURES & BENEFITS
- All visible fasteners are flush mounted, providing a clean design
- Frosted acrylic shield enhances a space with diffused illumination
- Anodized finish provides optimal thermal effectiveness and durable corrosion protection
- Versatile design allows fixture to be mounted in any orientation
- Compliant with Americans with Disabilities Act (ADA) requirements
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- CRI: 80+ (contact factory for 90+)
- LUMEN MAINTENANCE: L80 = >60,000 Hrs at 38°C ambient temperature
- EFFICACY: 82 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- DRIVER: Includes remote Class 2 power supply and enclosure. 36" lead length standard; black power cord standard unless otherwise specified.
- DIMMING: 0-10V controls standard to 1%
- CONSTRUCTION: Extruded aluminum construction provides durable protection for internal components and is recyclable
- FINISH: Housing available in anodized finishes only. Mounting components painted to match.
- MODIFICATIONS: Consult factory for all modification requests; including static LED colors
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Approximate: 25 lb (12 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
Alternative wattages available upon request.
L4W | White 4W LED Light Engine
Delivered Lumens: 328
L7W | White 7W LED Light Engine
Delivered Lumens: 575
L14W | White 14W LED Light Engine
Delivered Lumens: 1,149

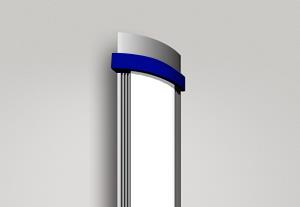

CA01 available to specify a Color Accent for the narrow band between end cap and extrusion.
