FEATURES & BENEFITS
- All visible fasteners are flush mounted, providing a clean design
- Frosted acrylic shield enhances a space with diffused illumination
- Anodized finish provides optimal thermal effectiveness and durable corrosion protection
- Versatile design allows fixture to be mounted in any orientation
- Compliant with Americans with Disabilities Act (ADA) requirements
- Handcrafted in USA
SPECIFICATIONS
- LIGHT SOURCE: White LED light engine
- CRI: 80+or 90+
- LUMEN MAINTENANCE: L80 = >60,000 Hrs at 38°C ambient temperature
- EFFICACY: 82 lm/W delivered
- CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- DRIVER: Includes remote Class 2 power supply and enclosure. 36" lead length standard; black power cord standard unless otherwise specified.
- DIMMING: 0-10V controls standard to 1%
- CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
- EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation. Contact factory for other Emergency options.
- CONSTRUCTION: Extruded aluminum construction provides durable protection for internal components and is recyclable
- FINISH: Housing available in anodized finishes only. Mounting components painted to match.
- MODIFICATIONS: Consult factory for all modification requests; including static LED colors
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

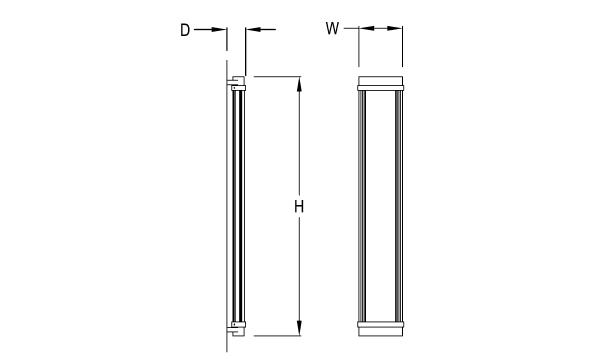

DIMENSIONS
Dimensions
Mounting Weight
Approximate: 25 lb (12 kg)
