Tryg Wall - Wide Lens
SIW11676 49.10 in
Tryg Wall - Wide Lens
Tryg, a low profile LED fixture, offers a unique design and durability suitable for any project. Its creative design acts as an efficient heat sink, maximizing output and life by allowing the LEDs to operate at an optimal temperature. Tryg is suitable for a variety of applications, and its flexible design lends itself to customization and modification.
Tryg Wall - Wide Lens SIW11676

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • All visible fasteners are flush mounted, providing a clean design
  • Frosted acrylic shield enhances a space with diffused illumination
  • Anodized finish provides optimal thermal effectiveness and durable corrosion protection
  • Versatile design allows fixture to be mounted in any orientation
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L80 = >60,000 Hrs at 38°C ambient temperature
  • EFFICACY:  82 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • DRIVER:   Includes remote Class 2 power supply and enclosure. 36" lead length standard; black power cord standard unless otherwise specified.
  • DIMMING:  0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION:  Extruded aluminum construction provides durable protection for internal components and is recyclable
  • FINISH:  Housing available in anodized finishes only. Mounting components painted to match.
  • MODIFICATIONS: Consult factory for all modification requests; including static LED colors
  • APPROVALS:  ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

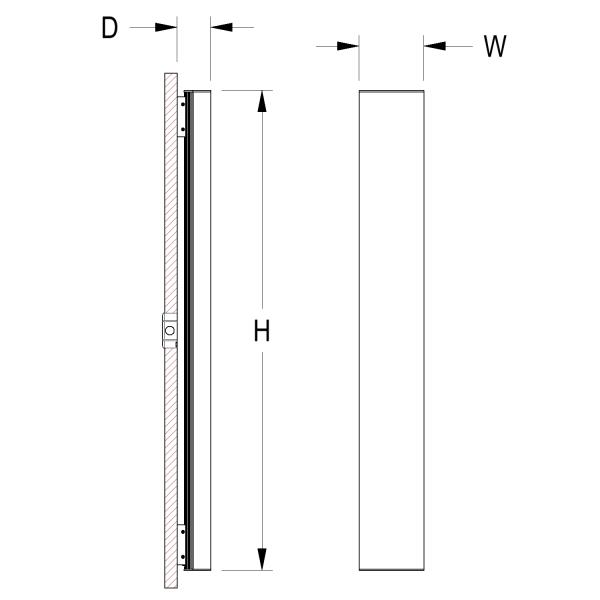

DIMENSIONS

Dimensions
W
7.1 in
18 cm
H
49.1 in
124.7 cm
D
3.8 in
9.7 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

Alternative wattages available upon request.

L16W | White 16W LED Light Engine

Delivered Lumens: 1,454

L28W | White 28W LED Light Engine

Delivered Lumens: 2,545

L56W | White 56W LED Light Engine

Delivered Lumens: 5,090


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Options

Bulkheads are painted to match the anodized finish selected for the housing. To specify a different color, choose Alternate Bulkhead Finish (ABF). If BK03 is specified, accent plates are finished to match bulkheads.

ABF | Alternate Bulkhead Finish
BK03 | Bulkhead with .25" Accent Plate
F | Fusing

ABF
BK03
