SIW12169 2.00 in
Pavo 2" - Wall

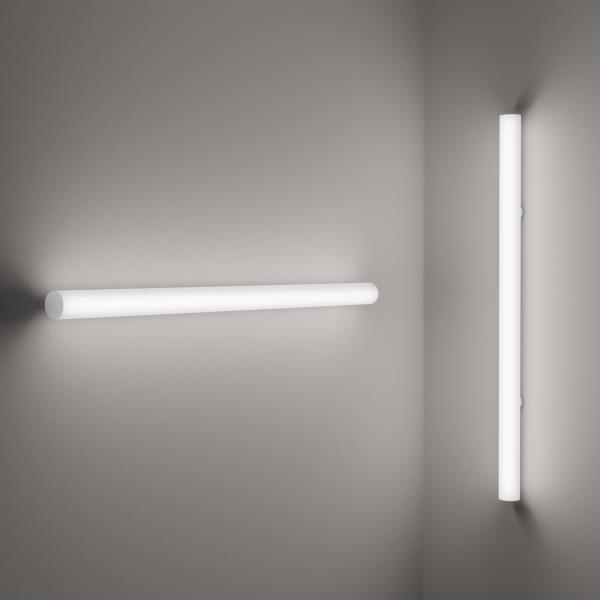

This sleek 2” cylindrical form is a pure expression of light and proof that great design is rooted in simplicity. Pavo 2” Wall is fully illuminated with no housing or metal accents to interrupt its minimalist form. It looks uniform from every angle. Its round diffuser emits a soft gradual display of light on the wall behind the fixture. This low-profile sconce is ADA-compliant and a great choice for hallways, elevator bays, vanities, or anywhere you want to add a simple yet sophisticated line of light. Available in 1' to 6' sizes.
Pavo 2" - Wall SIW12169

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • The design element you've been missing
  • Linearly-lit wall sconce provides even illumination along the entire length of the lens
  • Meticulously designed ends have no visible shadowing
  • Minimal bracketry and hardware for an exceptionally clean look
  • An expression of light in its most basic form
  • Provides functional light, up to 750 lumens per foot, with comfortable luminance levels
  • Pairs well with the entire Pavo family of pendants
  • Mount vertically or horizontally on walls or ceilings
  • Compliant with Americans with Disabilities Act (ADA) requirements
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  107 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Remote or integral Class 2 power supply.  Max distance to the driver is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING:  1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER:  White matte acrylic
  • CONSTRUCTION:  Aluminum and stainless steel
  • FINISH:  Solid flat end plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS:  Consult factory for all modification requests; including different sizes
  • APPROVALS:  ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

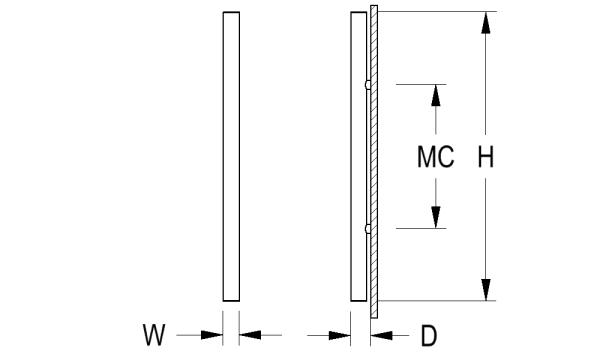

DIMENSIONS

Dimensions
1FT
W
2 in
5.1 cm
H
12 in
30.5 cm
D
2.5 in
6.4 cm
MC
6 in
15.2 cm
Mounting Weight: Approximate: 5 lb (3 kg)
2FT
W
2 in
5.1 cm
H
24 in
61 cm
D
2.5 in
6.4 cm
MC
12 in
30.5 cm
Mounting Weight: Approximate: 5 lb (3 kg)
3FT
W
2 in
5.1 cm
H
36 in
91.4 cm
D
2.5 in
6.4 cm
MC
18 in
45.7 cm
Mounting Weight: Approximate: 5 lb (3 kg)
4FT
W
2 in
5.1 cm
H
48 in
121.9 cm
D
2.5 in
6.4 cm
MC
24 in
61 cm
Mounting Weight: Approximate: 5 lb (3 kg)
5FT
W
2 in
5.1 cm
H
60 in
152.4 cm
D
2.5 in
6.4 cm
MC
30 in
76.2 cm
Mounting Weight: Consult Factory.
6FT
W
2 in
5.1 cm
H
72 in
182.9 cm
D
2.5 in
6.4 cm
MC
36 in
91.4 cm
Mounting Weight: Approximate: 5 lb (3 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

1 FOOT NOMINAL FIXTURE
1FT-L5W | White 5W LED Light Engine

Delivered Lumens: 537

1FT-L7W | White 7W LED Light Engine

Delivered Lumens: 752

CUST_Out_1FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 5.0 - Max 7.0
LU   Min 535 - Max 749
2 FOOT NOMINAL FIXTURE
2FT-L7W | White 7W LED Light Engine

Delivered Lumens: 752

2FT-L14W | White 14W LED Light Engine

Delivered Lumens: 1,504

CUST_Out_2FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 7.0 - Max 14.0
LU   Min 749 - Max 1498
3 FOOT NOMINAL FIXTURE
3FT-L10W | White 10W LED Light Engine

Delivered Lumens: 1,074

3FT-L20W | White 20W LED Light Engine

Delivered Lumens: 2,148

CUST_Out_3FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 10.0 - Max 20.0
LU   Min 1070 - Max 2140
4 FOOT NOMINAL FIXTURE
4FT-L14W | White 14W LED Light Engine

Delivered Lumens: 1,504

4FT-L28W | White 28W LED Light Engine

Delivered Lumens: 3,007

CUST_Out_4FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 14.0 - Max 28.0
LU   Min 1498 - Max 2996
5 FOOT NOMINAL FIXTURE
5FT-L18W | White 18W LED Light Engine

Delivered Lumens: 1,933

5FT-L36W | White 36W LED Light Engine

Delivered Lumens: 3,866

CUST_Out_5FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 18.0 - Max 36.0
LU   Min 1926 - Max 3852
6 FOOT NOMINAL FIXTURE
6FT-L21W | White 21W LED Light Engine

Delivered Lumens: 2,255

6FT-L42W | White 42W LED Light Engine

Delivered Lumens: 4,511

CUST_Out_6FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 21.0 - Max 42.0
LU   Min 2247 - Max 4494

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

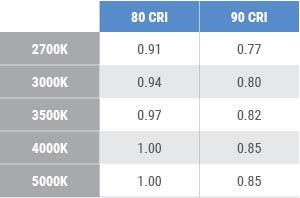

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming
NLTA 1 | Acuity nLight Air, 1% Dimming

1 Not available with REC mounting option.

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)
OA | White Gloss Acrylic Diffuser
HP01- 1' | Silver Hand Painted Acrylic Diffuser
HP02- 1' | Beige Hand Painted Acrylic Diffuser
HP03- 1' | Amber Hand Painted Acrylic Diffuser
HP01- 2' | Silver Hand Painted Acrylic Diffuser
HP02- 2' | Beige Hand Painted Acrylic Diffuser
HP03- 2' | Amber Hand Painted Acrylic Diffuser
HP01- 3' | Silver Hand Painted Acrylic Diffuser
HP02- 3' | Beige Hand Painted Acrylic Diffuser
HP03- 3' | Amber Hand Painted Acrylic Diffuser
HP01- 4' | Silver Hand Painted Acrylic Diffuser
HP02- 4' | Beige Hand Painted Acrylic Diffuser
HP03- 4' | Amber Hand Painted Acrylic Diffuser
HP01- 6' | Silver Hand Painted Acrylic Diffuser
HP02- 6' | Beige Hand Painted Acrylic Diffuser
HP03- 6' | Amber Hand Painted Acrylic Diffuser

MA01
OA

Mounting *

MCS mounting supplied with 8' lead length and 2.25" round goof plates. REC mounting requires a cut-out for the recessed box that measures 1.75" wide by a height calculated as MC plus 3" and a minimum wall cavity depth of 3.5”. Consider wall framing accordingly, as the application requires.

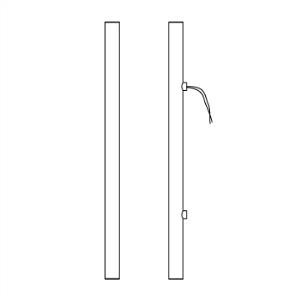

MCS | Invisible Stems, Remote Power Supply

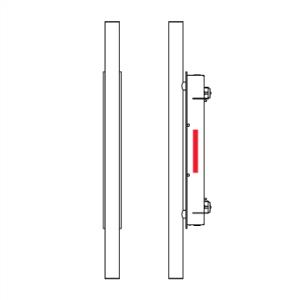

REC | Recessed, Integral Power Supply

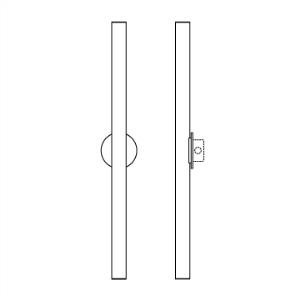

JBC01 2 | 5" Round J-box Cover, Remote Power Supply

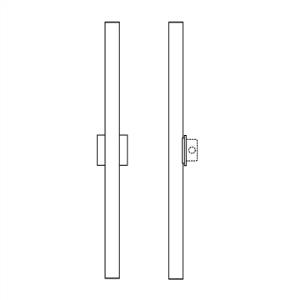

JBC02 2 | 4.3" Square J-box Cover, Remote Power Supply

2 Only available in 1', 2', or 3' sizes
MCS
REC
JBC01
JBC02

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote
