Zynn Lines - Wall
SIW12231 48.00 in
Zynn Lines - Wall

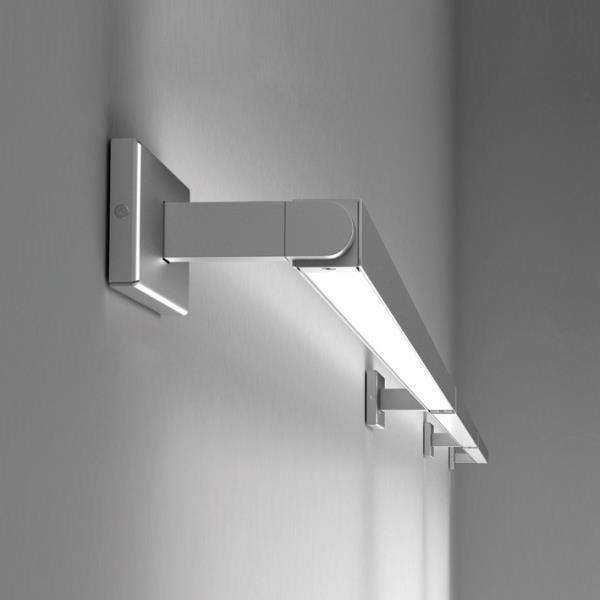

Add a soft, even wash of light to walls or emphasize textures with this versatile wall washer/wall grazer. Zynn Lines can deliver up to 1,260 lumens per foot for full surface illumination. Specify the projection off the wall to achieve the lighting effect you want. The field adjustable housing provides additional options for aiming and control.
Zynn Lines - Wall SIW12231

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Slim 1.25" cross-section
  • Symmetric distribution
  • Lamp body can be rotated up to 330° for application-specific aiming
  • Housing locks into position, enabling precise fixture alignment
  • Compliant with Americans with Disabilities Act (ADA) requirements (standard 4" OAP only)
  • External fasteners are flush mounted, providing a clean design
  • Pairs well with other slimline products in the Zynn family
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 87 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Includes remote Class 2 power supply and enclosure. Continuous runs are supplied with one power supply per fixture.  Max distance to the driver (including OAP) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING: 0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Acrylic frosted lens
  • CONSTRUCTION: Extruded aluminum housing
  • FINISH:  Housing and canopy finished to match. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including other lengths
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

DIMENSIONS

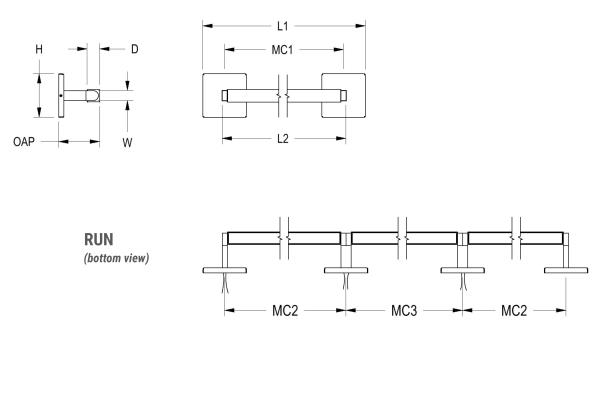

Dimensions
W
1 in
2.5 cm
L1
51.9 in
131.8 cm
L2
48 in
121.9 cm
H
4.4 in
11.2 cm
D
1.3 in
3.3 cm
OAP
4 in
10.2 cm
MC1
47.5 in
120.6 cm
MC2
47.7 in
121.2 cm
MC3
48 in
121.9 cm
Mounting Weight
Approximate: 5 lb (3 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternate wattages available upon request.

L15W | White 15W LED Light Engine

Delivered Lumens: 1,301

L29W | White 29W LED Light Engine

Delivered Lumens: 2,514

L57W | White 57W LED Light Engine

Delivered Lumens: 4,942


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Mounting *

Additional mounting structure and hardware required (by others). LBC mounts to standard octagonal j-box. SBC mounts to a standard switch box. For either mounting, power is run through the arm.

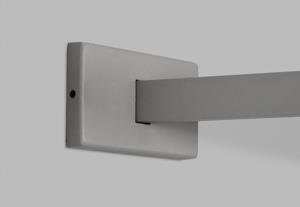

LBC | 4.4" x 4.4" J-Box Cover

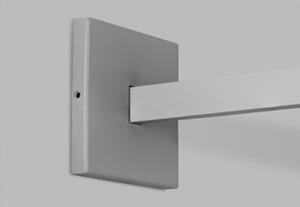

SBC | 4.4" x 2.5" Switch-Box Cover

LBC
SBC

Linear Run

Select this option only for runs longer than 4'. INSTALLATION NOTES: During installation, the contractor is responsible for using the actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run.

RUN | Continuous Run
OAL | Specify Length of Run
  ft.

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up. When specifying EMR with RUN, the first fixture in the run will be the emergency unit.  If other or different Emergency units are needed, contact factory.  Additional Power feed location will be required to power non-emergency sections.

EMR | Emergency Battery Remote

Options

F | Fusing

Other Than Standard Options

Specify overall projection required from wall to the end of the fixture. Up to 18” OAP with no vertical support needed.

OAP | Projection length other than standard
Enter length:   Select a light source

Request a modification
prev
close
