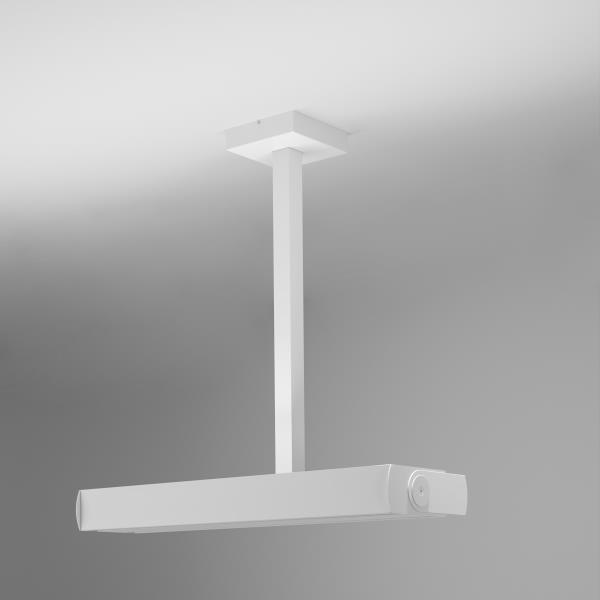

Echo Expanse - Pendant

Echo Expanse is an advanced high output asymmetric lighting tool that lights large spaces more comfortably with indirect light. Designed with the latest in LED technology, it packages high lumen density with exceptional efficacy in a clean, compact form. State-of-the-art asymmetric optics direct light deep into the center of the room. Easily scaled for any project, Echo Expanse is available in a massive range of outputs - from 14,000 to 168,000 lumens. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

Echo Expanse - Pendant

WIRELESS CONTROLS MADE EASY

Effortlessly integrate with the Wireless Controls system that best suits your needs. Simply select from the standard options now available on the spec sheet.

BIGGER LUMEN PACKAGES, BETTER PERFORMANCE

Illuminate your design beautifully with high quality indirect light. Echo Expanse is a powerful and versatile tool that enables you to light from the perimeter with glare-free light.

Available in a massive range of lumen packages, it’s capable of lighting everything from small vestibules to your most expansive spaces.

ADVANCED THERMAL MANAGEMENT

Applying the latest research and thermal image testing, SPI developed a new proprietary heat sink to cool this powerful next generation light engine. The innovative design is proven to keep high power LEDs operating cooler and longer, even in high ambient temp applications.

Not available elsewhere, this heat sink is manufactured entirely from raw materials at our factory in the USA.

HEAT TESTED

Integral up to 40°C (104°F) | Remote up to 50°C (122°F)

SUPERIOR OPTICS

When designing with performance indirect lighting, you want to get as much light from the perimeter to the center of the room as possible. Echo Expanse is built with the latest advancements in optical design for an optimal distribution. Its asymmetric beam reaches deep into the space, for more uniform and even illumination.


You can specify the optical orientation to control which direction the light aims.

DA-0
DA-180
DA-90L
DA-90R

FULL HORIZONTAL CUT-OFF

Take comfort in knowing that you’ve specified a fixture with no glare. Echo Expanse hides the light source from direct view, improving visibility. In fact, it does even better than that. You can tilt the fixture +/-8° and still maintain full horizontal cut-off, as shown in the illustration below.

THE BEST WAY TO LIGHT NATATORIUMS

Exceptional performance, advanced thermal management, and no glare make Echo Expanse a top choice for lighting indoor pools. It’s available with a Natatorium option that adds extra protection from the humidity and corrosive chemical vapors found in these harsh environments. With it, you'll get:

  • Durable aluminum construction
  • Minimum 2 mils powder coat paint to prevent corrosion
  • Fully gasketed and sealed LEDs to keep moisture out
  • Stainless steel fasteners
  • Fully potted power supply(s) that are sealed with epoxy to protect internal components
  • Added surge protection

SPI Lighting is an expert in natatorium lighting. We have designed fixtures to safely illuminate Olympic, competition, school, and community pools for more than 30 years.

MOUNTING OPTIONS

STM1 - Double Stem (1) Canopy
STM2 - Double Stem (2) Canopies
STM3 - Single Rigid Stem
STM4 - Single Stem Angle Mount
