SMALL, POWERFUL, AND PRACTICAL
Lyon’s clean design and versatility make it suitable for many kinds of spaces. With output up to 1,495 lumens per foot delivered, it provides big performance in a small package.
The luminaire’s low-profile housing is engineered to act as an efficient heat-sink, maximizing output and life by allowing the LEDs to operate at optimal temperatures.

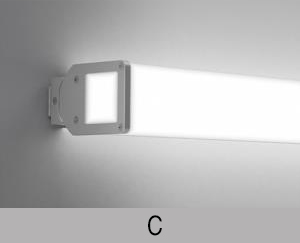

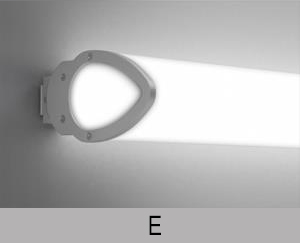

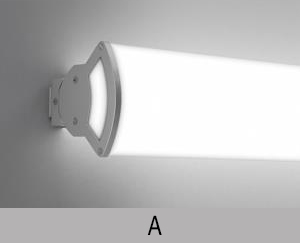

CHOOSE FROM 4 DIFFUSER SHAPES

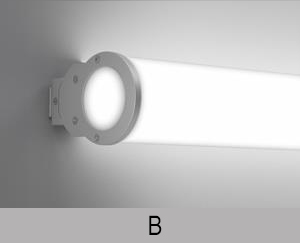

Shown above with Shape B.
FEATURES & BENEFITS
- Configure in a run or mount as an individual fixture
- Housing is engineered to act as an efficient heat sink, maximizing output and life by allowing the LEDs to operate at optimal temperatures
- Up to 1495 lm/foot delivered at high wattage
- Semi-direct distribution of 89% direct/11% indirect
- Anodized finish provides durable corrosion protection

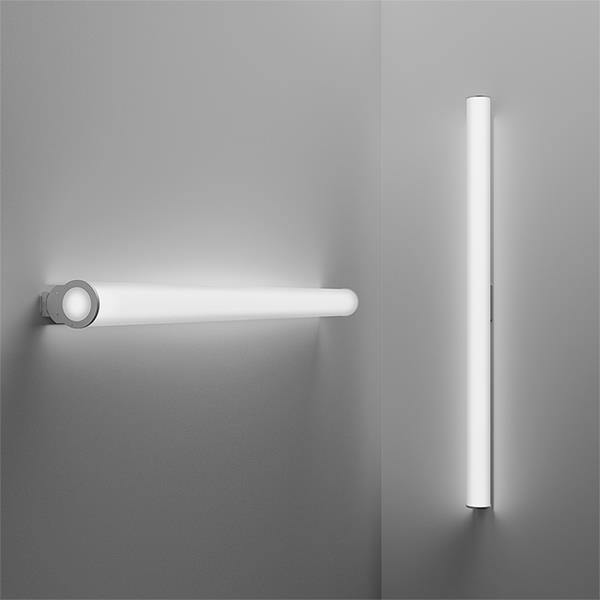

- Versatile design allows fixture to be mounted in any orientation
- Available in low, medium and high wattages
- Provides functional lighting with comfortable luminance levels
- Handcrafted in USA
Previous catalog reference: LEWR.
LINEAR RUNS
Use a combination of 4ft and 8ft lengths to create runs in any length you need.
Contact our applications team at SPIteam@spilighting.com for a complementary lighting layout.
Length (L) |
Mounting Center (MC) |
49.13" |
24.5" |
96.13" |
48.1" |
