NEW! Wood Grain Finishes - see At A Glance

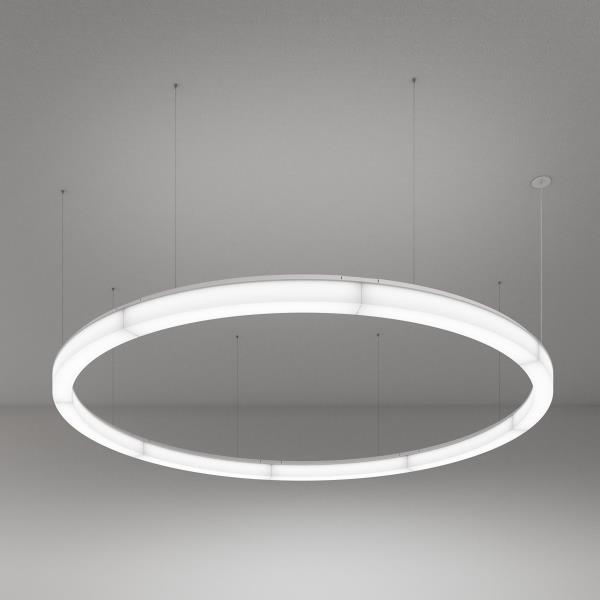

A cornerstone of our luminous forms collection, Novato Ring is renowned for its uniform, three-sided illumination, versatility, and high performance. With efficacy over 100 lumens per watt delivered, it can often be the only light source needed in a space, providing both the aesthetics and the performance you require.

The luminaire’s 5” cross-section is ideal for mid to high ceilings applications. They look great individually or in patterns. We can also help you create interlocking, orbit, and tiered chandeliers. Novato Ring pendants are available in the widest range of sizes on the market – from 2' to 20'. Other sizes are available upon request.

LED
Pendant SIZES
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens
Diameters larger than 60 inches are segmented. Photometrics for Color Band options are available on the product pages.

Novato Ring - Pendant

NEW! CUSTOMIZE YOUR OUTPUT

WIRELESS CONTROLS MADE EASY

Effortlessly integrate with the Wireless Controls system that best suits your needs. Simply select from the standard options available on the spec sheet.

FEATURES & BENEFITS

  • NEW! Wood Grain and Color Band options
  • Designed with integral drivers
  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • 70% direct/30% indirect distribution
  • Provides functional lighting with comfortable luminance levels
  • Specialized high-transmission diffuser offers higher delivered lumens while providing uniform illumination
  • Crisp, clean edges give the shape a clear definition
  • Diffuser available in 5” and 10” heights
  • Add a decorative accent with optional color bands
  • Acoustic panel options available on diameters up to 4’
  • Choose matte opal diffuser or from four fabrics
  • Fabrics are extruded into the acrylic and will not separate from the diffuser - they are washable
  • Monopoint or straight cable mounting options
  • Just one power drop for all sizes!
  • Consult factory for 2”x2” cross-section version
  • Handcrafted in USA

Recommended replacement for: AIP11889

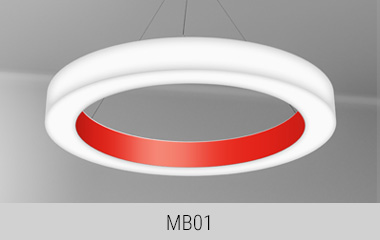

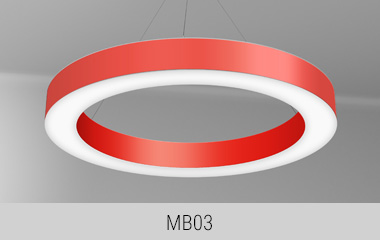

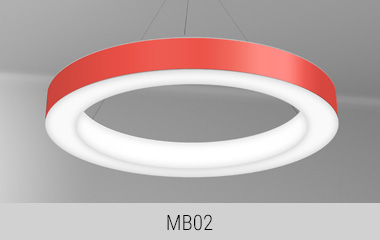

COLOR BANDS

Novato Rings can be further customized by adding optional decorative inner and/or outer color bands. Bands are available in more than 30 painted finishes or can be customized to match your decor.

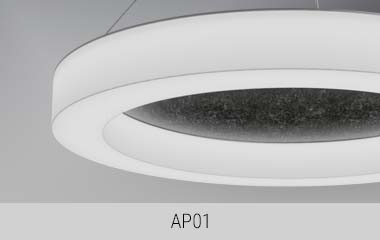

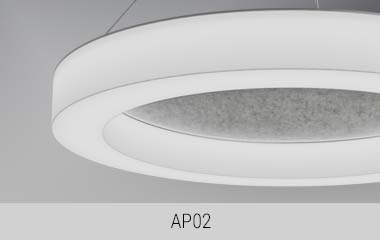

ACOUSTIC PANELS

Just like spaces that are well lit, rooms with good acoustics simply feel right. Conversations are clearer, concentration is easier, and people are happier. Beautifully combine great light output and effective noise reduction by adding acoustic panels to Novato Rings. Choose from two appealing neutrals or ask about our extended color palette. Available on pendants up to 4’ in diameter.





MOUNTING DETAILS

Catalog ID Diameter Segments Aircraft Cables Power Cord
AIP11846 24 in n/a 3 1
AIP11847 36 in n/a 3 1
AIP11848 48 in n/a 3 1
AIP11849 60 in n/a 3 1
AIP11997 72 in 4 4 1
AIP12084 96 in 4 4 1
AIP12099 120 in 8 8 1
