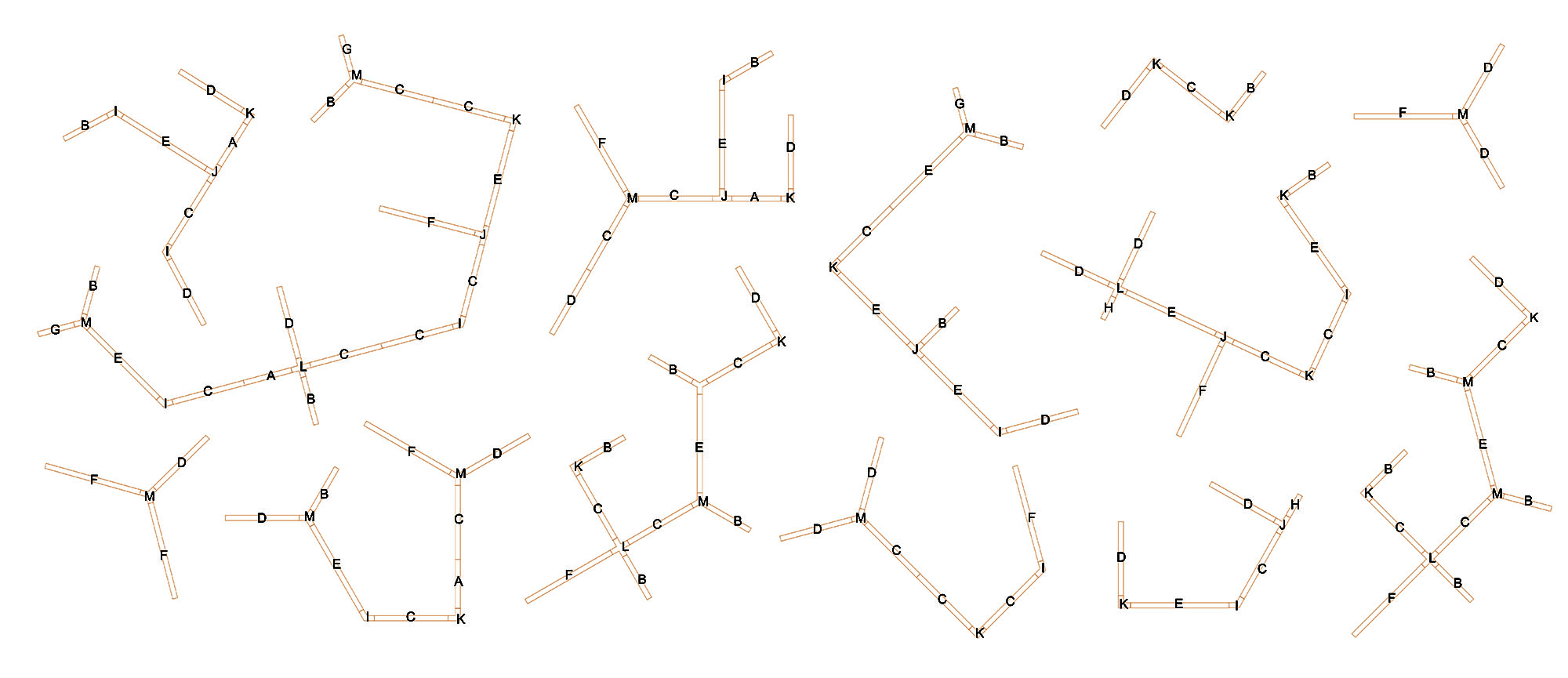

Sample Layout
Sample Layout
Sample Layout


Novato Lines + Arcs: DPR Construction Office

Architect: Little Diversified Architectural Consulting | Lighting Agent: Landreth Inc.

Segments used

Type A: (4) AIP12071 L25W (4ft) 120-227V 35K COM
Type B: (18) AIP12071 L25W (4ft) 120-227V 35K S/E
Type C: (25) AIP12071 L36W (6ft) 120-227V 35K COM
Type D: (20) AIP12071 L36W (6ft) 120-227V 35K S/E
Type E: (13) AIP12071 L47W (8ft) 120-277V 35K COM
Type F: (10) AIP12071 L47W (8ft) 120-227V 35K S/E
Type G: (3) AIP12071 L18W (3ft) 120-227V 35K S/E
Type H: (2) AIP12071 L11W (2ft) 120-227V 35K S/E
Type I: (10) AIP12073 L7W (120 V CONN) 120-227V 35K
Type J: (6) AIP12073 L11W (T CONN) 120-227V 35K
Type K: (15) AIP12073 L7W (L CONN) 120-227V 35K
Type L: (4) AIP12073 L14W (+ CONN) 120-227V 35K
Type M: (13) AIP12073 L11W (120 Y CONN) 120-227V 35K


 To request your complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
