Zynn 3" Lines - Wet/Steam

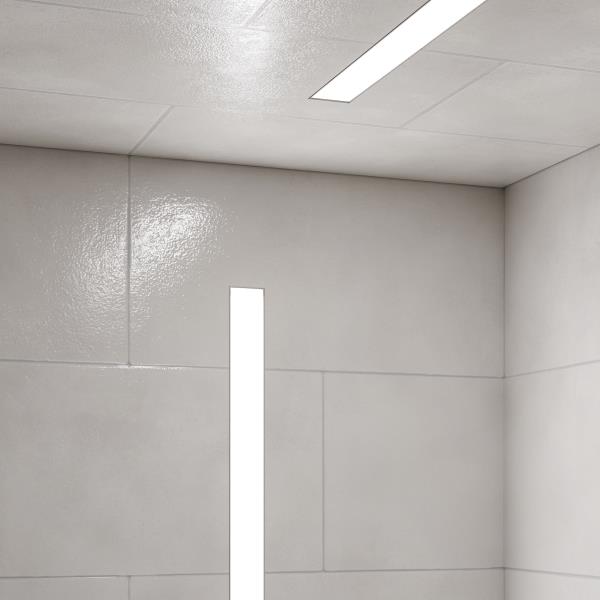

This high-temperature, IP66-rated recessed linear fixture is specially designed for steam rooms and natatoriums. It has an LED light engine that is built to withstand the extreme heat and prolonged moisture exposure in these environments. The housing integrates with the vapor barrier, providing a waterproof seal between the fixture and the surface. Available in 2’ to 8’ standard lengths and continuous runs.
Zynn 3" Lines - Wet/Steam AES12384

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Very high max ambient room temperature rating of 50°C (122°F)
  • Up to 700 lm/foot delivered
  • Mount it vertically or horizontally on ceilings and walls
  • Wide 3" aperture softly diffuses light
  • Uniform illumination with no visible shadowing or view of diodes
  • Recessed mounting is ideal for small spaces
  • Adjustable housing accommodates surfaces from 0.5" to 1.75" thick
  • No visible fasteners give the fixture a clean look
  • Ideal for emergency lighting use with remote power supply
  • Acrylic diffuser resists yellowing
  • Light engine and electronics are fully accessible after installation and designed for easy serviceability
  • Mount individually or create long continuous lines of light
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • INGRESS PROTECTION: IP66
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 50 lm/W delivered
  • CCT: 3000K, 3500K, or 4000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • MAX AMBIENT OPERATING TEMP: 50°C (122°F)
  • MIN AMBIENT OPERATING TEMP: -20°C (-4°F)
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • DIFFUSER: Diffused acrylic
  • EMERGENCY: Emergency battery remote optional
  • CONSTRUCTION: 2', 3', and 4' lengths have a seamless housing and diffuser. 6' and 8' lengths are fabricated in a two-part modular housing and have a seamless diffuser. Housing fabricated from aluminum. Corrosion resistant fasteners.
  • FINISH: Finish tile edge is finished to your specification. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including alternate lengths or remote drivers
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in wet locations. Not rated for Insulation Contact.

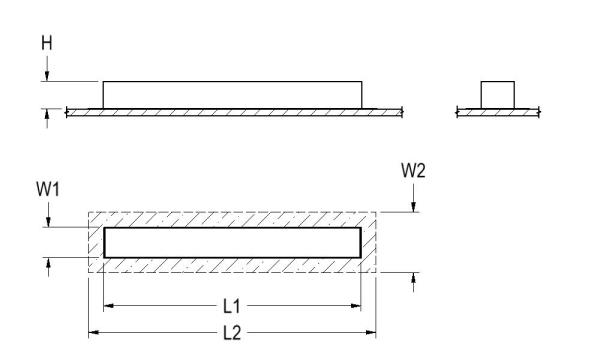

DIMENSIONS

Dimensions
2FT
L1
24 in
61 cm
L2
27.2 in
69.1 cm
H
3.5 in
8.9 cm
W1
3.1 in
7.9 cm
W2
6.3 in
16 cm
Mounting Weight: Approximate: 10 lb (5 kg)
3FT
L1
36 in
91.4 cm
L2
39.2 in
99.6 cm
H
3.5 in
8.9 cm
W1
3.1 in
7.9 cm
W2
6.3 in
16 cm
Mounting Weight: Approximate: 15 lb (7 kg)
4FT
L1
48 in
121.9 cm
L2
51.2 in
130 cm
H
3.5 in
8.9 cm
W1
3.1 in
7.9 cm
W2
6.3 in
16 cm
Mounting Weight: Approximate: 15 lb (7 kg)
6FT
L1
72 in
182.9 cm
L2
75.2 in
191 cm
H
3.5 in
8.9 cm
W1
3.1 in
7.9 cm
W2
6.3 in
16 cm
Mounting Weight: Approximate: 25 lb (12 kg)
8FT
L1
96 in
243.8 cm
L2
99.2 in
252 cm
H
3.5 in
8.9 cm
W1
3.1 in
7.9 cm
W2
6.3 in
16 cm
Mounting Weight: Approximate: 30 lb (14 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

2 FOOT NOMINAL FIXTURE
2FT-L14W | White 14W LED Light Engine

Delivered Lumens: 700

2FT-L28W | White 28W LED Light Engine

Delivered Lumens: 1,400

3 FOOT NOMINAL FIXTURE
3FT-L21W | White 21W LED Light Engine

Delivered Lumens: 1,050

3FT-L42W | White 42W LED Light Engine

Delivered Lumens: 2,100

4 FOOT NOMINAL FIXTURE
4FT-L28W | White 28W LED Light Engine

Delivered Lumens: 1,400

4FT-L56W | White 56W LED Light Engine

Delivered Lumens: 2,800

6 FOOT NOMINAL FIXTURE
6FT-L42W | White 42W LED Light Engine

Delivered Lumens: 2,100

6FT-L84W | Whtie 84W LED Light Engine

Delivered Lumens: 4,200

8 FOOT NOMINAL FIXTURE
8FT-L56W | White 56W LED Light Engine

Delivered Lumens: 2,800

8FT-L112W | White 112W LED Light Engine

Delivered Lumens: 5,600


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

2700K | 2700K CCT
3000K 1 | 3000K CCT
3500K 2 | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

CRI *

DF_80 | (default)
90

Mounting *

Fits within a 3.5" deep wall/ceiling cavity. The position of the fixture adjusts within the housing to ensure a flush mount with any thickness surface (up to 1.75").

DF_REC | Trimless Recessed Mount with Tile-in Flange (default)

Linear Run

Runs have a 1/8" expansion gap between diffusers. The light is continuous.

RUN | Continuous Run
OAL | Specify Length of Run
  ft.

Options

When the NAT option is selected, you can feel confident that the luminaire specified is designed with high-quality materials that will withstand the corrosive environment of indoor pools. Electrical components are protected from moisture and the fixture has been tested to operate in warm ambient temperatures.

NAT | Natatorium Construction
F | Fusing
