AIP12071 5.00 in
Novato Lines + Arcs
These architectural building blocks are fundamental design tools that enable endless expression of your lighting ideas to meet specific customer requirements. Available in 2', 3', 4', 6', and 8' lengths, Novato Lines deliver illumination tailored to fit each unique space. Whether a simple luminous line is needed or a complex pattern combining luminous angles, this lighting provides limitless possibilities. Pair with Novato Arcs and connectors for even more options. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

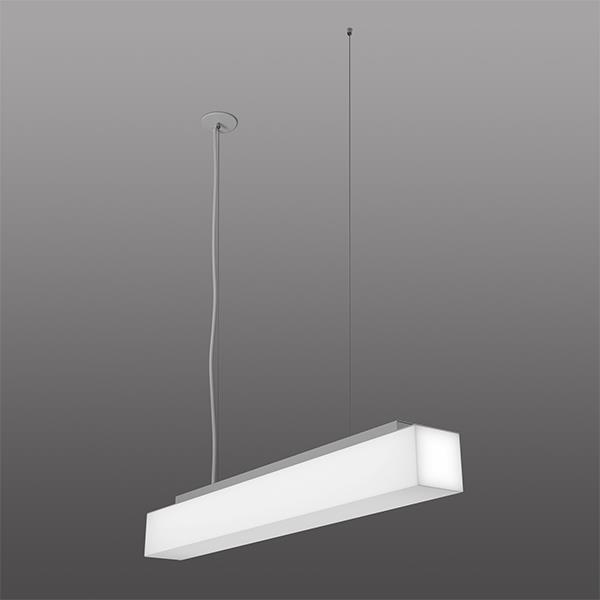

Novato Lines + Arcs AIP12071

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • Provides functional lighting with comfortable luminance levels
  • Matte acrylic diffuser emanates filtered, uniform illumination with higher light transmission than traditional opal acrylic
  • Strong lines yield a distinctive visual presence
  • Ideal for separating open offices, providing wayfinding, or adding markings
  • Up to 550' of continuous light with just one power drop
  • Maneuvers easily around obstructions
  • Easy daisy chain wiring simplifies installation
  • Luminous Arcs (AIP12072) and Connectors (AIP12073) are ordered separately
  • Materials, cross-section, and product details match the entire Novato Family; expand your drawer of design tools using matching pieces
  • Handcrafted in USA, BABA Compliant

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 104 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply. Power drop kit required for each continuous run of fixtures; see catalog CPS12153 to order. Connect power drops anywhere along the run.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • CONSTRUCTION: Powerful magnetic connections strengthen joints
  • FINISH: The top plate and channel are painted PT01 (Signal White, RAL9003)
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

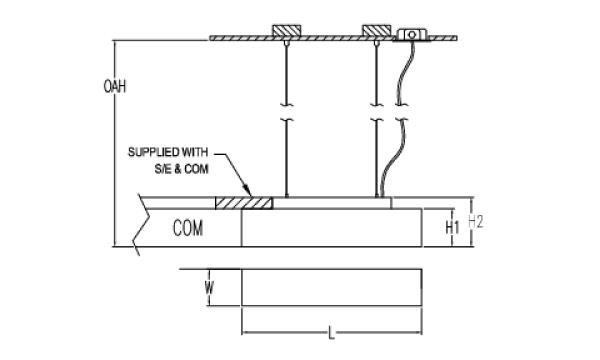

DIMENSIONS

Dimensions
2FT
W
5 in
12.7 cm
L
24 in
61 cm
OAH
48 in
121.9 cm
H1
5.1 in
13 cm
H2
6.6 in
16.8 cm
Mounting Weight: Approximate: 5 lb (3 kg)
3FT
W
5 in
12.7 cm
L
36 in
91.4 cm
OAH
48 in
121.9 cm
H1
5.1 in
13 cm
H2
6.6 in
16.8 cm
Mounting Weight: Approximate: 5 lb (3 kg)
4FT
W
5 in
12.7 cm
L
48 in
121.9 cm
OAH
48 in
121.9 cm
H1
5.1 in
13 cm
H2
6.6 in
16.8 cm
Mounting Weight: Approximate: 5 lb (3 kg)
6FT
W
5 in
12.7 cm
L
72 in
182.9 cm
OAH
48 in
121.9 cm
H1
5.1 in
13 cm
H2
6.6 in
16.8 cm
Mounting Weight: Approximate: 10 lb (5 kg)
8FT
W
5 in
12.7 cm
L
96 in
243.8 cm
OAH
48 in
121.9 cm
H1
5.1 in
13 cm
H2
6.6 in
16.8 cm
Mounting Weight: Approximate: 10 lb (5 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

2 FOOT NOMINAL FIXTURE
2FT-L10W | White 10W LED Light Engine

Delivered Lumens: 1,041

2FT-L20W | White 20W LED Light Engine

Delivered Lumens: 2,082

CUST_Out_2FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 10.0 - Max 20.0
LU   Min 1041 - Max 2082
3 FOOT NOMINAL FIXTURE
3FT-L15W | White 15W LED Light Engine

Delivered Lumens: 1,562

3FT-L30W | White 30W LED Light Engine

Delivered Lumens: 3,123

CUST_Out_3FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 15.0 - Max 30.0
LU   Min 1562 - Max 3123
4 FOOT NOMINAL FIXTURE
4FT-L20W | White 20W LED Light Engine

Delivered Lumens: 2,082

4FT-L40W | White 40W LED Light Engine

Delivered Lumens: 4,164

CUST_Out_4FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 20.0 - Max 40.0
LU   Min 2082 - Max 4164
6 FOOT NOMINAL FIXTURE
6FT-L31W | White 31W LED Light Engine

Delivered Lumens: 3,227

6FT-L62W | White 62W LED Light Engine

Delivered Lumens: 6,454

CUST_Out_6FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 31.0 - Max 62.0
LU   Min 3227 - Max 6454
8 FOOT NOMINAL FIXTURE
8FT-L40W | White 40W LED Light Engine

Delivered Lumens: 4,164

8FT-L81W | White 81W LED Light Engine

Delivered Lumens: 8,432

CUST_Out_8FT| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 40.0 - Max 81.0
LU   Min 4164 - Max 8432

Voltage *

120-277V | Universal Voltage

Lamp Options *

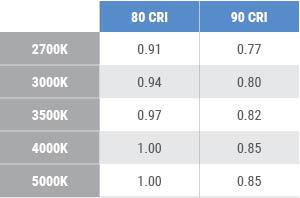

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming
NLTA 1 | Acuity nLight Air, 1% Dimming

1 Contact factory for complimentary layout including controls package.

Mounting *

For mounting center information, go to https://www.spilighting.com/AIP12071 > Downloads > Install Sheets. Power drop canopy mounts to standard 4" octagonal junction box. Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. See Downloads on website for mounting center measurements. Aircraft cable suspension uses ceiling coupler to mount to structure above. Coupler accepts 1/4-20 threaded rod or can be anchored using through hole (hardware by others). INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run.

DF_AC | Aircraft Cable (default)

Emergency

EMR is provided with a remote 10W, constant power battery back-up, for 90 Minutes of emergency operation, in a damp listed enclosure. EMC option if for direct connection to alternate emergency circuit (EM power By Others). All EM options in common section are provided with pass through wiring for normal power circuit within the configuration.

EMC | Emergency Circuit
EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH

Configuration *

Standalone pendants ship with two aircraft cables and include a power drop kit; ends are not magnetized. Start/End units feature one magnetized end and ship with two aircraft cables and one connector splice box. Common units feature two magnetized ends and ship with two aircraft cables and one connector splice box. Start/End and Common units do not include a power drop kit; see catalog CPS12153 to order.

COM 2 | Common
SAP | Standalone Pendant
S/E 2 | Start/End

2 Excludes power drop kit; see catalog ID CPS12153 to order
