Novato Lines + Arcs
Novato Lines + Arcs
Novato Lines + Arcs
Novato Lines + Arcs
Novato Lines + Arcs

These architectural building blocks are fundamental design tools that enable endless expression of your lighting ideas to meet specific customer requirements. Novato Lines + Arcs deliver illumination tailored to fit each unique space.

Whether a simple luminous line is needed or a complex pattern combining luminous angles and sweeping curves, this lighting provides limitless possibilities.



LED
Pendant SIZES
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens
Power drop kit required for each continuous run of fixtures; see catalog CPS12153 to order.

Pendant SIZES
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens
Power drop kit required for each continuous run of fixtures; see catalog CPS12153 to order.

Pendant SIZES
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens

120° V CONN
6
12

120° Y CONN
9
18

L CONN
8
16

T CONN
12
24
Power drop kit required for each continuous run of fixtures; see catalog CPS12153 to order.

LUMEN DATA
Spec Sheet
Size
Wattage
Lumens

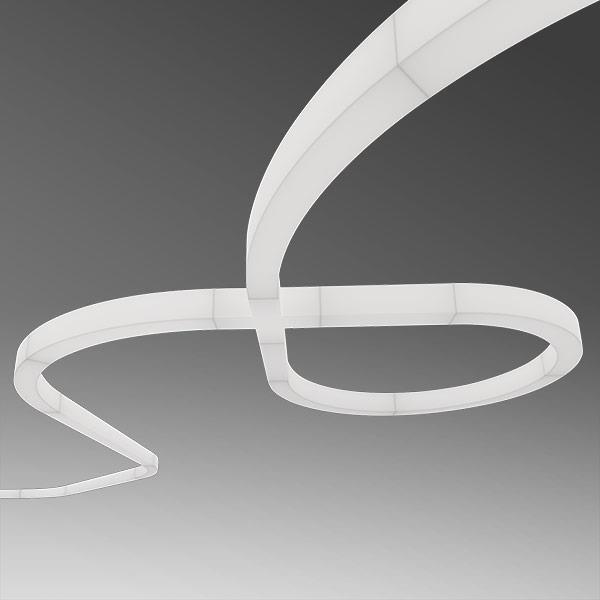

Novato Lines + Arcs

CREATE ENDLESS DESIGNS WITH MAGNETIC, MODULAR SEGMENTS

These fully-enclosed three-sided luminous forms brighten horizontal and vertical planes. They provide functional lighting with comfortable luminance levels. Strong lines yield a distinctive visual presence. The luminaires are ideal for separating open offices, providing wayfinding, or adding markings. Mix and match with the entire Novato family.



config



UP TO 550' OF CONTINUOUS LIGHT WITH JUST ONE POWER DROP

Integral power supplies simplify electrical requirements, meaning most runs will need a single power drop. Moreover, Novato Lines + Arcs are designed to minimize hanging hardware, delivering an exceptionally clean ceiling plane. Powerful magnetic connections make connecting fixtures a snap, while easy daisy chain wiring expedites installation.


For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

POWERFUL MAGNETIC CONNECTIONS

Expedite installation, strengthen joints, and virtually eliminate gaps between fixtures with this innovative joining mechanism. Furthermore, contractors no longer need to remove the top plate to fasten fixtures together, protecting sensitive LEDs from exposure. See how it works:

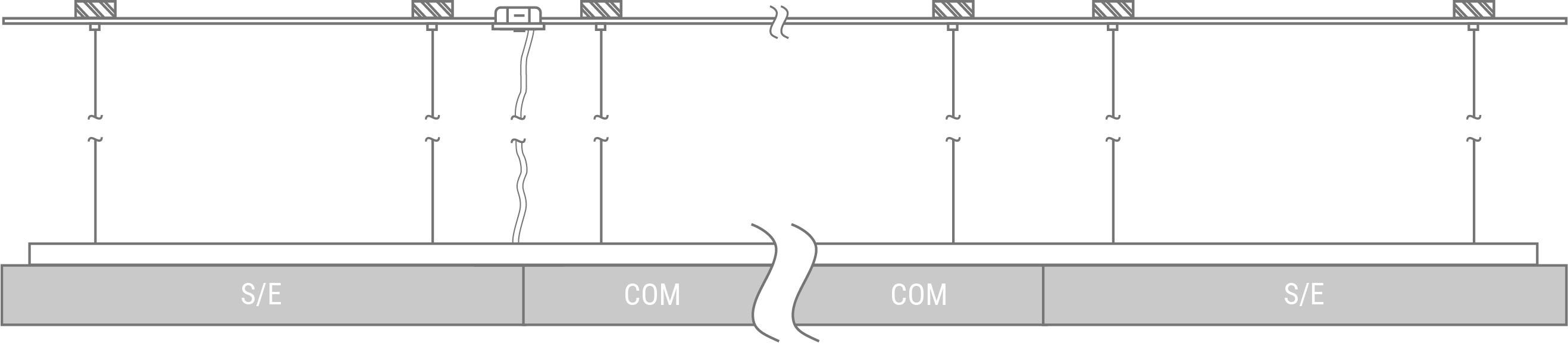

MAXIMIZE YOUR FLEXIBILITY

Position the power drop at a mounting point or anywhere along the run.



CONFIGURATION OPTIONS

  Magnets Aircraft Cables Power Drop & Canopy Connector Splice Box
Standalone Pendant None 2 Yes 0
Start/End One End 2 No
(see CPS12153 to order)
1
Common Both Ends 2 No
(see CPS12153 to order)
1
Connectors All Ends 1 No
(see CPS12153 to order)
1

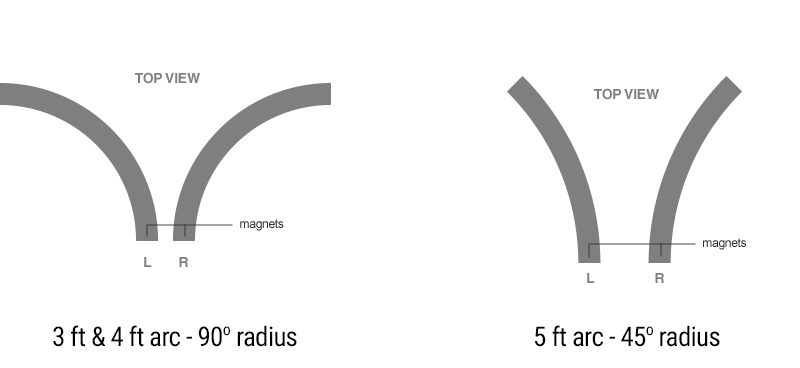

TWO OPTIONS OF START/END ARCS



CLEAN, STREAMLINED DESIGN

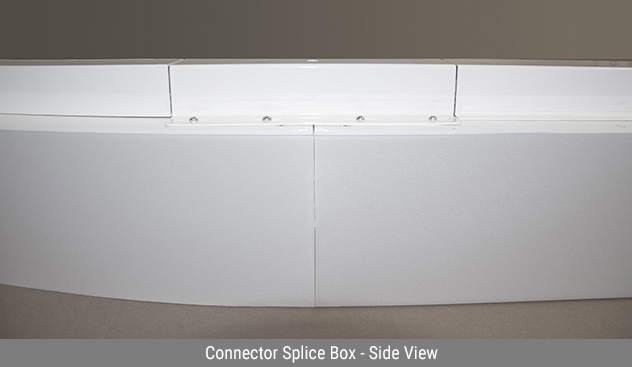

Integral power supplies are located in the channel that runs on top of Novato Lines + Arcs. When designing runs, connector splice boxes are provided to ensure smooth, continuous transitions between fixtures, as shown below. Plus, these enclosures conceal wiring and provide a secure mechanical connection that locks luminaires together.
