AIP12073 5.00 in
Novato Lines + Arcs
These architectural building blocks are fundamental design tools that enable endless expression of your lighting ideas to meet specific customer requirements. Paired with Novato Lines + Arcs, these connectors deliver illumination tailored to fit each unique space. Whether a simple luminous line is needed or a complex pattern combining luminous angles and sweeping curves, this lighting provides limitless possibilities. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

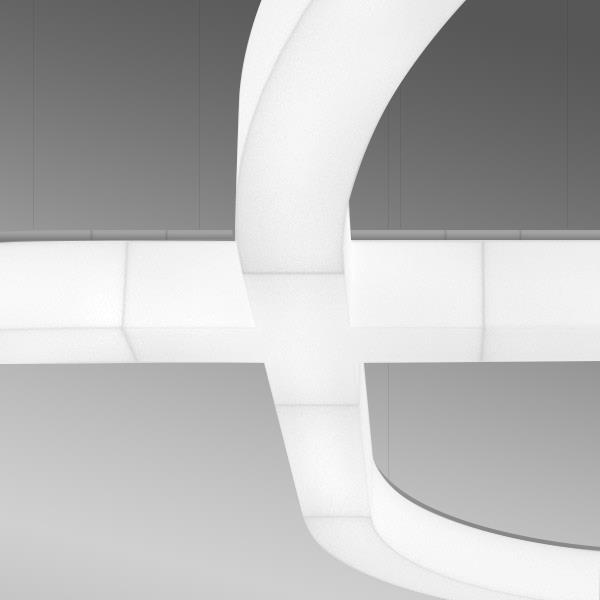

Novato Lines + Arcs AIP12073

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Designed for use with Novato Lines + Arcs which are ordered separately; see catalog ID AIP12071 and AIP12072
  • Fully enclosed three-sided luminous form brightens horizontal and vertical planes
  • Provides functional lighting with comfortable luminance levels
  • Matte acrylic diffuser emanates filtered, uniform illumination with higher light transmission than traditional opal acrylic
  • Strong lines yield a distinctive visual presence
  • Ideal for separating open offices, providing wayfinding or adding markings
  • Up to 550' of continuous light with just one power drop
  • Maneuvers easily around obstructions
  • Easy daisy chain wiring simplifies installation
  • Materials, cross-section, and product details match the entire Novato Family; expand your drawer of design tools using matching pieces
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 104 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Integral Class 2 power supply. Power drop kit required for each continuous run of fixtures; see catalog CPS12153 to order. Connect power drops anywhere along the run.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • CONSTRUCTION: Powerful magnetic connections strengthen joints
  • FINISH: The top plate and channel are painted PT01 (Signal White, RAL9003)
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

DIMENSIONS

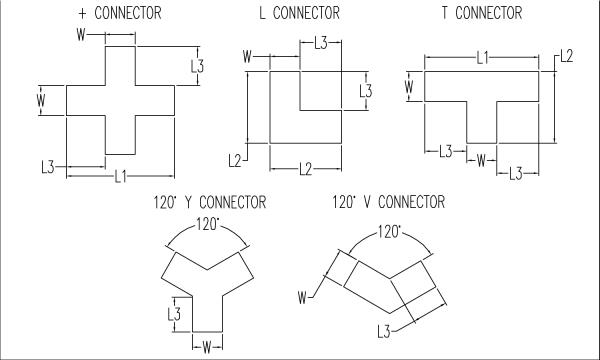

Dimensions
+ CONN
W
5 in
12.7 cm
L1
19 in
48.3 cm
L3
7 in
17.8 cm
OAH
48 in
121.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
L CONN
W
5 in
12.7 cm
L2
12 in
30.5 cm
L3
7 in
17.8 cm
OAH
48 in
121.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
T CONN
W
5 in
12.7 cm
L1
19 in
48.3 cm
L2
12 in
30.5 cm
L3
7 in
17.8 cm
OAH
48 in
121.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
120° V CONN
W
5 in
12.7 cm
L3
7 in
17.8 cm
OAH
48 in
121.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
120° Y CONN
W
5 in
12.7 cm
L3
7 in
17.8 cm
OAH
48 in
121.9 cm
Mounting Weight: Approximate: 5 lb (3 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

T CONNECTOR
T CONN-L11W | White 11W LED Light Engine

Delivered Lumens: 1,145

T CONN-L22W | White 22W LED Light Engine

Delivered Lumens: 2,290

L CONNECTOR
L CONN-L8W | White 8W LED Light Engine

Delivered Lumens: 833

L CONN-L14W | White 14W LED Light Engine

Delivered Lumens: 1,457

+ CONNECTOR
+ CONN-L13W | White 13W LED Light Engine

Delivered Lumens: 1,353

+ CONN-L25W | White 25W LED Light Engine

Delivered Lumens: 2,603

120° Y CONNECTOR
120° Y CONN-L8W | White 8W LED Light Engine

Delivered Lumens: 833

120° Y CONN-L16W | White 16W LED Light Engine

Delivered Lumens: 1,666

120° V CONNECTOR
120° V CONN-L6W | White 6W LED Light Engine

Delivered Lumens: 625

120° V CONN-L11W | White 11W LED Light Engine

Delivered Lumens: 1,145


Voltage *

120-277V | Universal Voltage

Lamp Options *

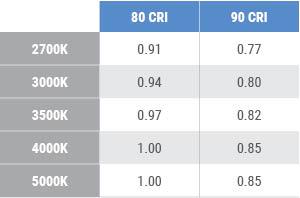

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR 1 | Lutron Athena Wireless Node, 1% Dimming
NX 1 | Current NX Wireless, 1% Dimming
NLTA 1 | Acuity nLight Air, 1% Dimming

1 Contact factory for complimentary layout including controls package.

Mounting *

For mounting center information, go to https://www.spilighting.com/AIP12073 > Downloads > Install Sheets. Power drop canopy mounts to standard 4" octagonal junction box. Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. See Downloads on website for mounting center measurements. Aircraft cable suspension uses ceiling coupler to mount to structure above. Coupler accepts 1/4-20 threaded rod or can be anchored using through hole (hardware by others). INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run. All ends of Connectors are magnetized. Units ship with one aircraft cable and one connector splice box. Connectors do not include a power drop kit; see catalog ID CPS12153 to order.

DF_AC | Aircraft Cable (default)

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next

Novato Lines - Wayfinding Concept

<< BACK TO THUMBNAILS
Novato Lines - Wayfinding Concept
image 1 of 58

Novato Lines - Conference Table Concept

<< BACK TO THUMBNAILS
Novato Lines - Conference Table Concept
image 2 of 58

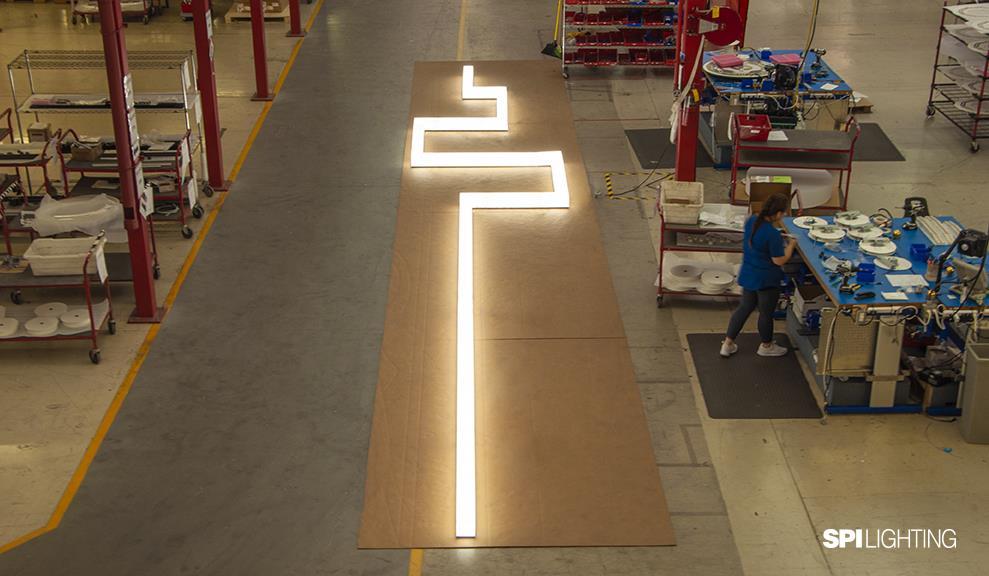

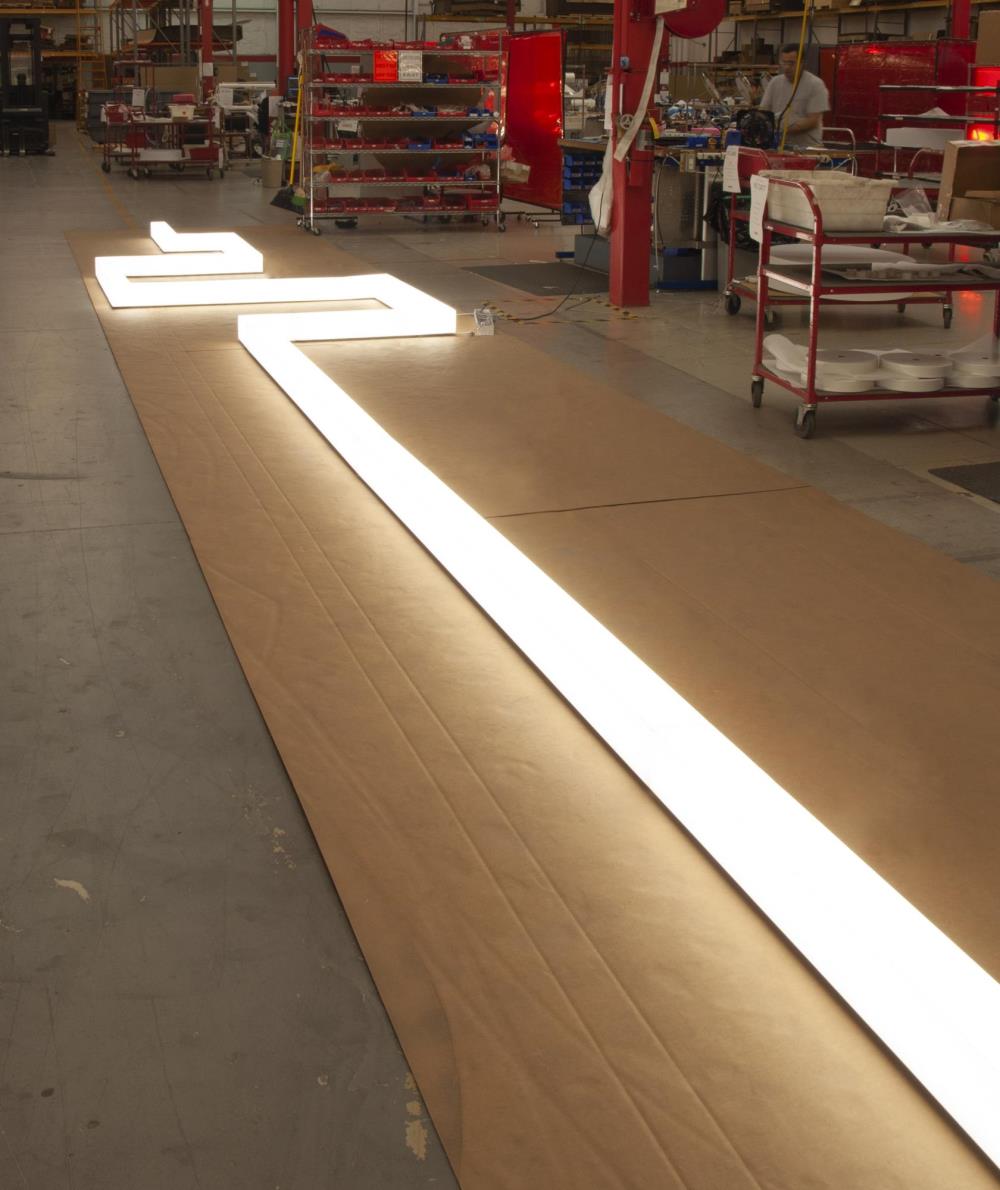

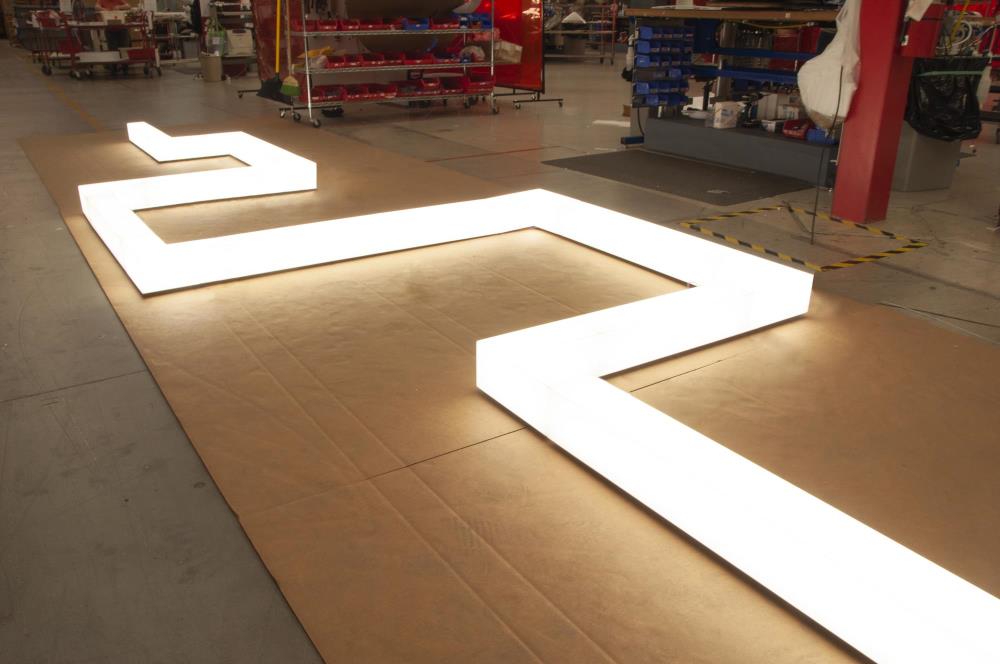

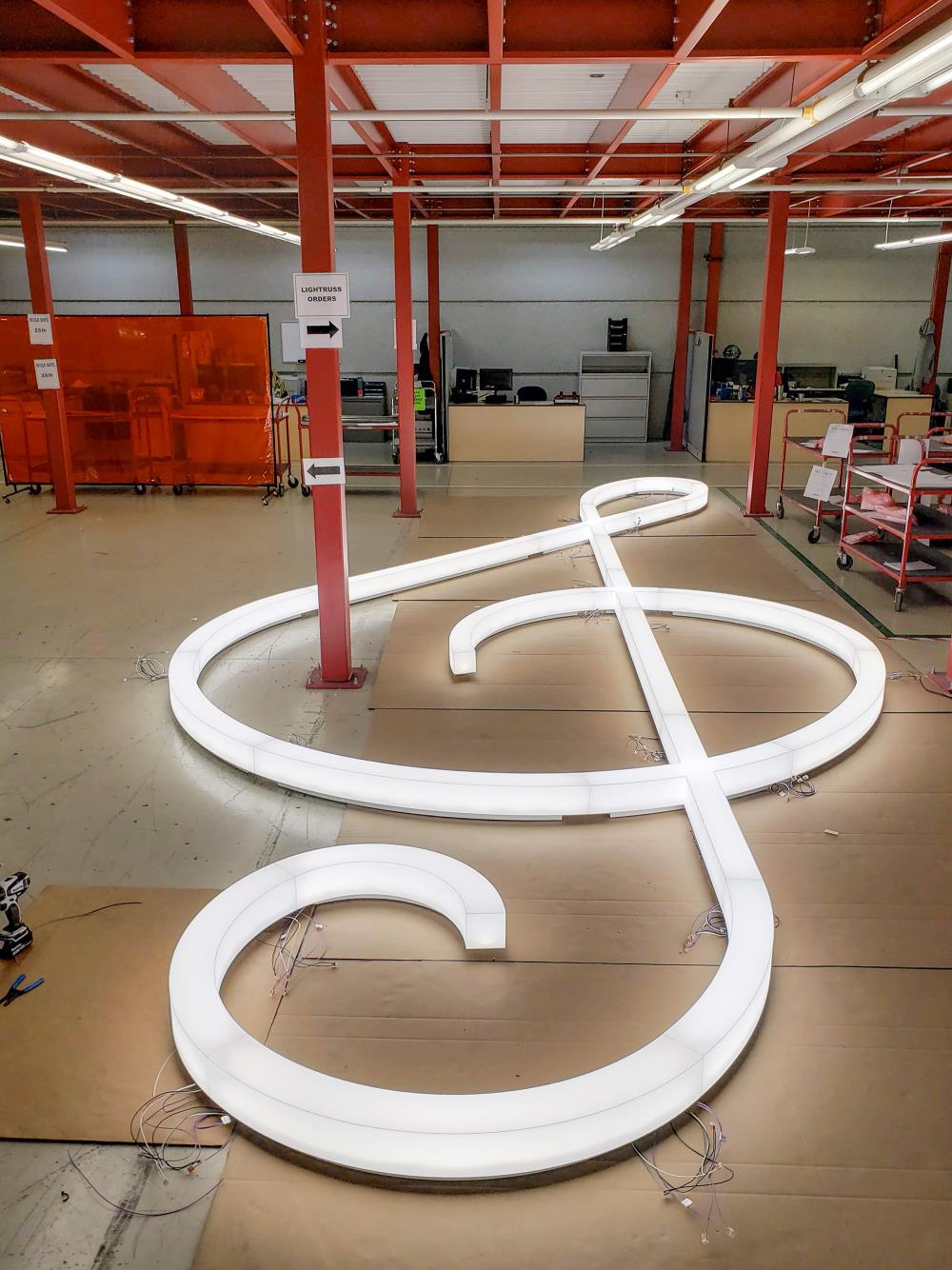

Novato Lines + Connectors - SPI Warehouse
Emilee Richter | SPI Lighting

<< BACK TO THUMBNAILS
Novato Lines + Connectors - SPI Warehouse
image 3 of 58

Novato Lines + Connectors - SPI Warehouse
Emilee Richter | SPI Lighting

<< BACK TO THUMBNAILS
Novato Lines + Connectors - SPI Warehouse
image 4 of 58

Novato Lines + Connectors - SPI Warehouse
Emilee Richter | SPI Lighting

<< BACK TO THUMBNAILS
Novato Lines + Connectors - SPI Warehouse
image 5 of 58

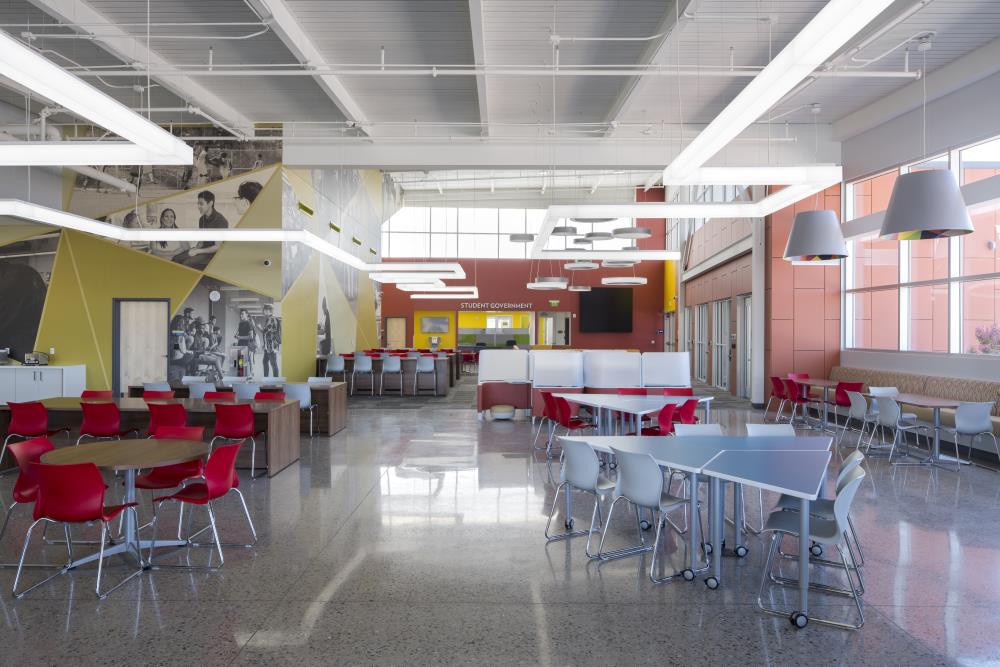

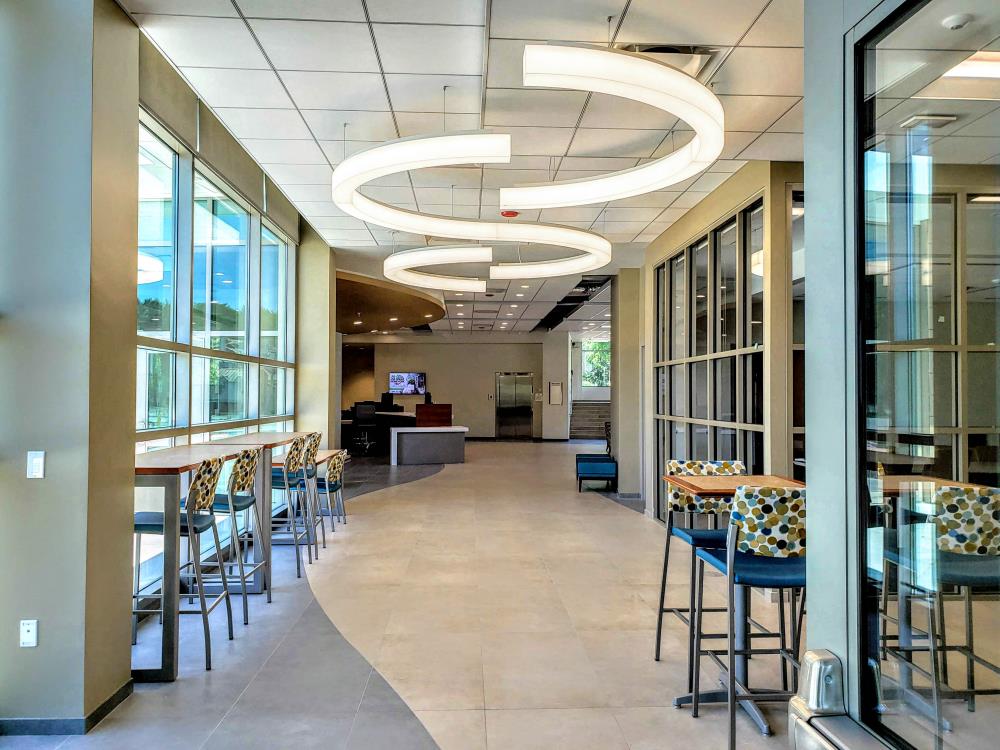

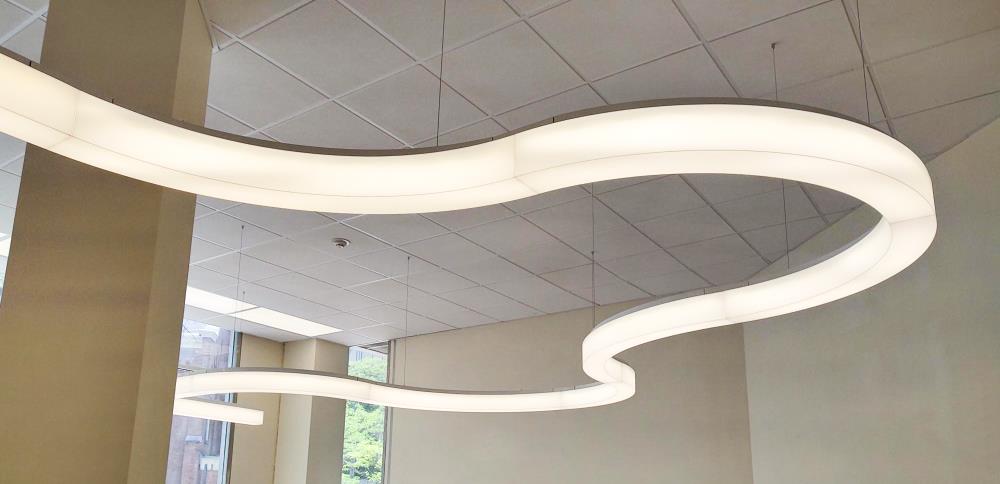

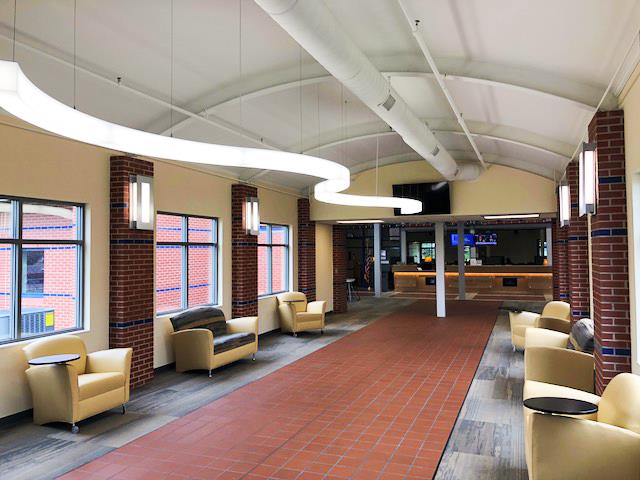

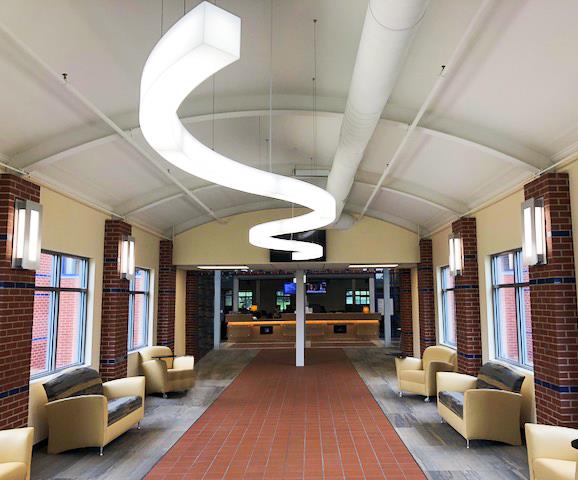

Novato Lines + Arcs - Kirtland College
Lighting Designer: Form & Function

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Kirtland College
image 6 of 58

Novato Lines + Arcs - Kirtland College
Lighting Designer: Form & Function

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Kirtland College
image 7 of 58

Novato Lines + Arcs - Kirtland College
Lighting Designer: Form & Function

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Kirtland College
image 8 of 58

Novato Lines + Arcs - Kirtland College
Lighting Designer: Form & Function

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Kirtland College
image 9 of 58

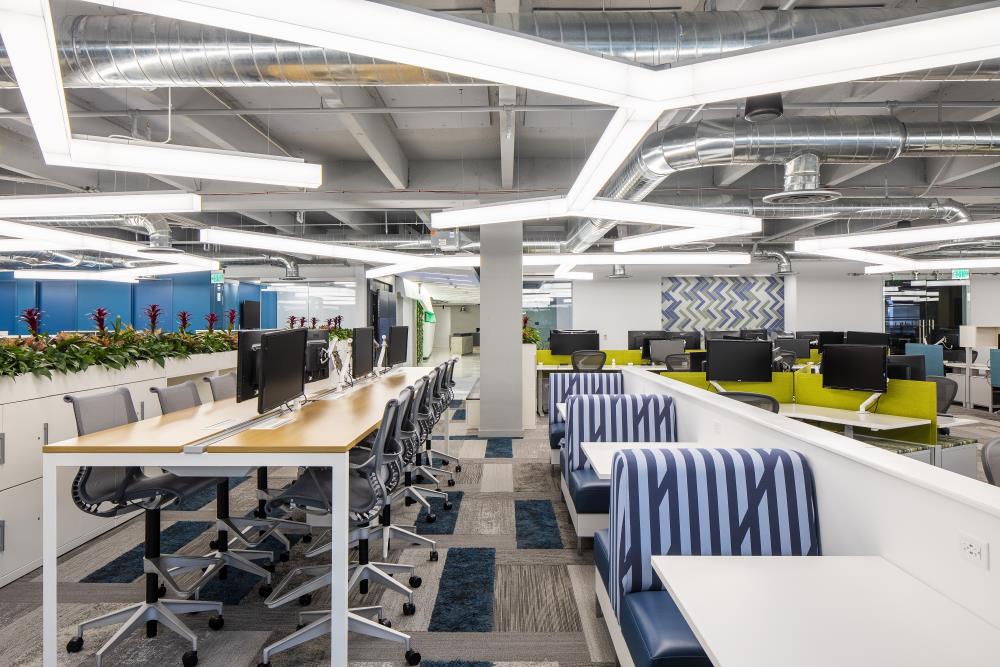

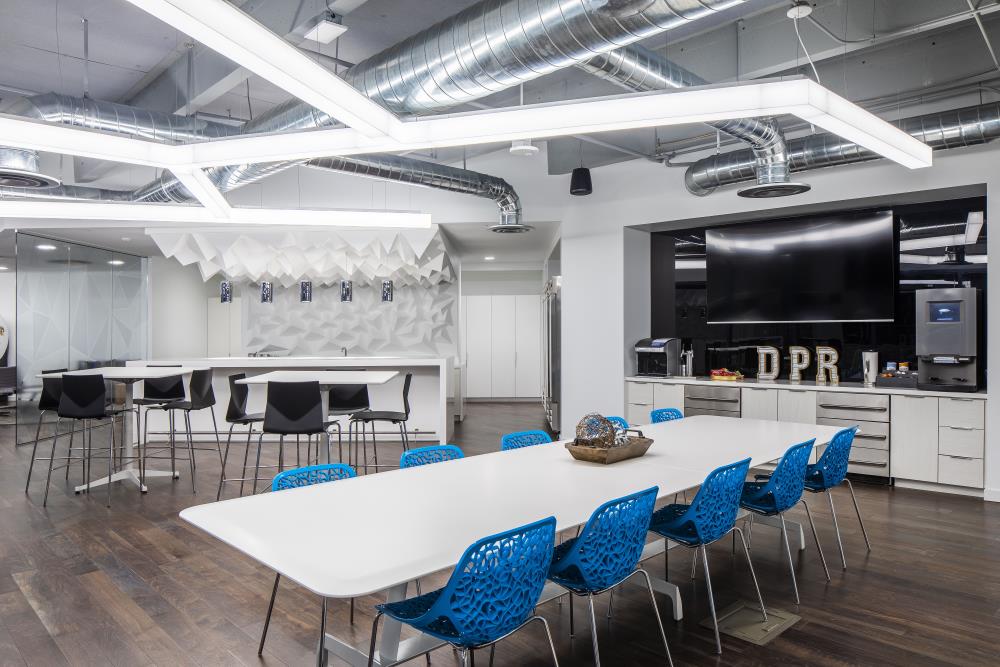

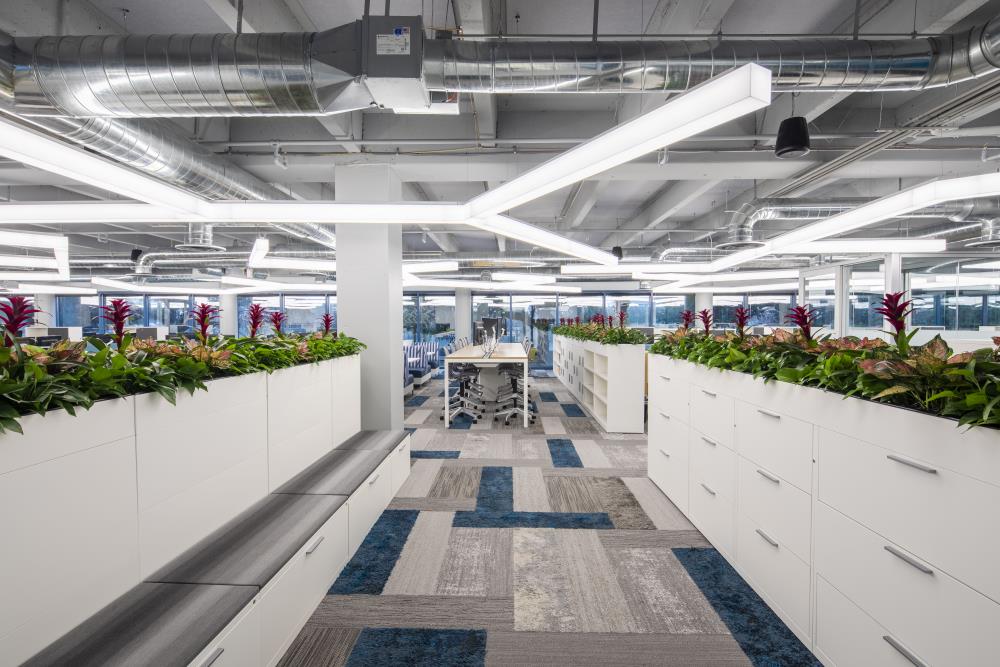

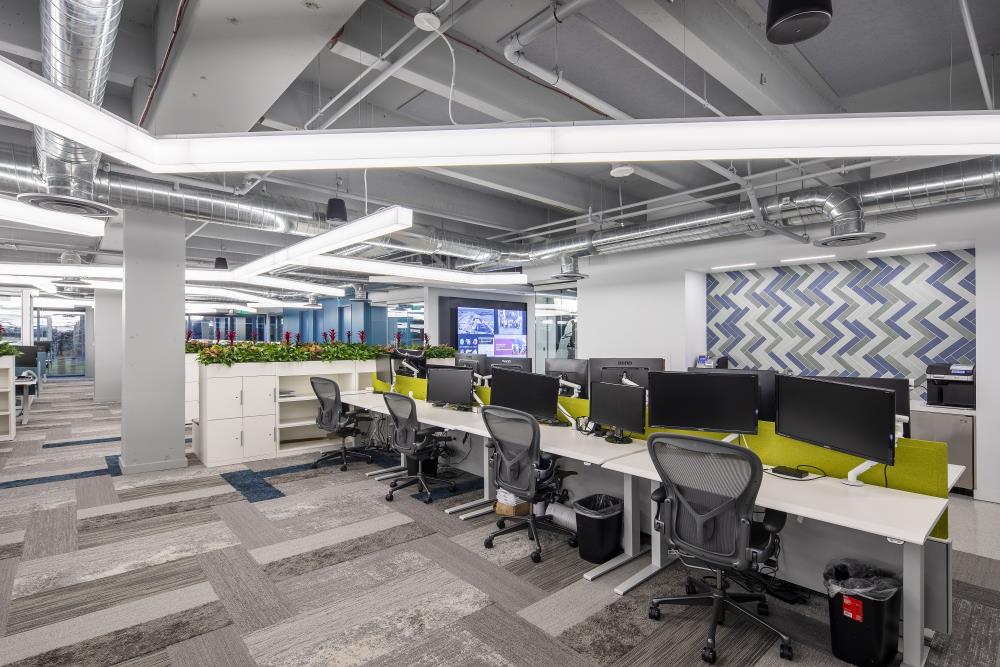

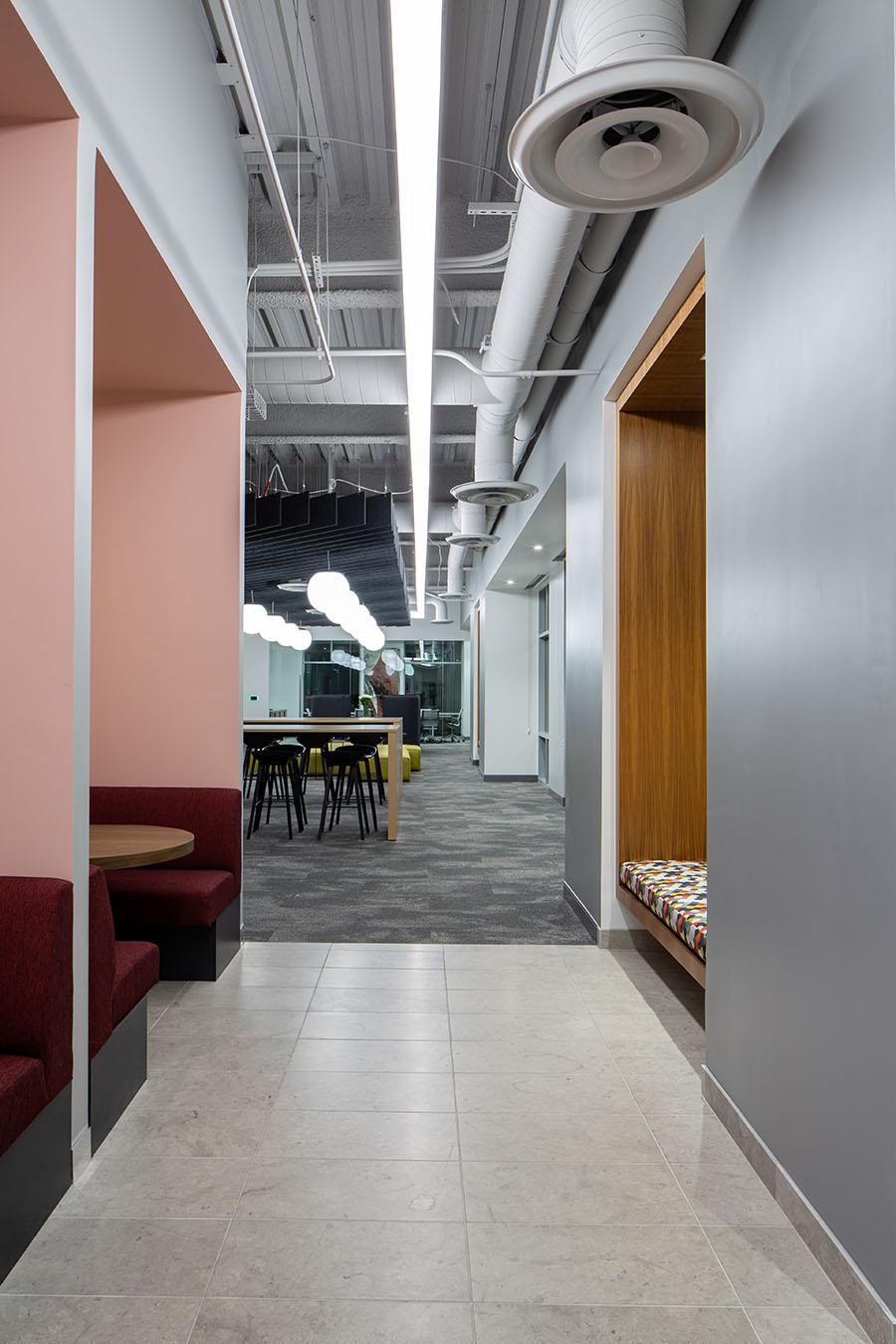

Novato Lines + Arcs - DPR Construction
Little Diversified Architectural Consulting | Supplying Representative: Landreth Lighting, Inc. | Chad Baumer Photography

<< BACK TO THUMBNAILS
Novato Lines + Arcs - DPR Construction
image 10 of 58

Novato Lines + Arcs - DPR Construction
Little Diversified Architectural Consulting | Supplying Representative: Landreth Lighting, Inc. | Chad Baumer Photography

<< BACK TO THUMBNAILS
Novato Lines + Arcs - DPR Construction
image 11 of 58

Novato Lines + Arcs - DPR Construction
Little Diversified Architectural Consulting | Supplying Representative: Landreth Lighting, Inc. | Chad Baumer Photography

<< BACK TO THUMBNAILS
Novato Lines + Arcs - DPR Construction
image 12 of 58

Novato Lines + Arcs - DPR Construction
Little Diversified Architectural Consulting | Supplying Representative: Landreth Lighting, Inc. | Chad Baumer Photography

<< BACK TO THUMBNAILS
Novato Lines + Arcs - DPR Construction
image 13 of 58

Novato Lines + Arcs - DPR Construction
Little Diversified Architectural Consulting | Supplying Representative: Landreth Lighting, Inc. | Chad Baumer Photography

<< BACK TO THUMBNAILS
Novato Lines + Arcs - DPR Construction
image 14 of 58

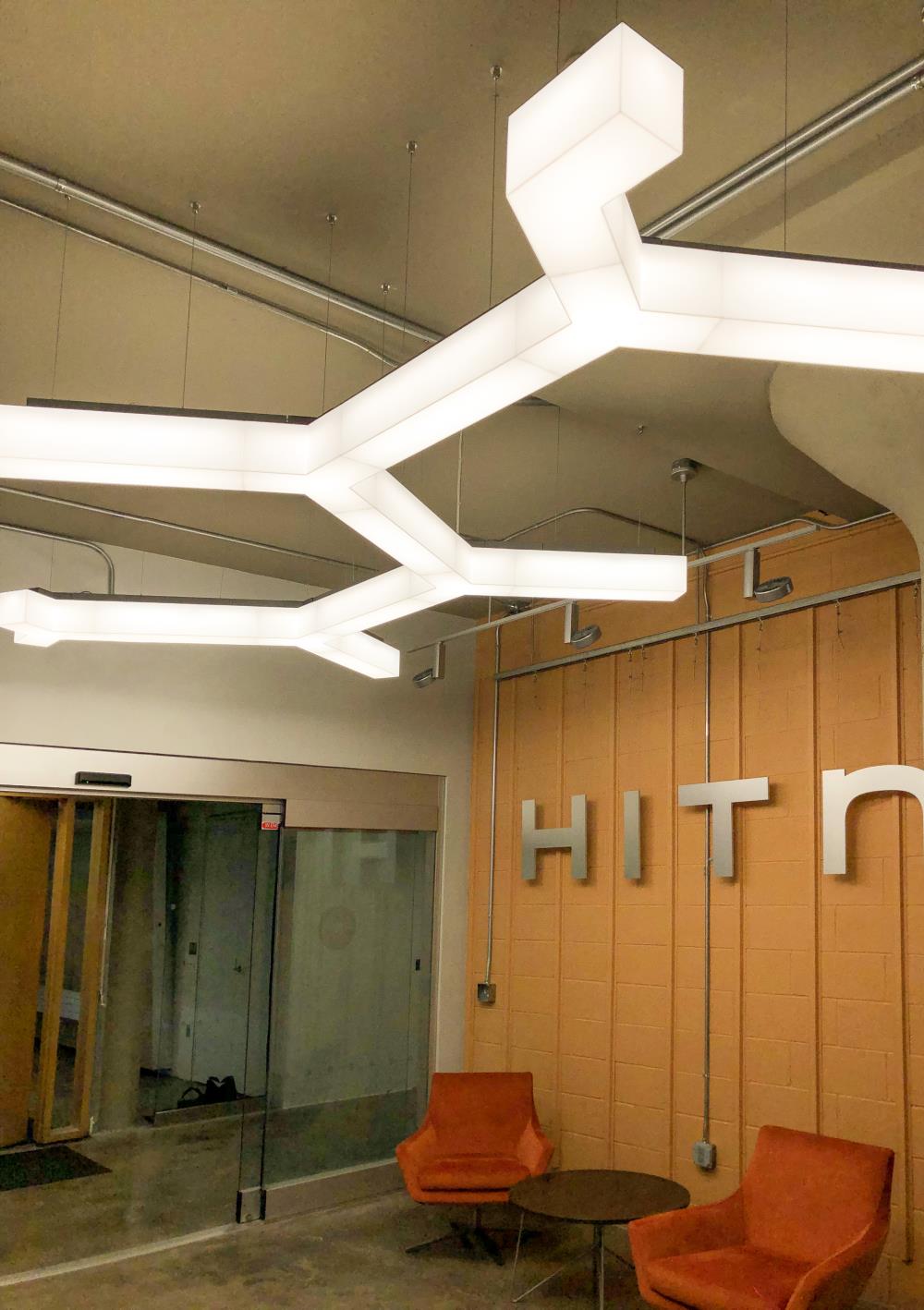

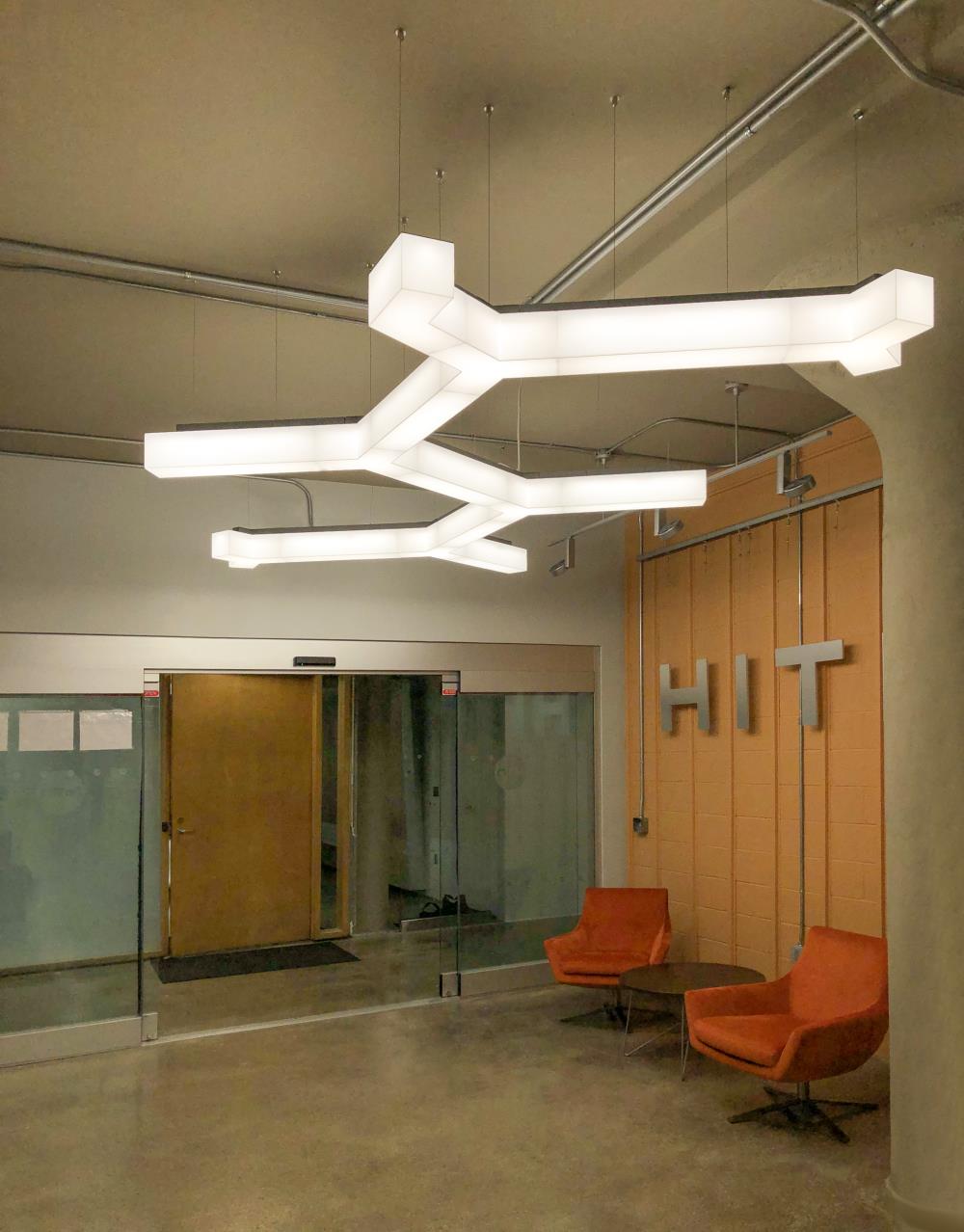

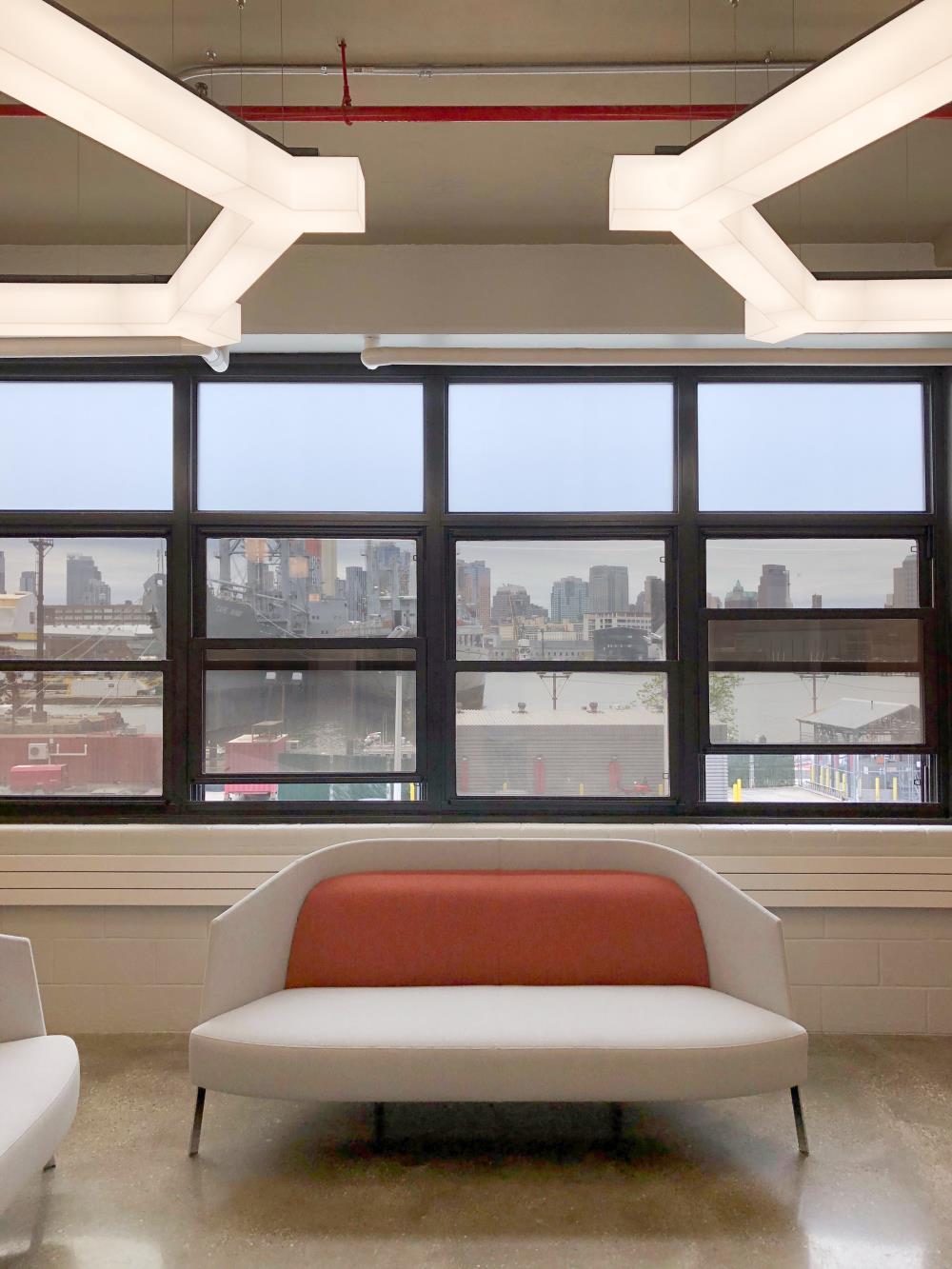

Novato Lines + Arcs - HITN
Lighting Layout: Empire Lighting

<< BACK TO THUMBNAILS
Novato Lines + Arcs - HITN
image 15 of 58

Novato Lines + Arcs - HITN
Lighting Layout: Empire Lighting

<< BACK TO THUMBNAILS
Novato Lines + Arcs - HITN
image 16 of 58

Novato Lines + Arcs - HITN
Lighting Layout: Empire Lighting

<< BACK TO THUMBNAILS
Novato Lines + Arcs - HITN
image 17 of 58

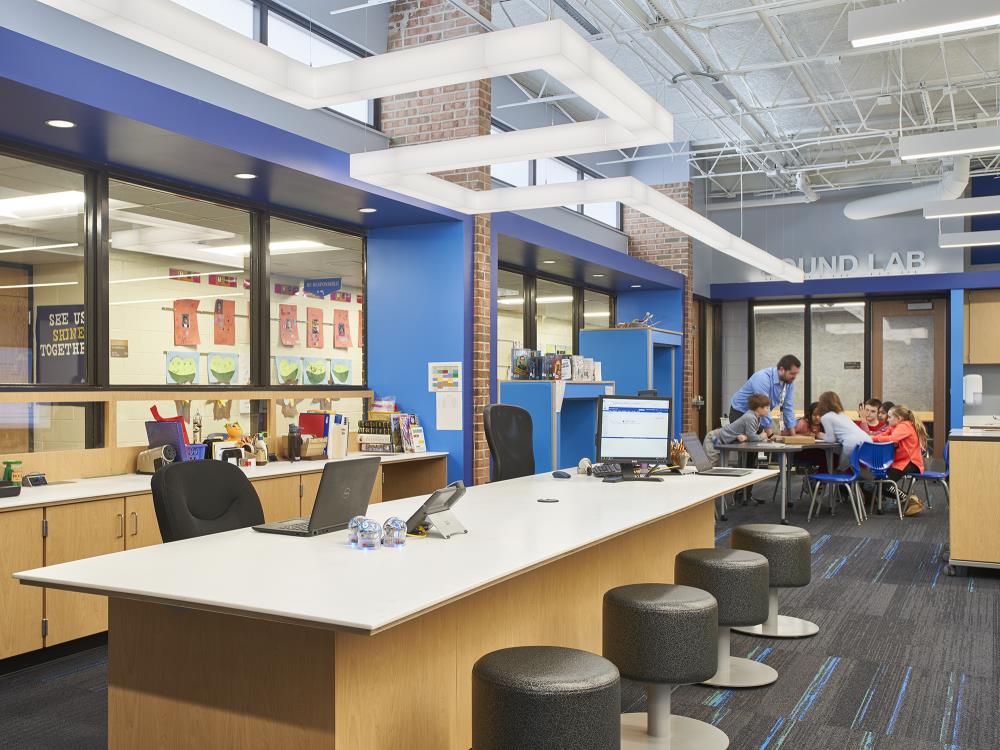

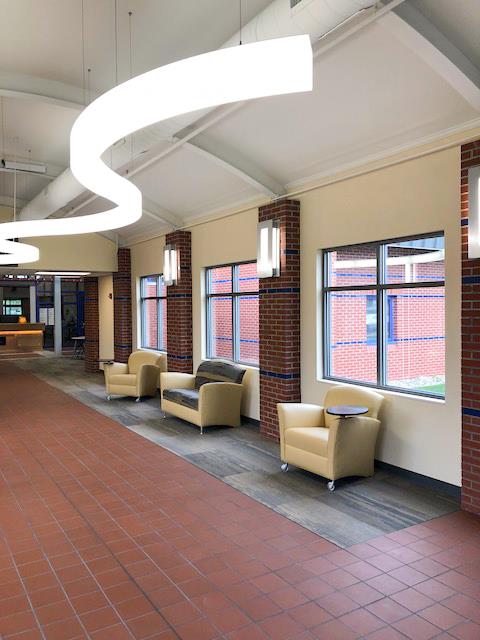

Novato Lines + Connectors - Dirksen Elementary
© Christopher Barrett Photography/STR Partners LLC (Architects)

<< BACK TO THUMBNAILS
Novato Lines + Connectors - Dirksen Elementary
image 18 of 58

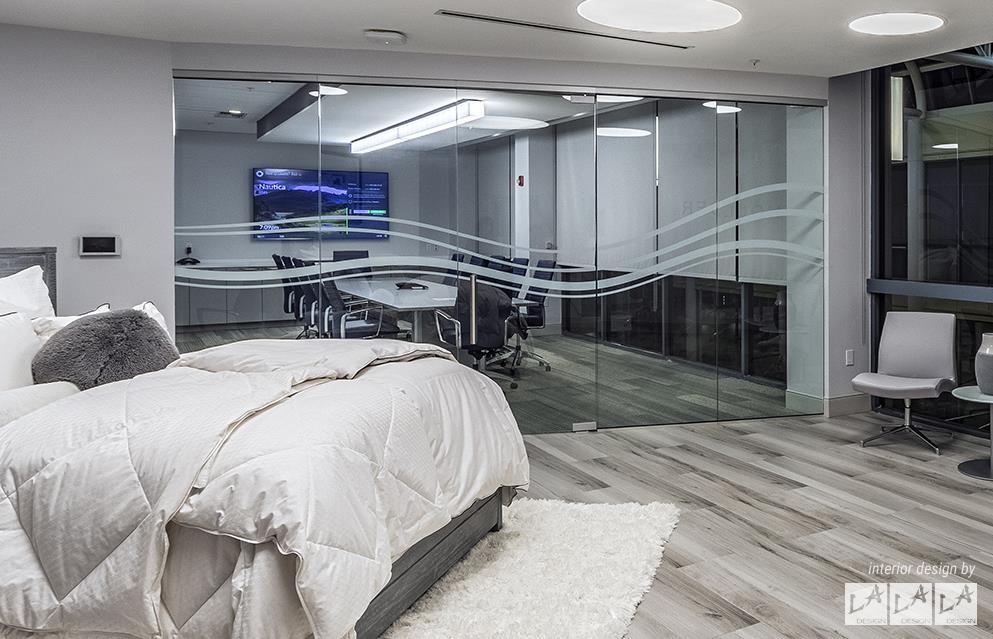

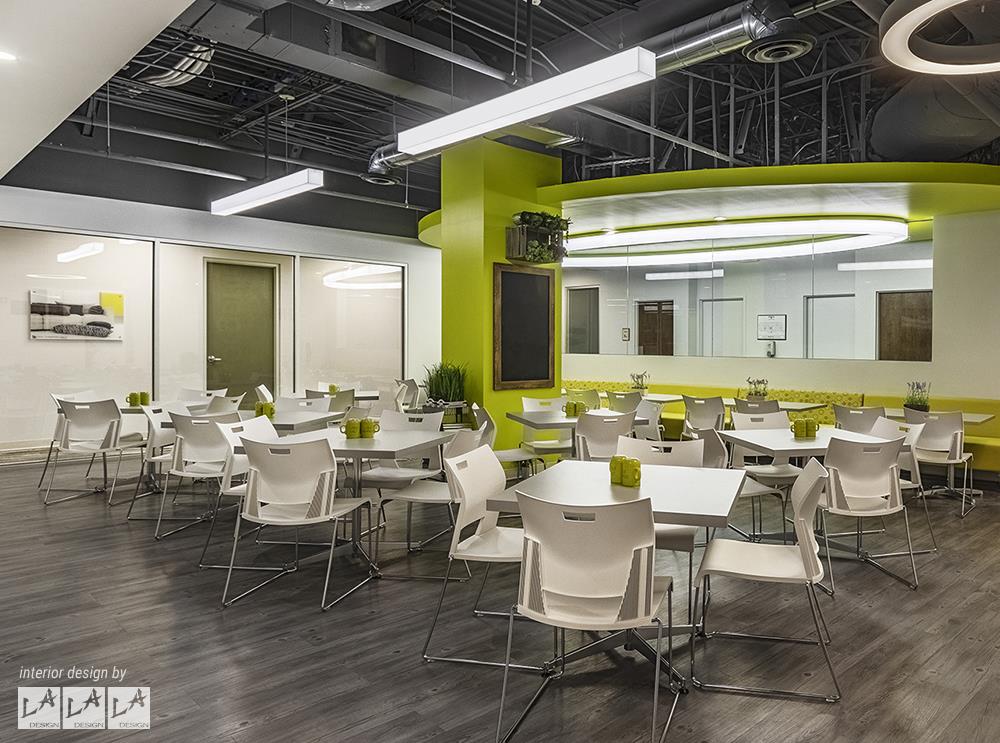

Novato Lines + Arcs - Hollander Sleep Products
L.A. Design, Inc. | G. Midgley Jones Jr. Architect, Inc.

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Hollander Sleep Products
image 19 of 58

Novato Lines + Arcs - Hollander Sleep Products
L.A. Design, Inc. | G. Midgley Jones Jr. Architect, Inc.

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Hollander Sleep Products
image 20 of 58

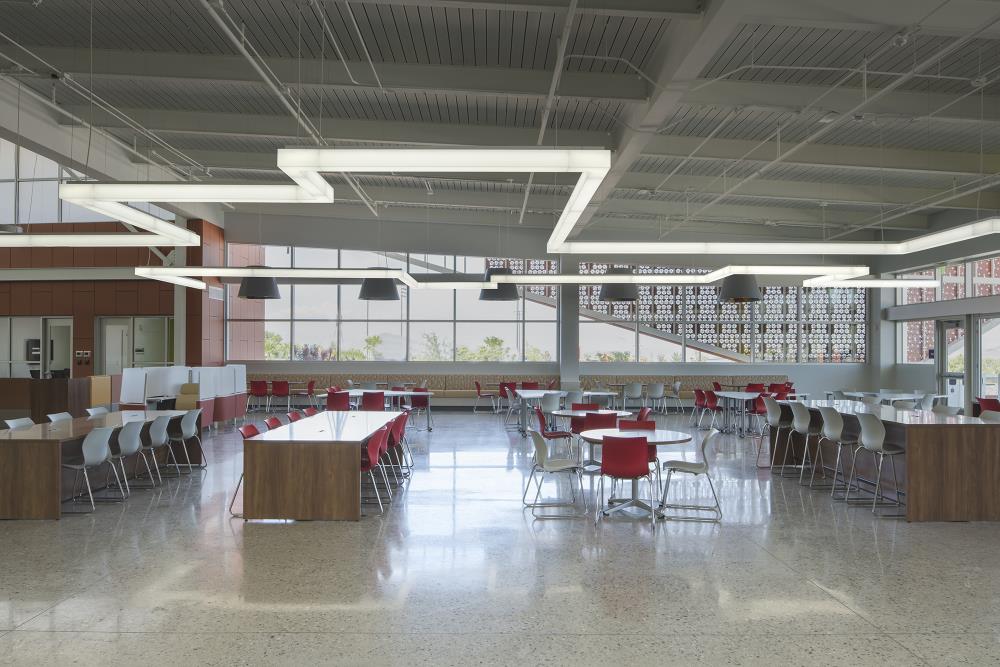

Novato Lines + Arcs, Novato Rings - CSN Student Union
TSK Architects | Jeff Green Photography

<< BACK TO THUMBNAILS
Novato Lines + Arcs, Novato Rings - CSN Student Union
image 21 of 58

Novato Lines + Arcs, Novato Rings - CSN Student Union
TSK Architects | Jeff Green Photography

<< BACK TO THUMBNAILS
Novato Lines + Arcs, Novato Rings - CSN Student Union
image 22 of 58

Novato Lines + Arcs - CSN Student Union
TSK Architects | Jeff Green Photography

<< BACK TO THUMBNAILS
Novato Lines + Arcs - CSN Student Union
image 23 of 58

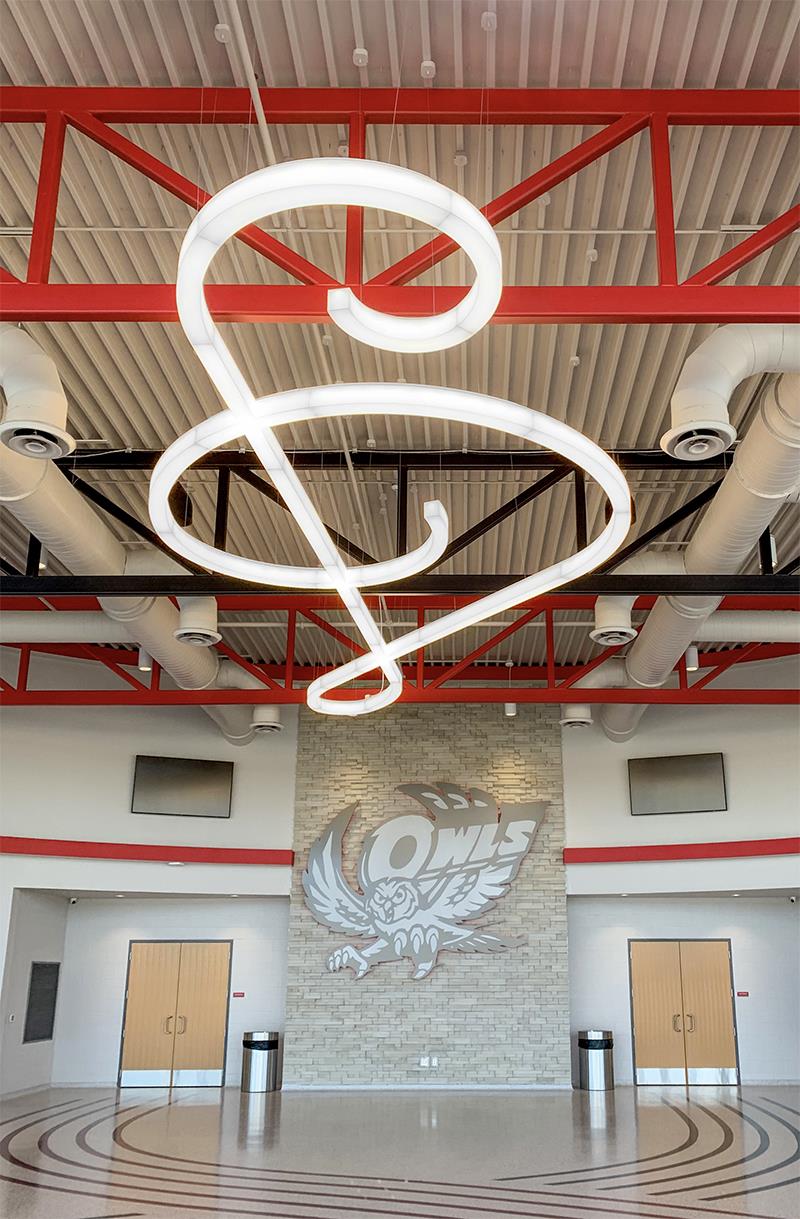

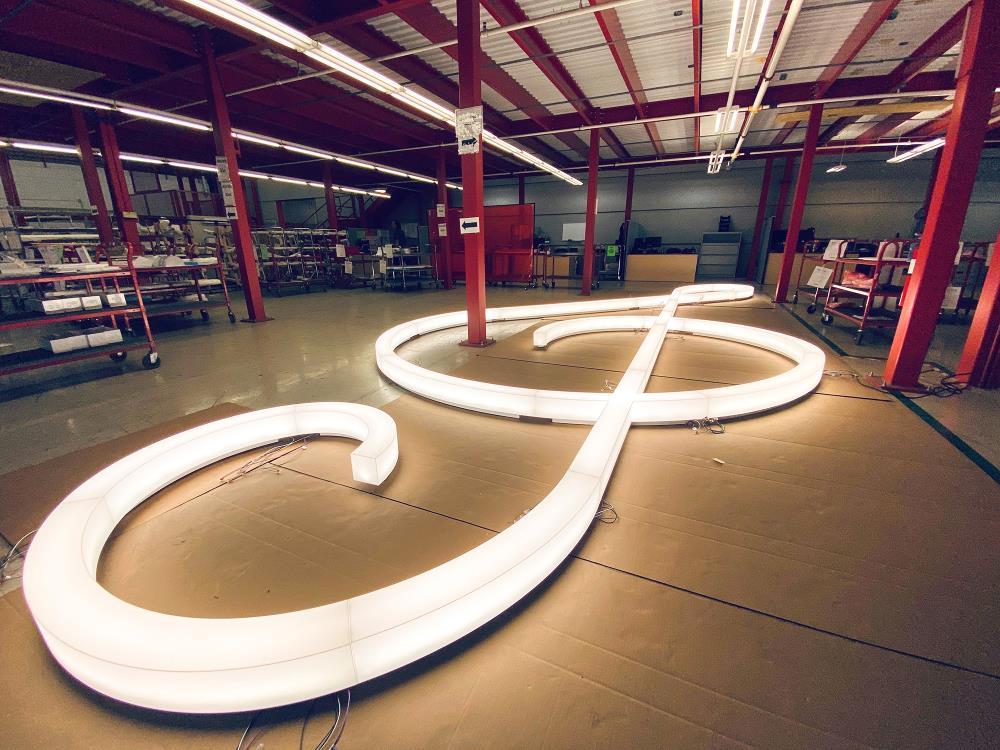

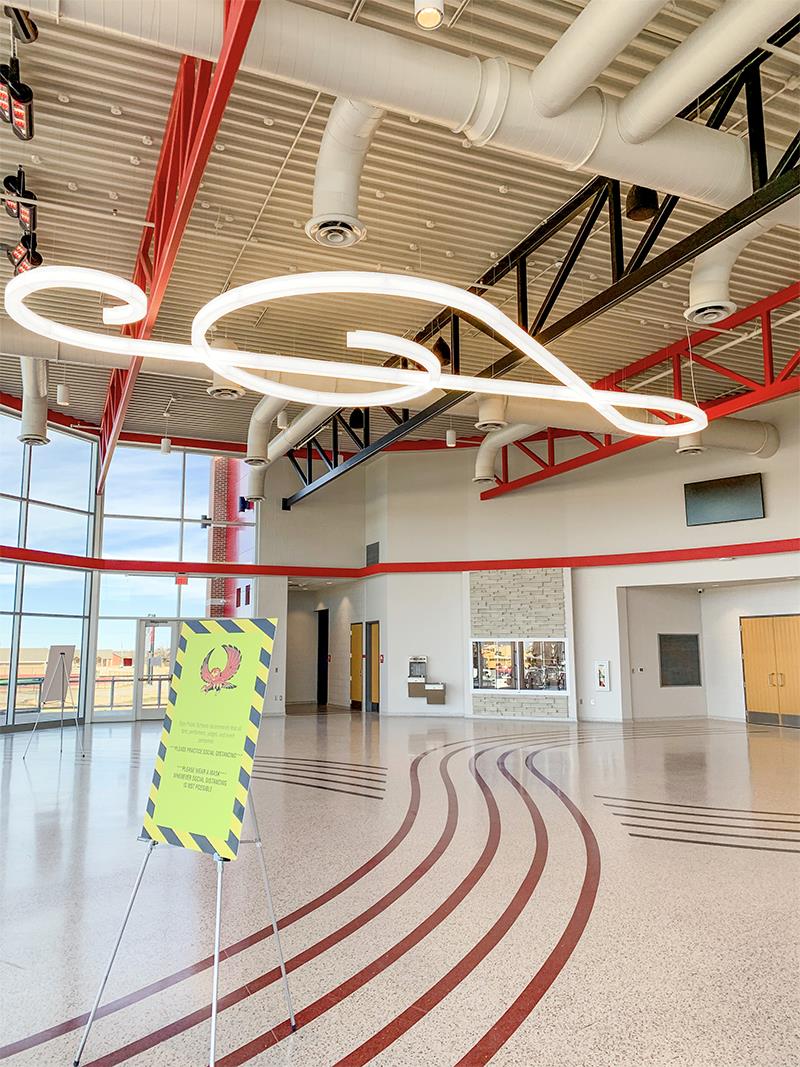

Novato Lines + Arcs - Treble Clef
Engineer: Allen Consulting, Inc. | Norman, OK

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Treble Clef
image 24 of 58

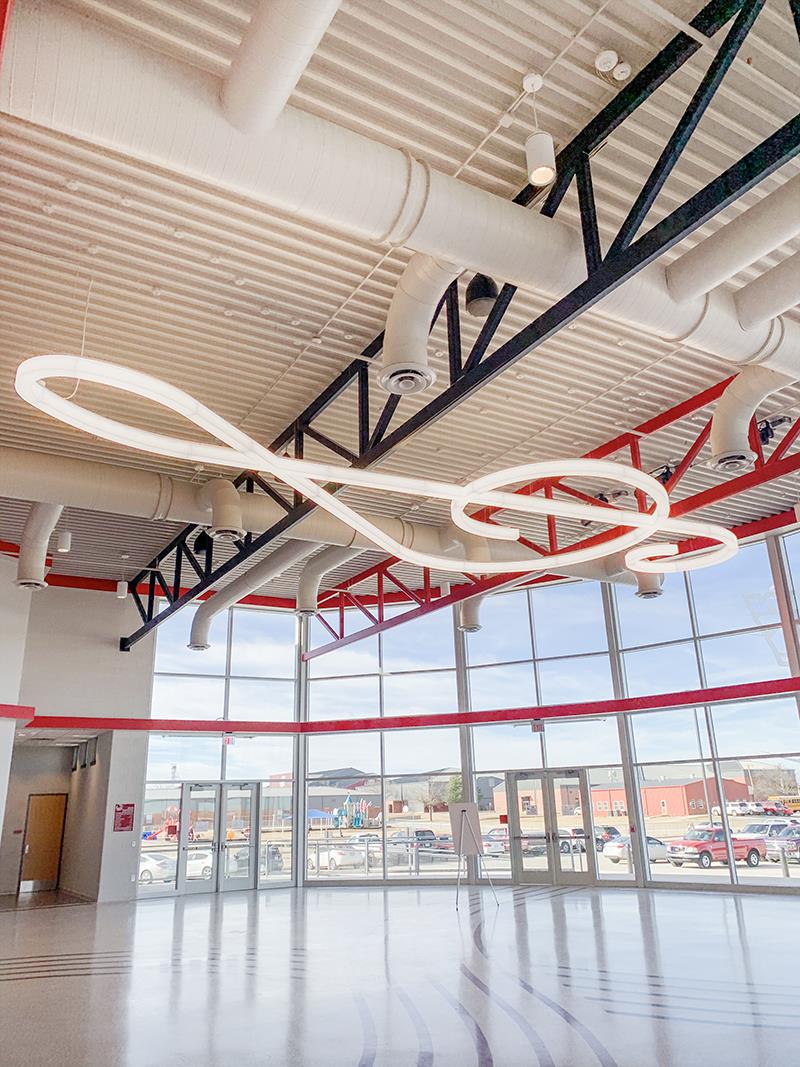

Novato Lines + Arcs - Treble Clef
Engineer: Allen Consulting, Inc. | Norman, OK

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Treble Clef
image 25 of 58

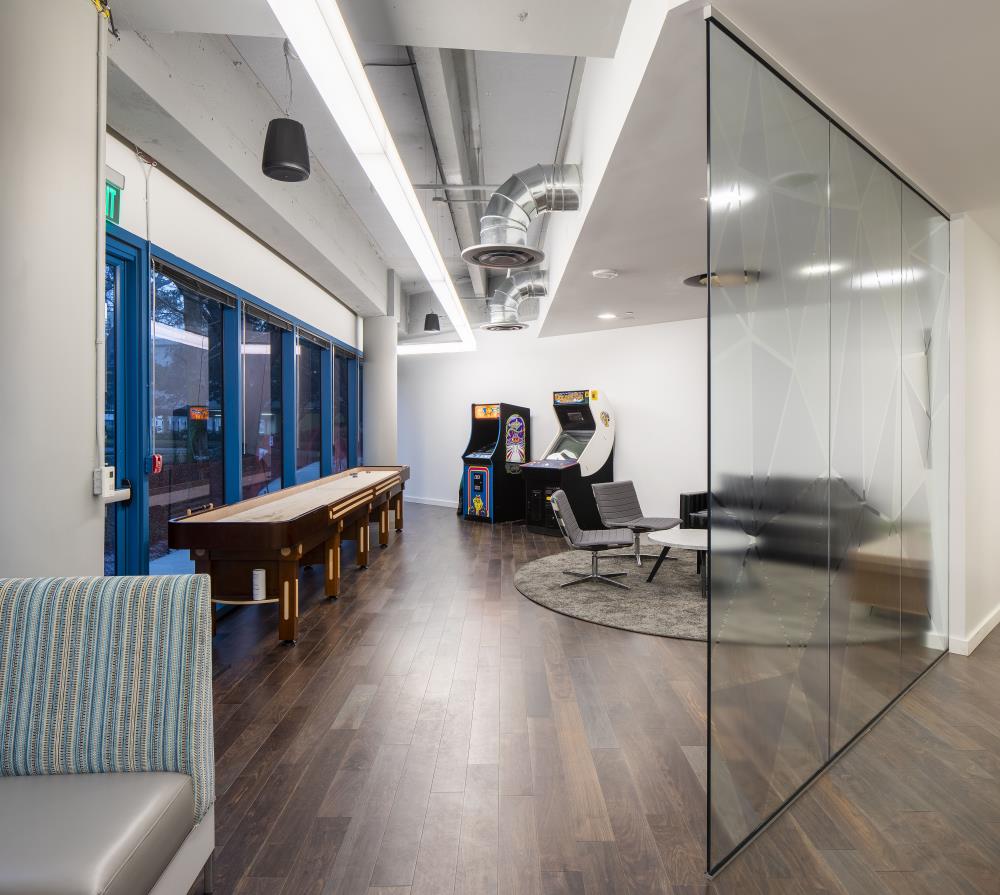

Novato Lines + Arcs - CarGurus
Architect: SGA | Lighting Agency: Reflex Lighting Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - CarGurus
image 26 of 58

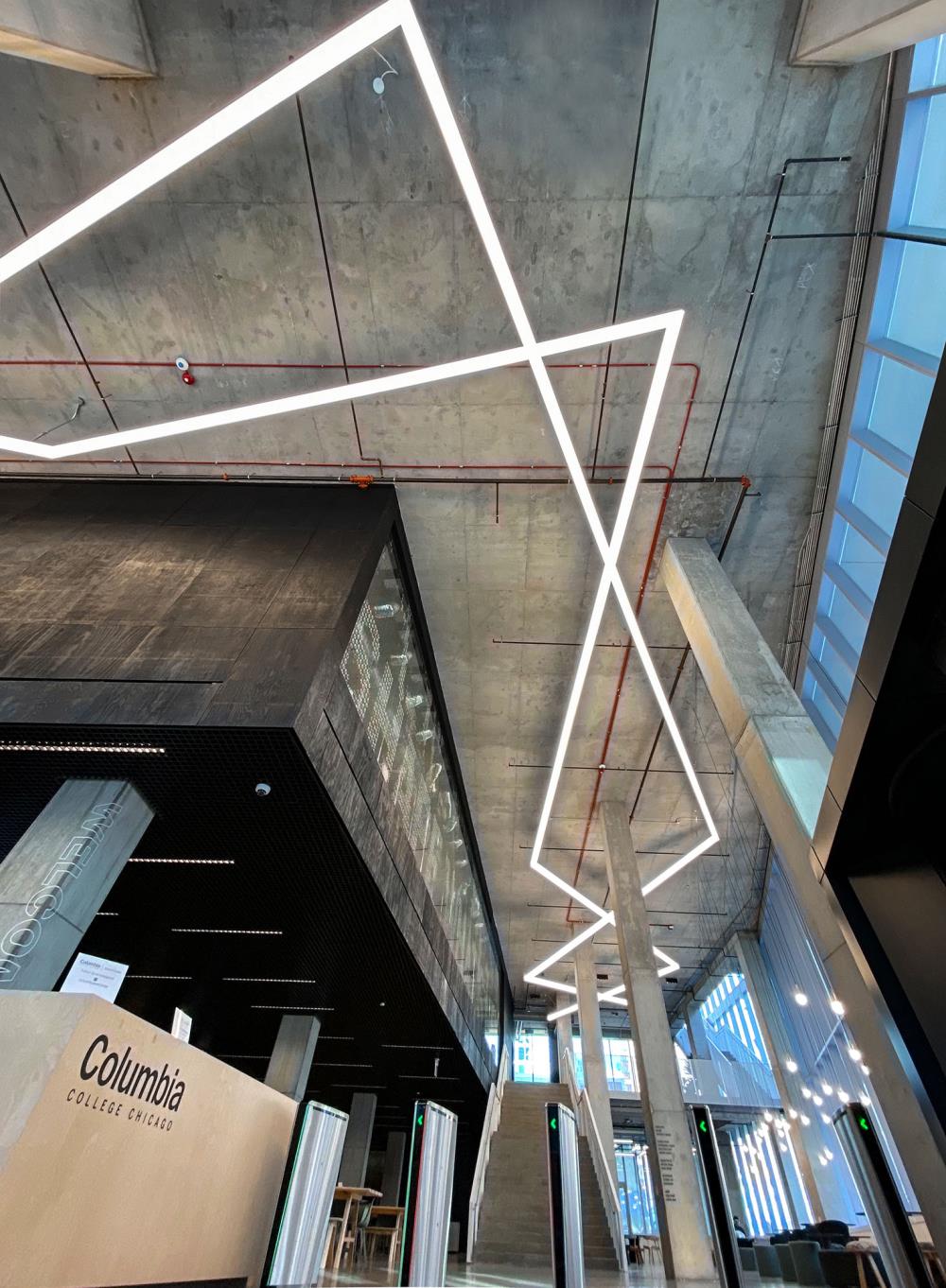

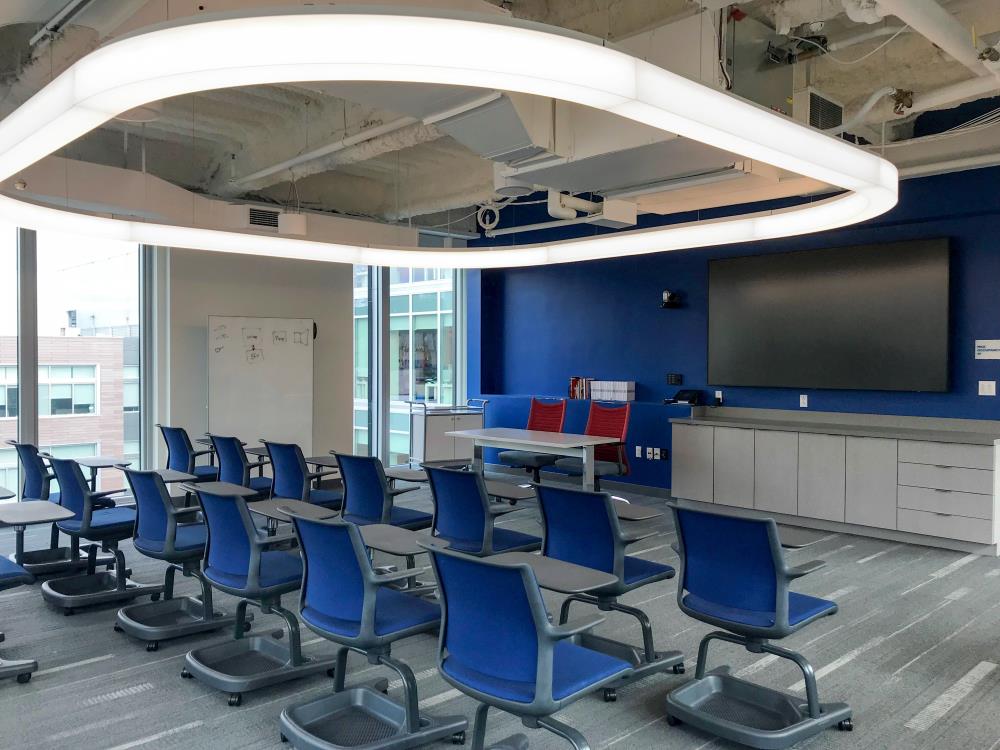

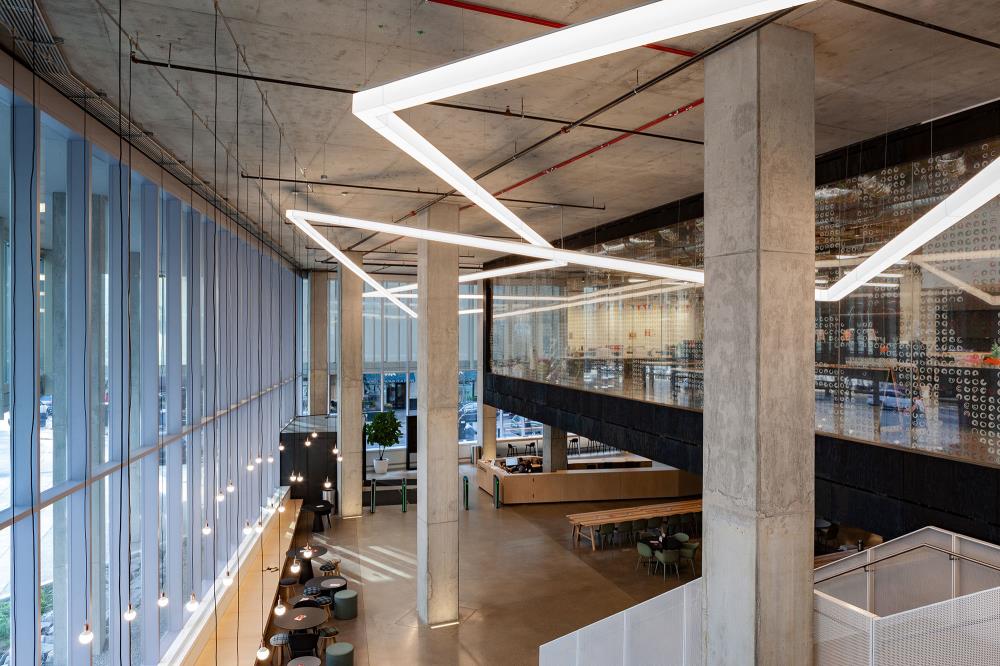

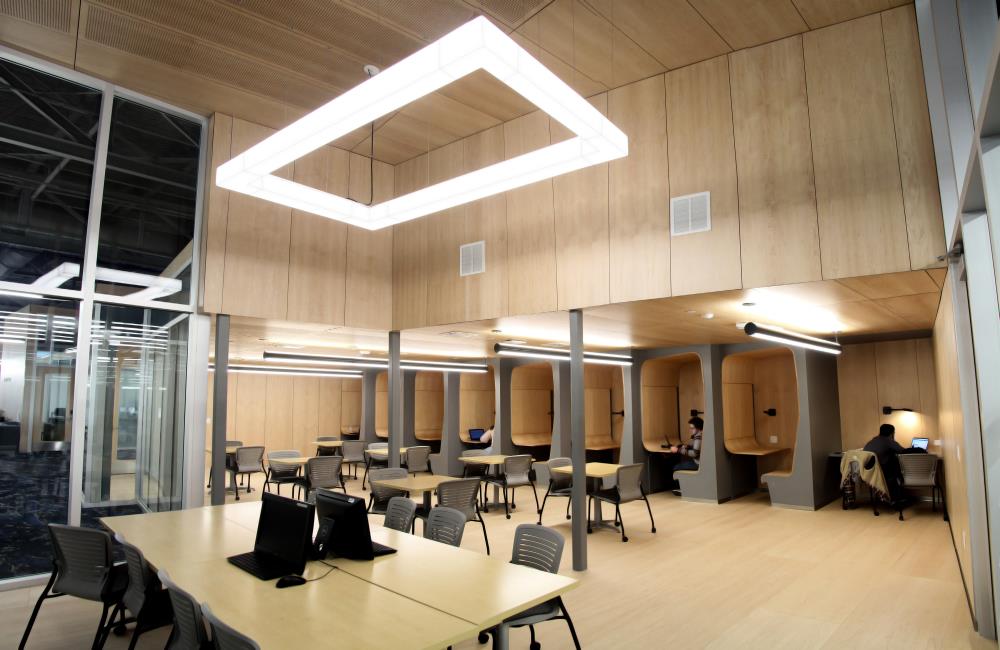

Novato Lines + Arcs - Columbia College Chicago - Student Center
Architect: Gensler | Gwen Grossman Lighting Design | Photographer: Jonathan Bailey

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Columbia College Chicago - Student Center
image 27 of 58

Novato Lines + Arcs - Columbia College Chicago - Student Center
Architect: Gensler | Gwen Grossman Lighting Design | Photographer: Jonathan Bailey

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Columbia College Chicago - Student Center
image 28 of 58

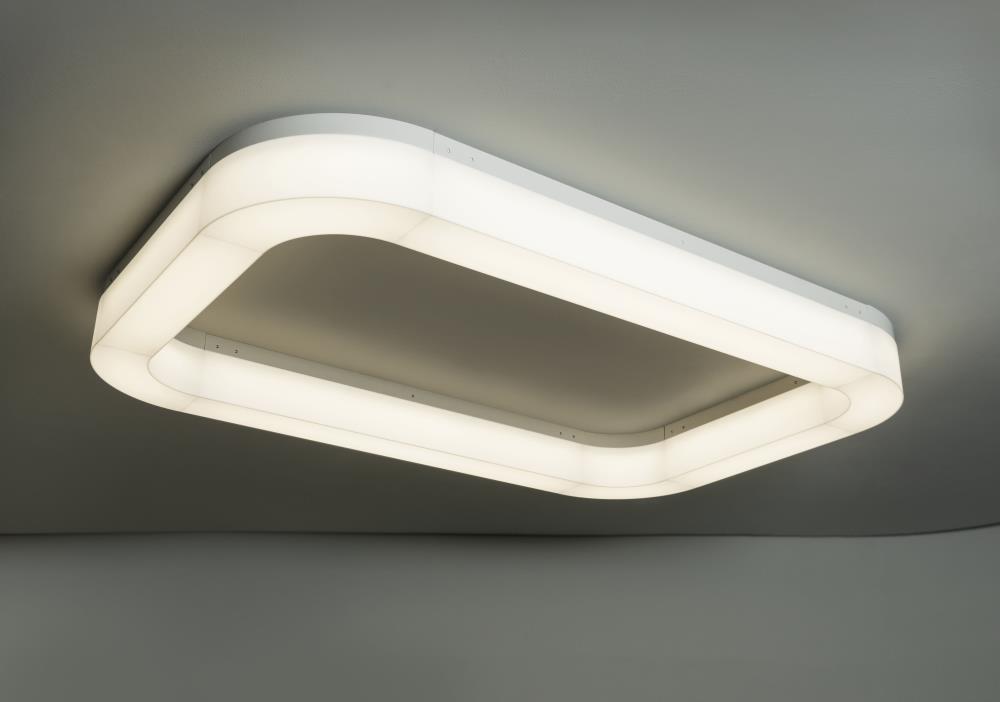

Novato Lines + Arcs – 4’ x 6’ Ceiling Mounted Racetrack (Modified)

<< BACK TO THUMBNAILS
Novato Lines + Arcs – 4’ x 6’ Ceiling Mounted Racetrack (Modified)
image 29 of 58

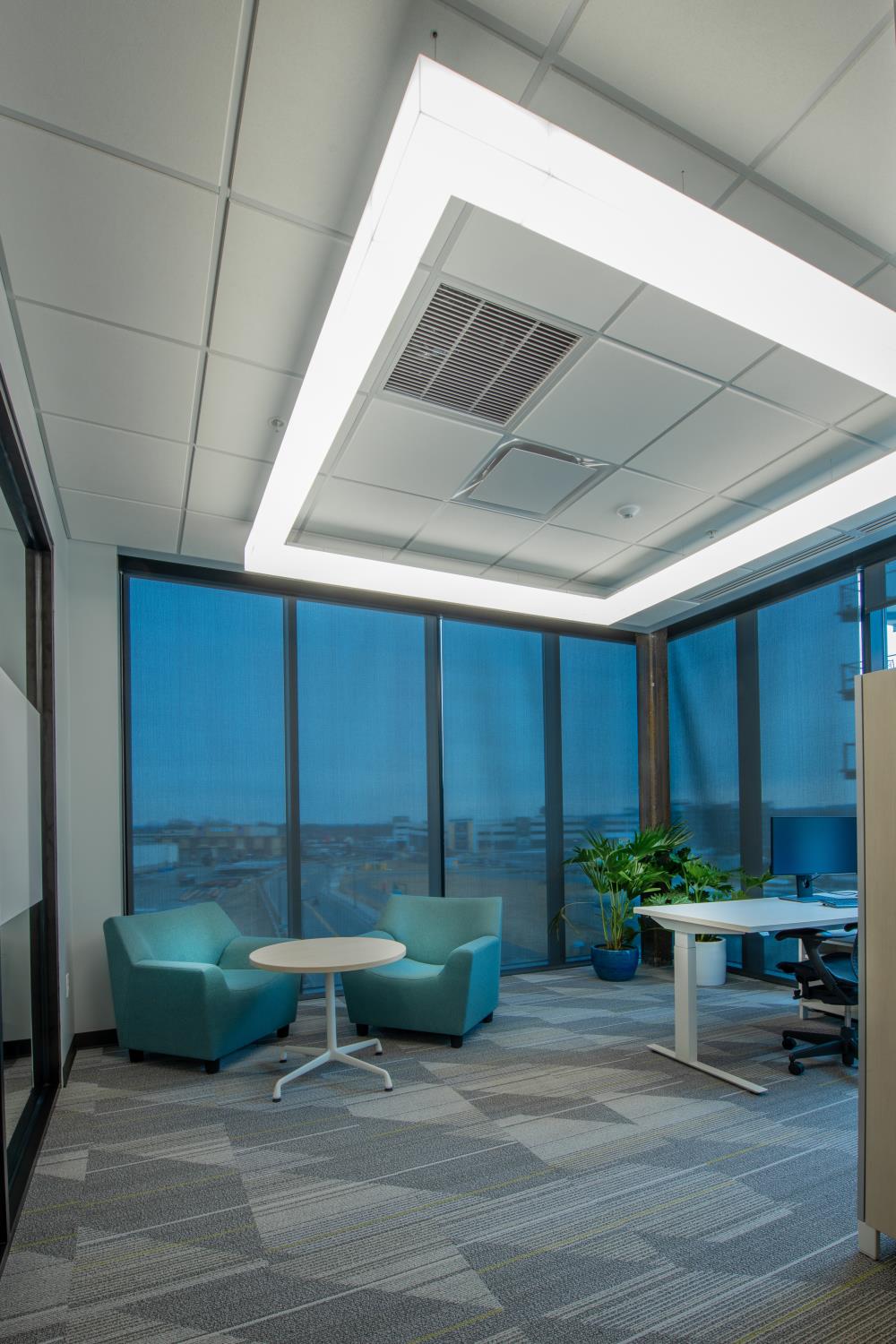

Novato Lines + Arcs - Distributed Solar Development
SYVERTSEN RIGOSU Architects, PLLC (SRA) | Metroland Photo, Inc. by Michael Gallitelli

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Distributed Solar Development
image 30 of 58

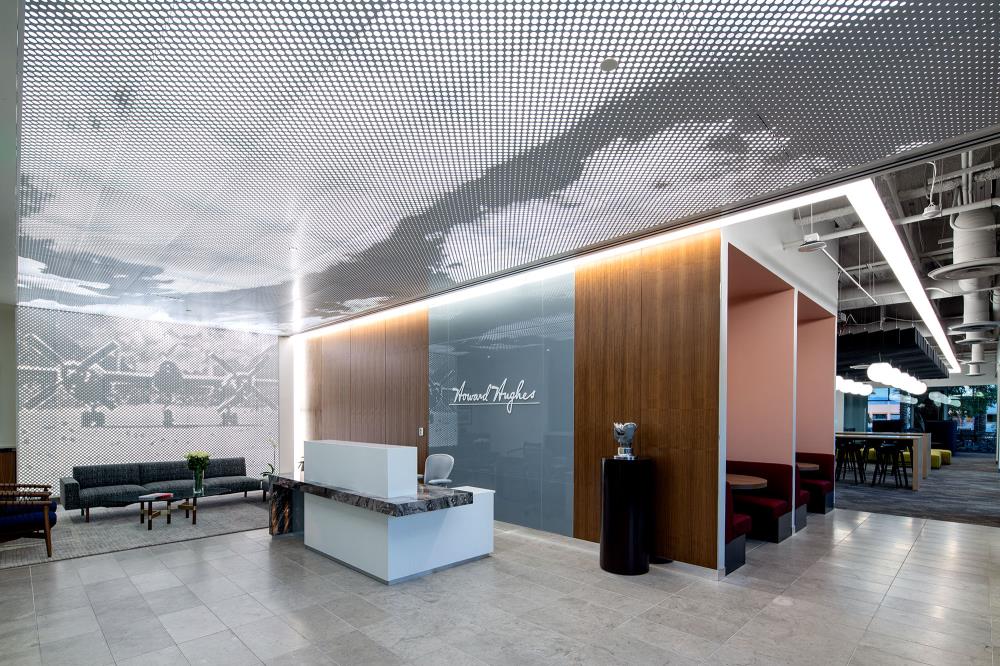

Spheres & Novato Lines + Arcs - The Howard Hughes Corporation
Ed Vance & Associates Architects | Photography: Terry Mahanna, Mphoto7

<< BACK TO THUMBNAILS
Spheres & Novato Lines + Arcs - The Howard Hughes Corporation
image 31 of 58

Spheres & Novato Lines + Arcs - The Howard Hughes Corporation
Ed Vance & Associates Architects | Photography: Terry Mahanna, Mphoto7

<< BACK TO THUMBNAILS
Spheres & Novato Lines + Arcs - The Howard Hughes Corporation
image 32 of 58

Spheres & Novato Lines + Arcs - The Howard Hughes Corporation
Ed Vance & Associates Architects | Photography: Terry Mahanna, Mphoto7

<< BACK TO THUMBNAILS
Spheres & Novato Lines + Arcs - The Howard Hughes Corporation
image 33 of 58

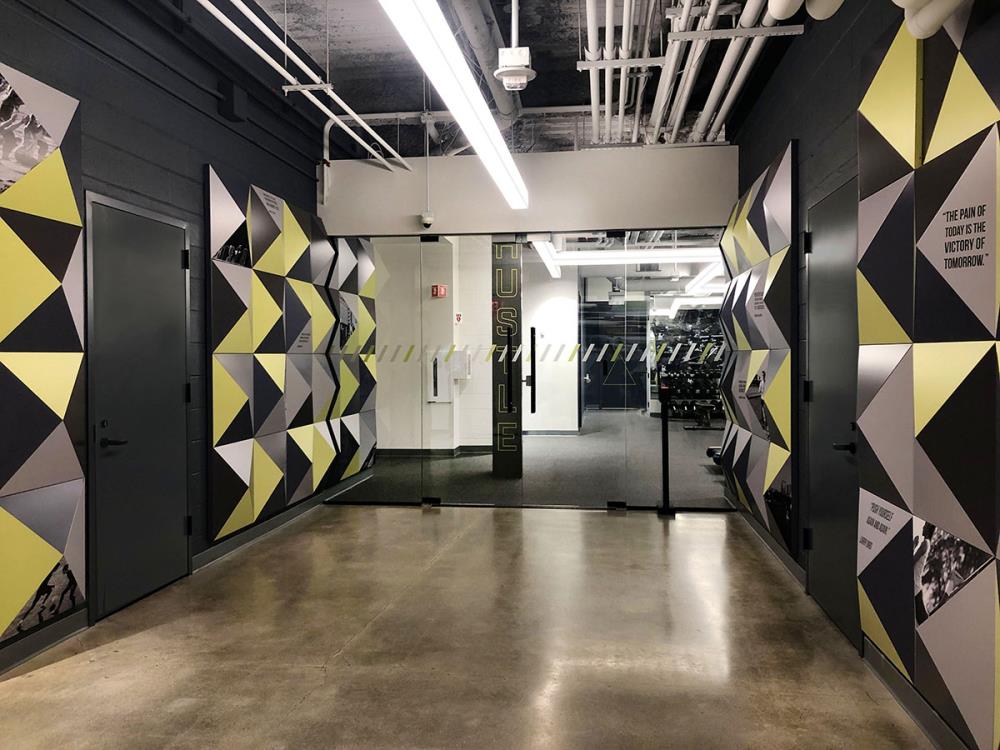

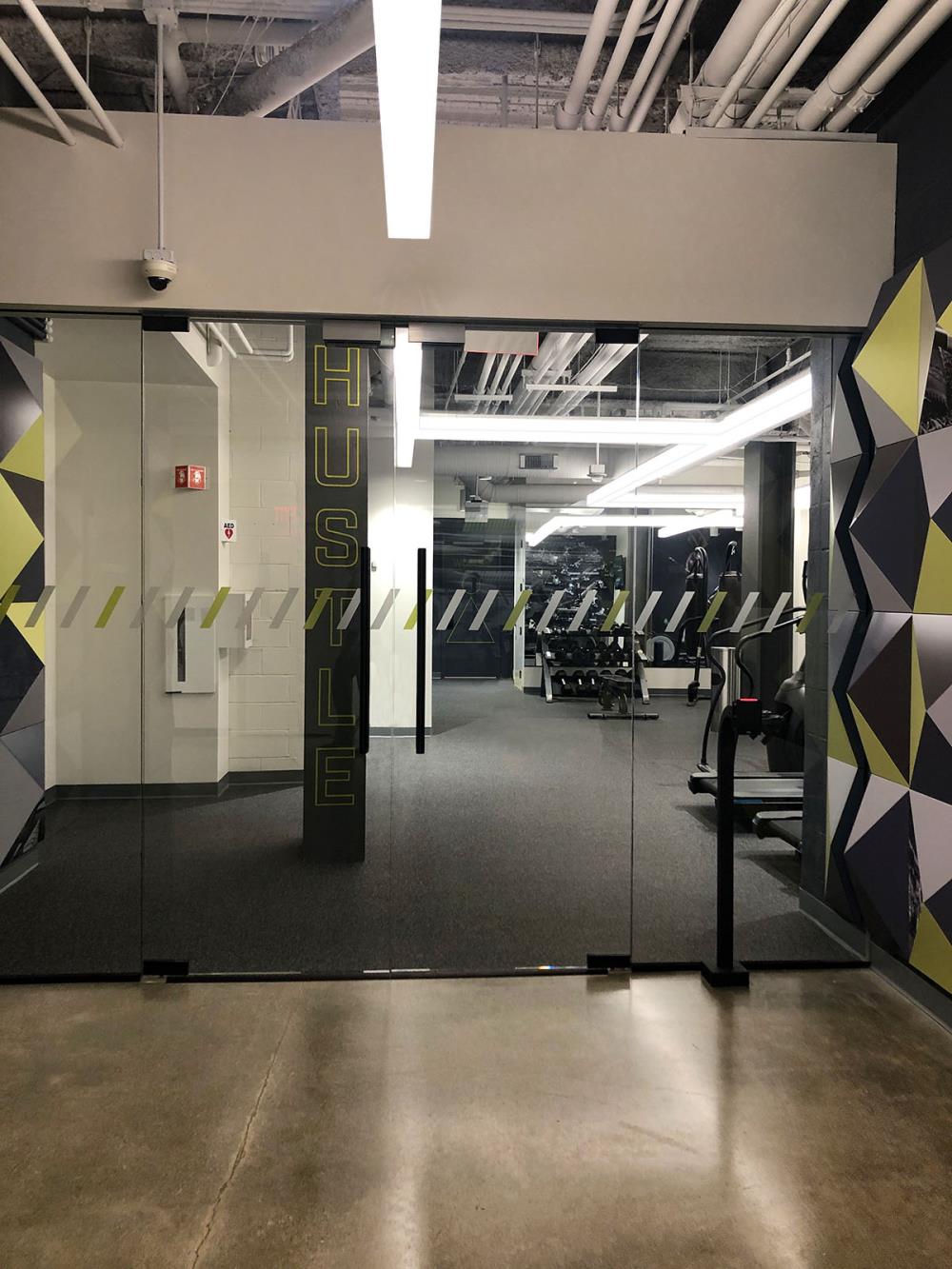

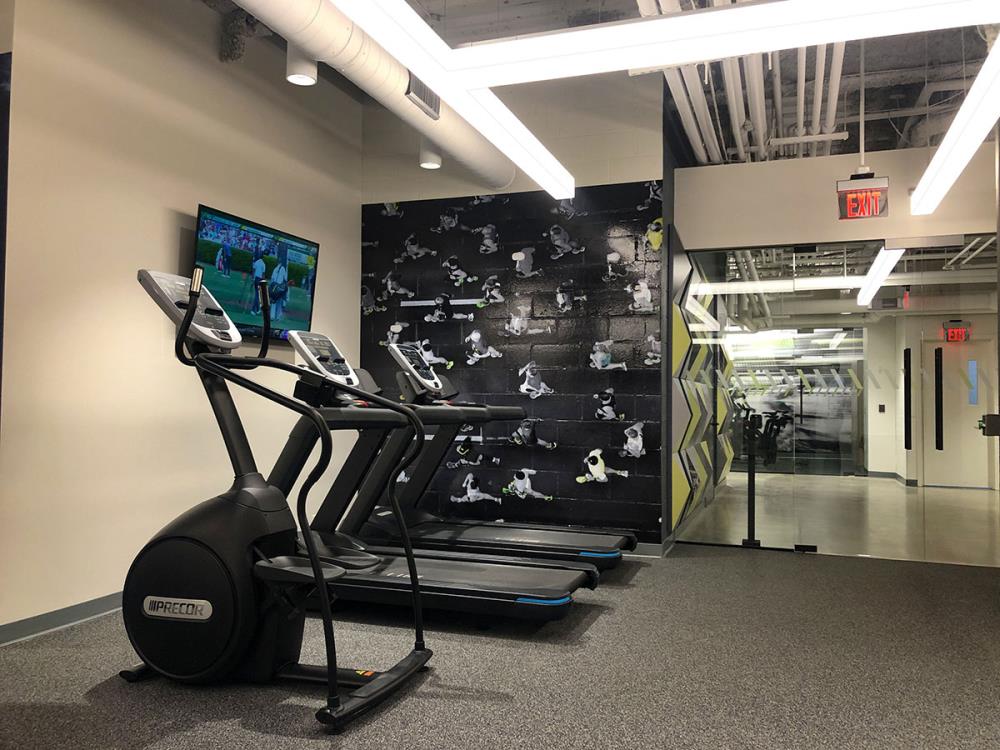

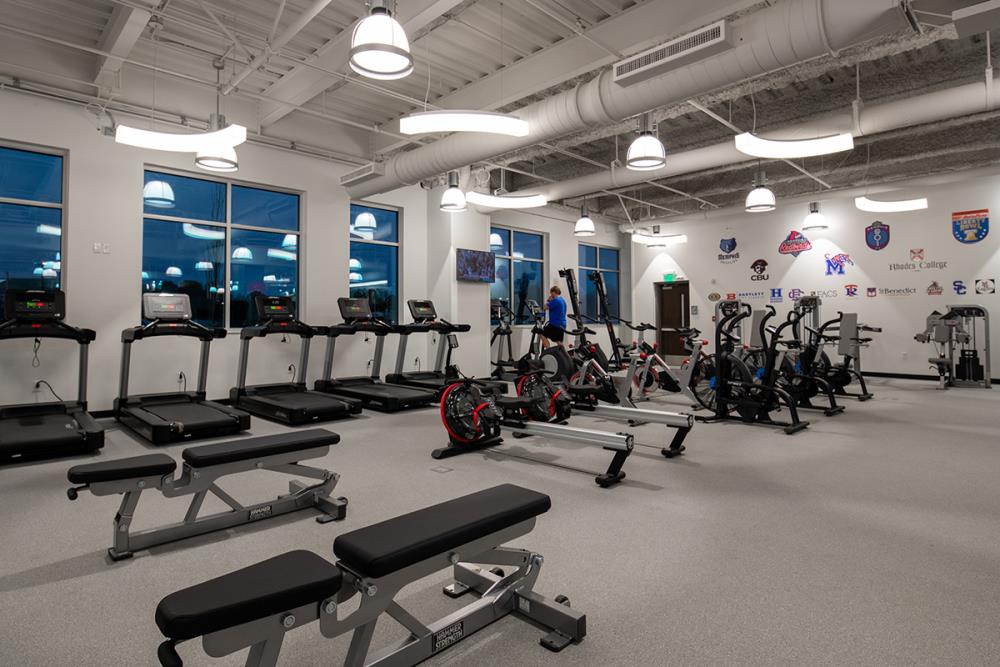

Novato Lines + Arcs - Commercial Building Amenity Fitness Center
Design Firm: SGA

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Commercial Building Amenity Fitness Center
image 34 of 58

Novato Lines + Arcs - Commercial Building Amenity Fitness Center
Design Firm: SGA

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Commercial Building Amenity Fitness Center
image 35 of 58

Novato Lines + Arcs - Commercial Building Amenity Fitness Center
Design Firm: SGA

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Commercial Building Amenity Fitness Center
image 36 of 58

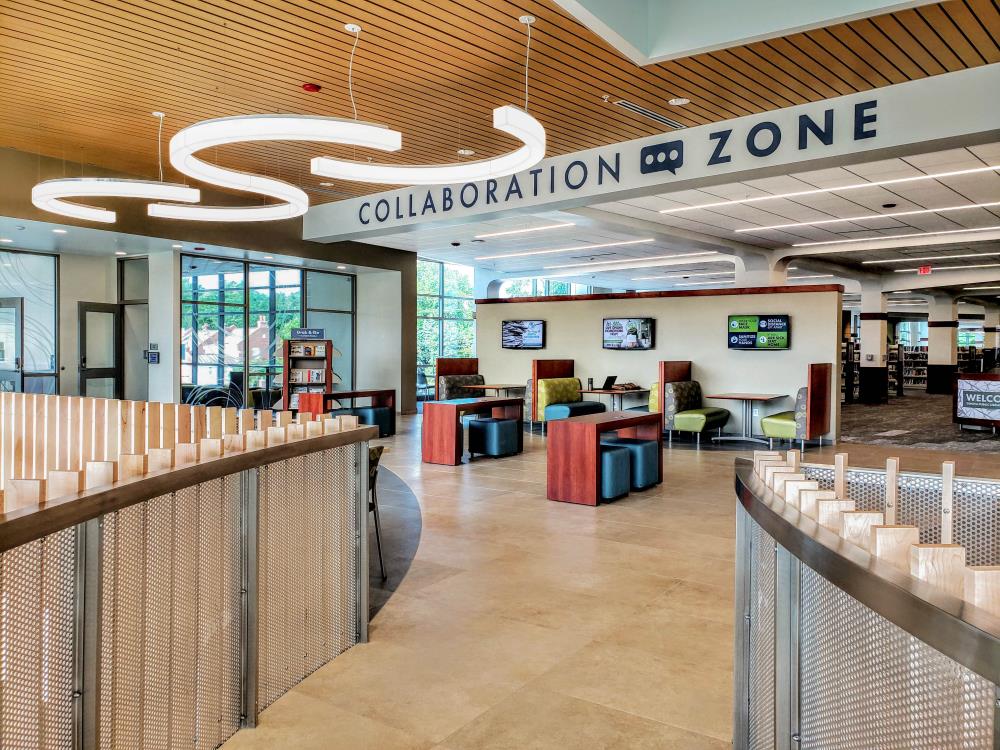

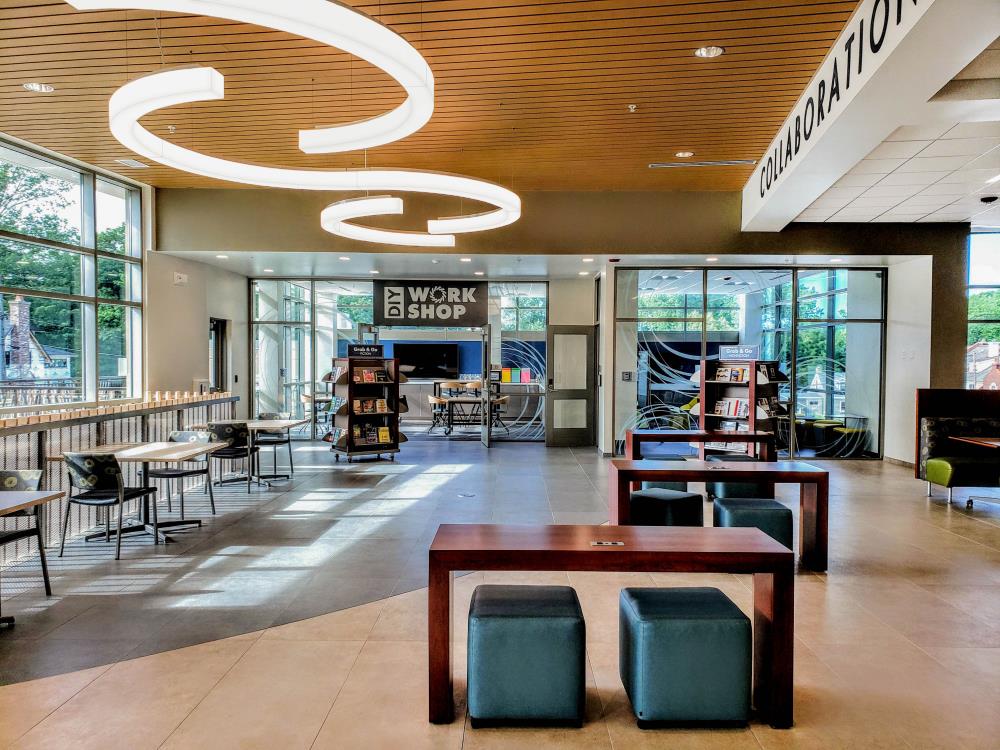

Novato Lines + Arcs - Geneva Public Library
Architect: StudioGC architecture + interiors | Electrical Engineer: 20/10 Engineering Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Geneva Public Library
image 37 of 58

Novato Lines + Arcs - Geneva Public Library
Architect: StudioGC architecture + interiors | Electrical Engineer: 20/10 Engineering Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Geneva Public Library
image 38 of 58

Novato Lines + Arcs - Geneva Public Library
Architect: StudioGC architecture + interiors | Electrical Engineer: 20/10 Engineering Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Geneva Public Library
image 39 of 58

Novato Lines + Arcs - Geneva Public Library
Architect: StudioGC architecture + interiors | Electrical Engineer: 20/10 Engineering Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Geneva Public Library
image 40 of 58

Novato Lines + Arcs - Geneva Public Library
Architect: StudioGC architecture + interiors | Electrical Engineer: 20/10 Engineering Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Geneva Public Library
image 41 of 58

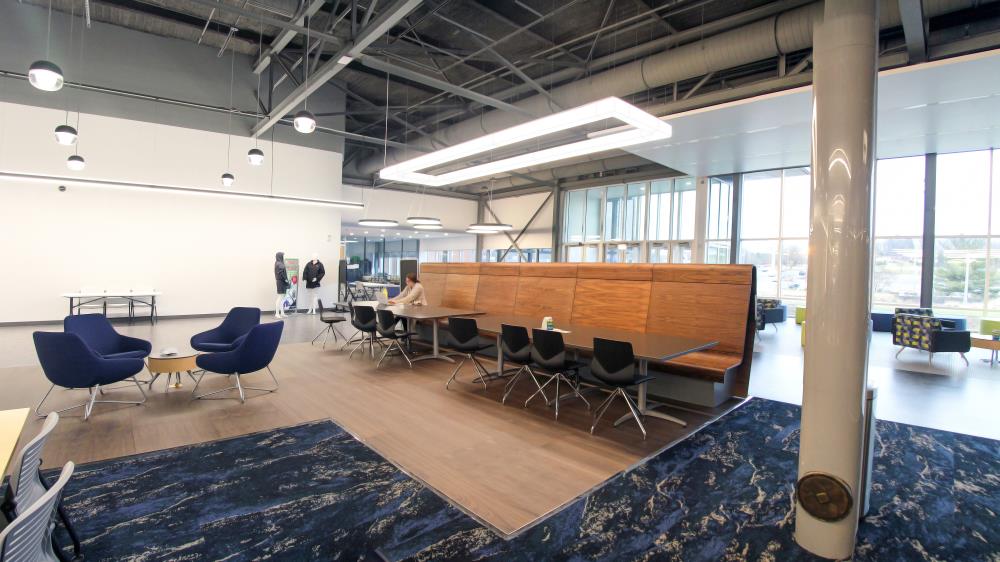

Novato Lines + Arcs - Westmoreland County Community College - Founders Hall
Architect: Cannon Design | Tower Engineering (Steffanie Bako, PE) | Custom Built-In Furniture & Photography: Standard & Custom LLC (S&C)

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Westmoreland County Community College - Founders Hall
image 42 of 58

Novato Lines + Arcs - Westmoreland County Community College - Founders Hall
Architect: Cannon Design | Tower Engineering (Steffanie Bako, PE) | Custom Built-In Furniture & Photography: Standard & Custom LLC (S&C)

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Westmoreland County Community College - Founders Hall
image 43 of 58

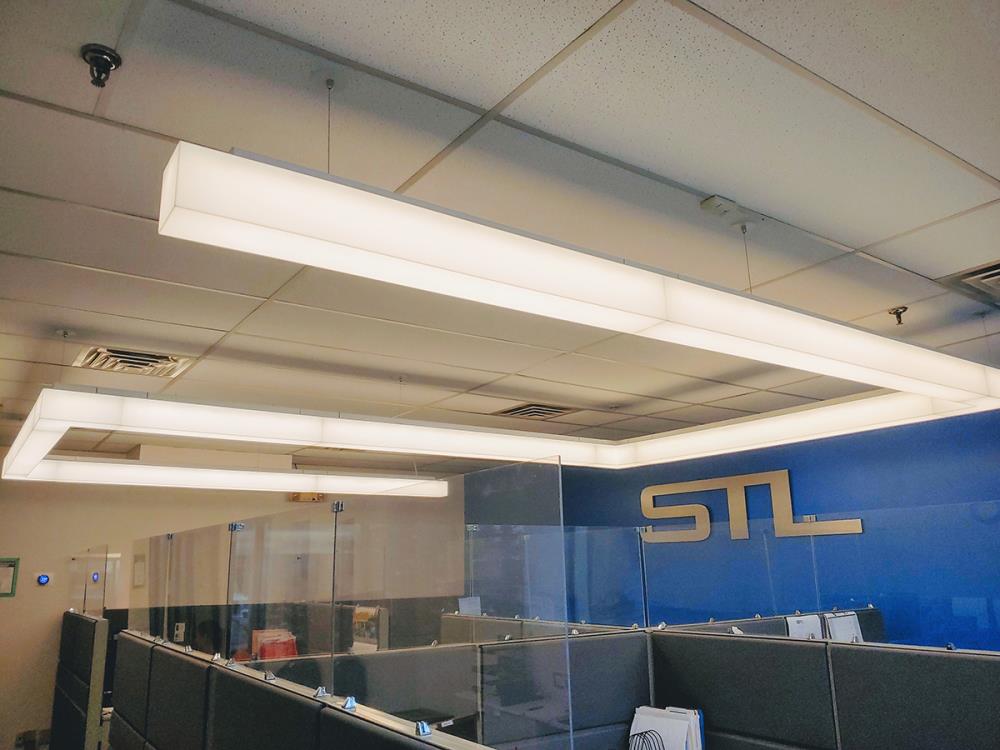

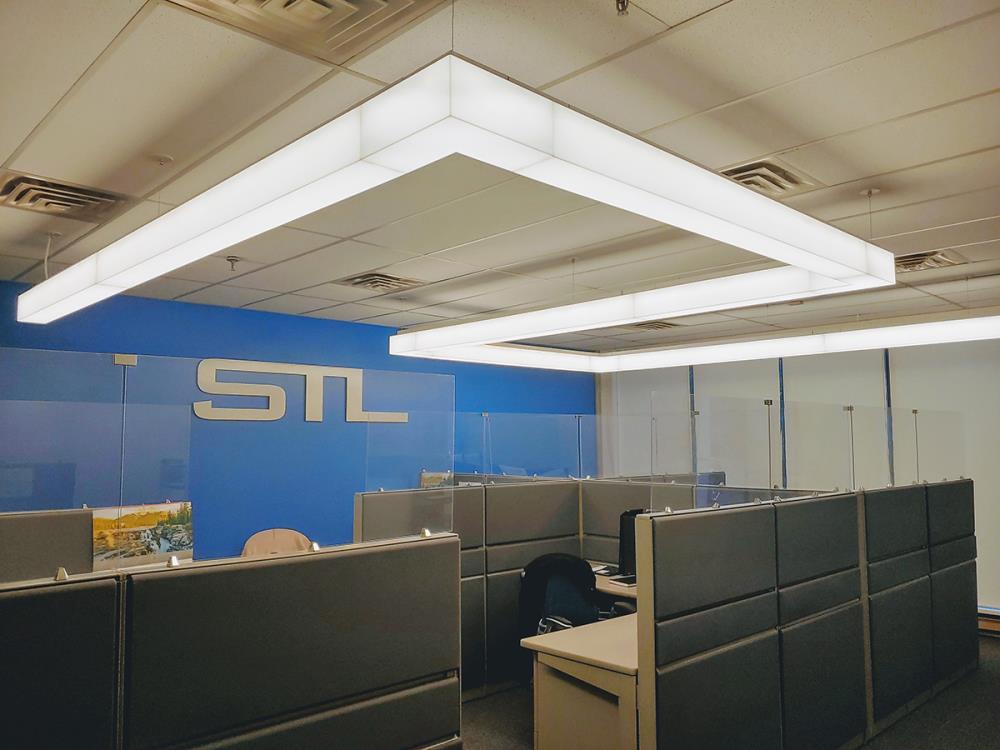

Novato Lines + Arcs - STL Lighting Group
Photograph courtesy of STL Lighting Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - STL Lighting Group
image 44 of 58

Novato Lines + Arcs - STL Lighting Group
Photograph courtesy of STL Lighting Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - STL Lighting Group
image 45 of 58

Novato Lines + Arcs - Elgin Performing Arts Center
Allen Consulting, Inc. (Norman, OK) | Photograph courtesy of Elgin Performing Arts Center

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Elgin Performing Arts Center
image 46 of 58

Novato Lines + Arcs - Elgin Performing Arts Center
Allen Consulting, Inc. (Norman, OK) | Photograph courtesy of Elgin Performing Arts Center

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Elgin Performing Arts Center
image 47 of 58

Novato Lines + Arcs - Elgin Performing Arts Center
Allen Consulting, Inc. (Norman, OK) | Photograph courtesy of Elgin Performing Arts Center

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Elgin Performing Arts Center
image 48 of 58

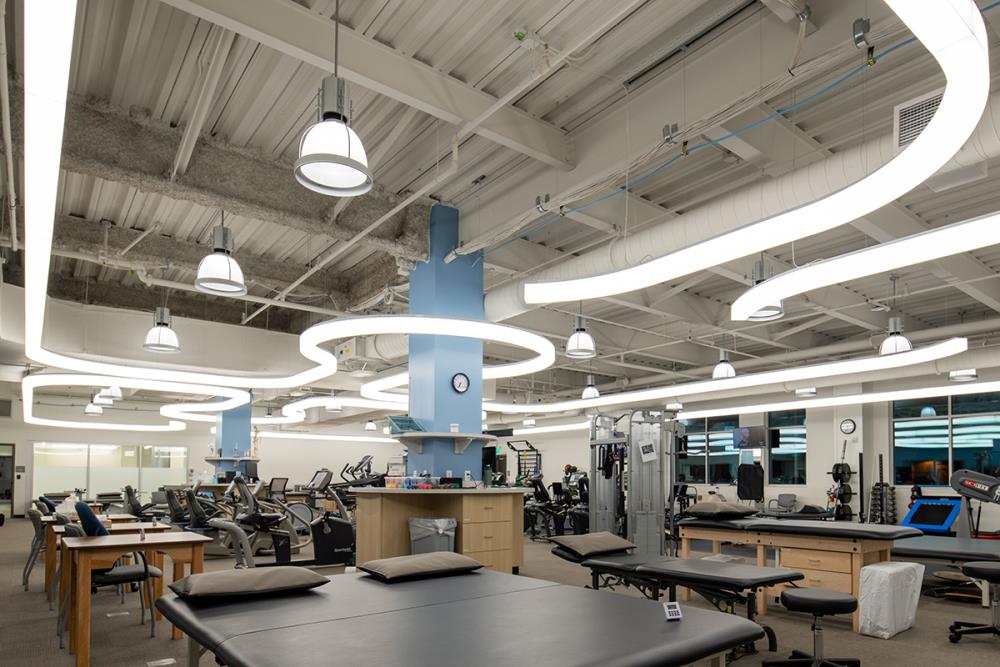

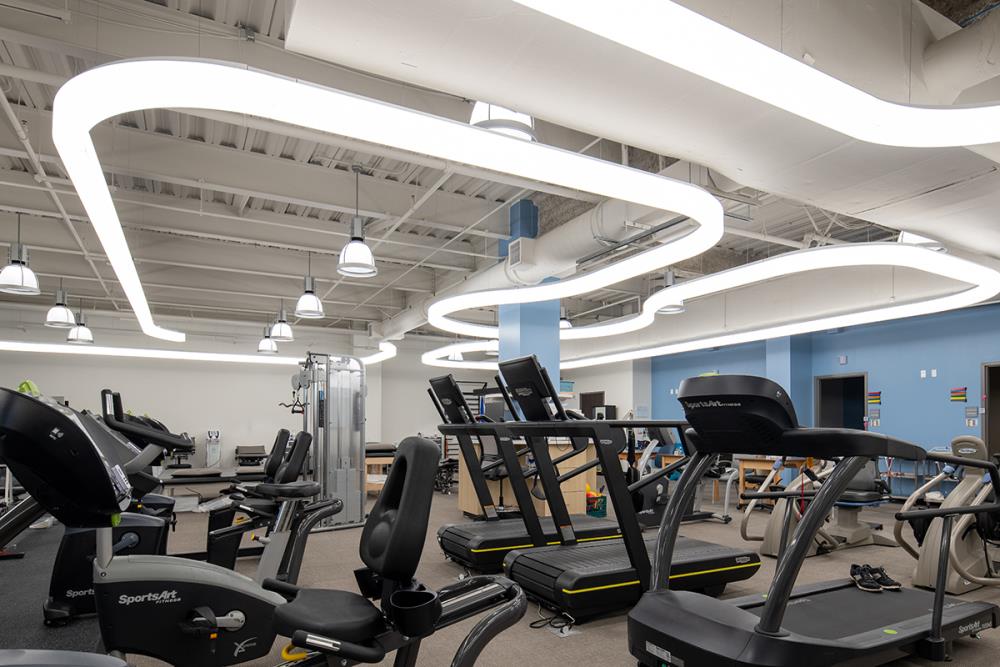

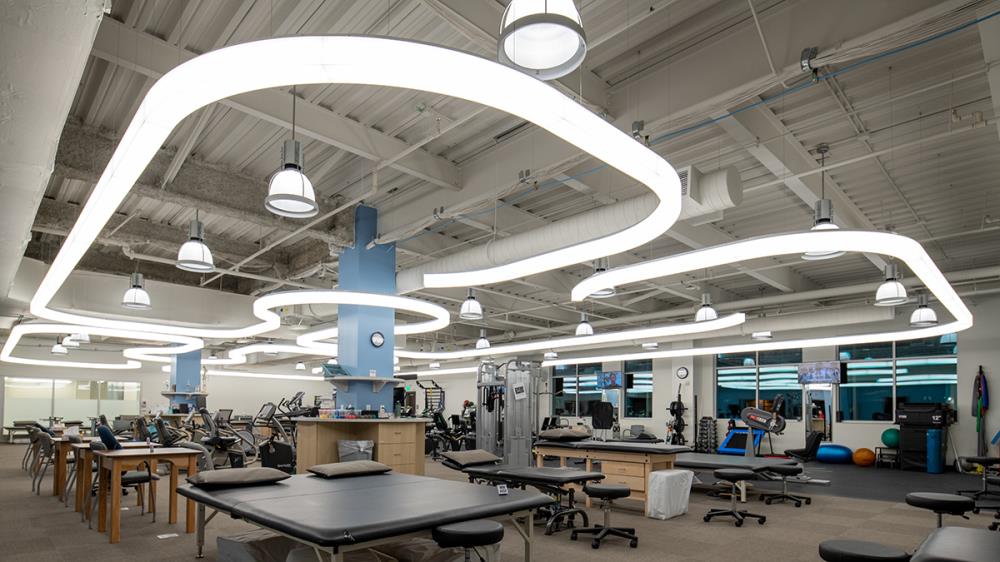

Novato Lines + Arcs - Campbell Clinic Orthopedics
Architect: Davis Stokes Collaborative | Photography: Joe Luther

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Campbell Clinic Orthopedics
image 49 of 58

Novato Lines + Arcs - Campbell Clinic Orthopedics
Architect: Davis Stokes Collaborative | Photography: Joe Luther

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Campbell Clinic Orthopedics
image 50 of 58

Novato Lines + Arcs - Campbell Clinic Orthopedics
Architect: Davis Stokes Collaborative | Photography: Joe Luther

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Campbell Clinic Orthopedics
image 51 of 58

Novato Lines + Arcs - Campbell Clinic Orthopedics
Architect: Davis Stokes Collaborative | Photography: Joe Luther

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Campbell Clinic Orthopedics
image 52 of 58

Novato Lines + Arcs - Capital Center
Lighting Design: Specified Lighting Systems | Photographer: ProNoun Creative

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Capital Center
image 53 of 58

Novato Lines + Arcs - Walton Architectural Group
Syracuse, NY | Lighting Agent: Point Source Group

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Walton Architectural Group
image 54 of 58

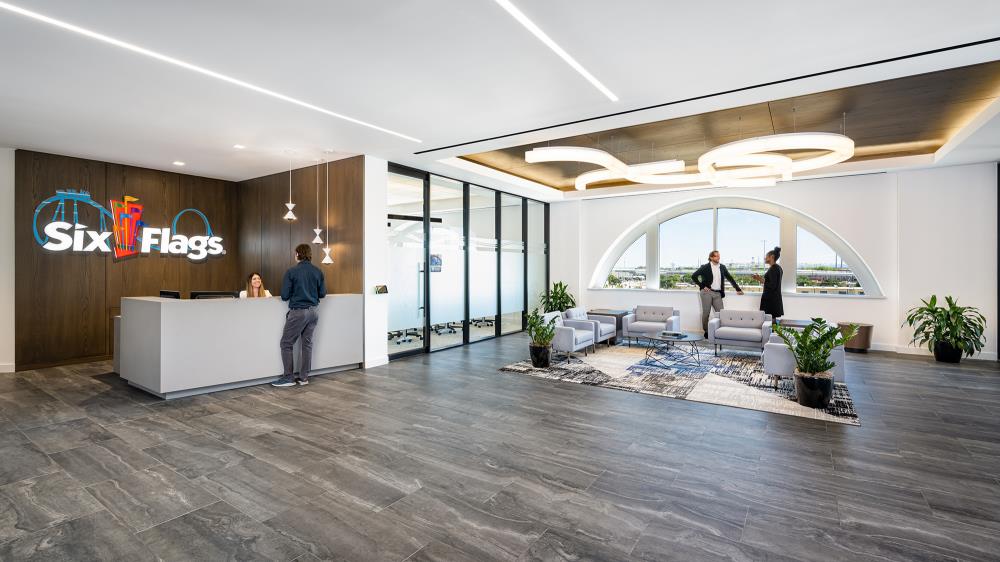

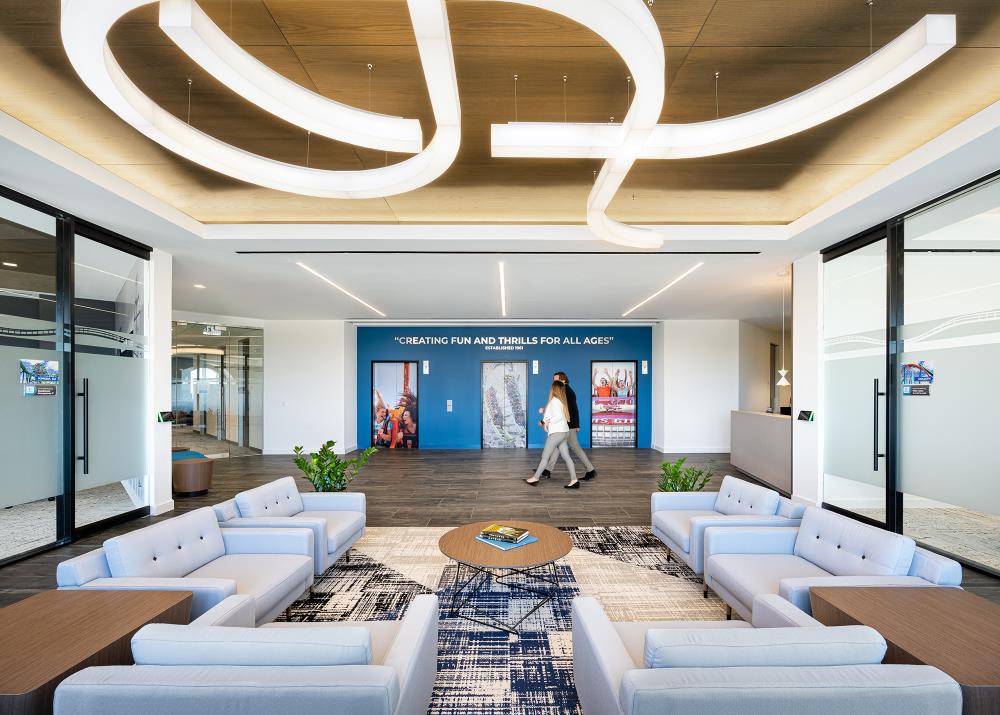

Novato Lines + Arcs - Six Flags HQ
Architect: BOKA Powell | © 2020 Cheyne Smith

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Six Flags HQ
image 55 of 58

Novato Lines + Arcs - Six Flags HQ
Architect: BOKA Powell | © 2020 Cheyne Smith

<< BACK TO THUMBNAILS
Novato Lines + Arcs - Six Flags HQ
image 56 of 58

Novato Ceiling (Modified 4’ x 6’ Rectangle) – Stone Creek Elementary
SJCF Architecture | Gavin Peters Photo

<< BACK TO THUMBNAILS
Novato Ceiling (Modified 4’ x 6’ Rectangle) – Stone Creek Elementary
image 57 of 58

Novato Pendant (Modified 11’ x 6’ Oval) – Stone Creek Elementary
SJCF Architecture | Gavin Peters Photo

<< BACK TO THUMBNAILS
Novato Pendant (Modified 11’ x 6’ Oval) – Stone Creek Elementary
image 58 of 58
