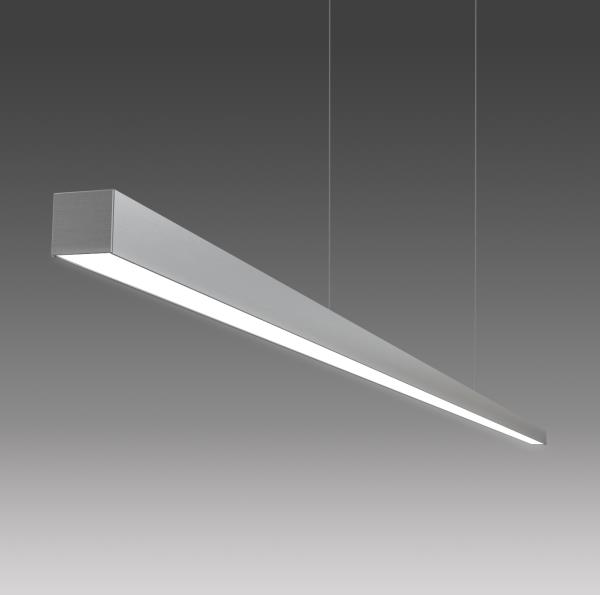

Zynn Lines - Pendant
With a cross-section of just 1.25", Zynn Lines suspends slim lines of light in contemporary spaces. Its seamless housing, energized cables, and refined finish differentiate this minimalist luminaire from the pack. A fundamental design tool for today's architects and designers, Zynn Lines' small scale is easy to design with to create unique lighting configurations: hang as a single pendant, align in rows, create patterns, or arrange in a cluster to make a modern statement.
Zynn Lines - Pendant AIP12117

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Evenly-illuminated acrylic frosted lens is flush with metal housing
  • Aluminum housing is seamless with no visible fasteners
  • Exceptionally clean visual appearance from all angles
  • Go cordless with 1mm energized cable mounting options
  • Available in anodized finishes which provide durable corrosion protection
  • Pairs well with other slimline products in the Zynn family
  • Handcrafted in USA



SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  up to 87 lm/W delivered with power cord
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Remote Class 2 power supply standard. See mounting section for max driver distances.
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: Acrylic frosted lens
  • CONSTRUCTION: Housing fabricated from 6000 series aluminum extrusion
  • FINISH:  Housing and canopy finished to match (except button canopy). To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or various metal finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including continuous runs
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in dry locations with use of energized cables or damp locations with use of power cord; not suitable for exterior applications

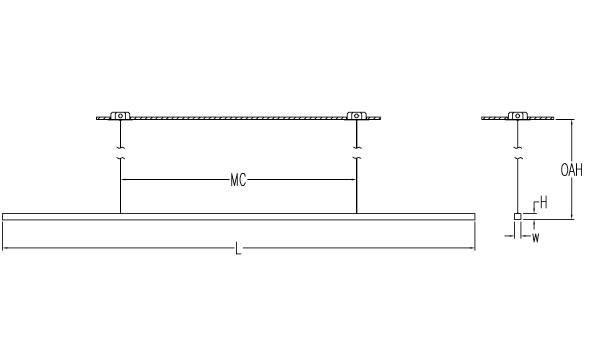

DIMENSIONS

Dimensions
W
1.3 in
3.3 cm
H
1.3 in
3.3 cm
OAH
54 in
137.2 cm
MC
48 in
121.9 cm
L
97.3 in
247.1 cm
Mounting Weight
Approximate: 10 lb (5 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Published luminaire wattages are for fixtures with power cord or "zero length" energized cables. When choosing energized cables, fixture wattages increase 3W per foot of OAH for low output and 6W per foot of OAH for high output. Voltage drop in energized cables reduces fixture efficacy; minimize OAH or choose an aircraft cable and power cord mounting to maximize efficacy. Alternative wattages available upon request.

L37W | White 37W LED Light Engine

Delivered Lumens: 3,212

L56W | White 56W LED Light Engine

Delivered Lumens: 4,861


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

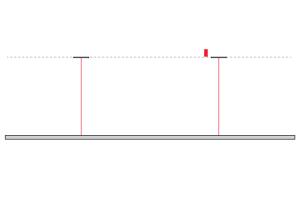

Mounting *

BCE and CEC max distance to the driver (including OAH) is 10' for low output and 6' for high output. BCP and CPC max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory. CEC, CPC and BCP mounts to standard 4" octagonal junction box. BCP option includes standalone (independent of ceiling couplers) junction box cover. BCE option requires access above the ceiling. BCE option uses ceiling coupler (with cable gripper) to mount to electrically non-conductive structure above. Coupler mounts to ceiling using a 3/8" through hole with a maximum structure thickness of 1.25". Excess cable exits ceiling coupler above structure to be connected to Class II power lead (BCE). Field adjustable cables allow fixture to be mounted at an application appropriate height (up to OAH). Please choose one:

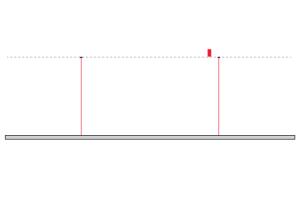

BCE 1 | 1/2" Button Canopy with Energized Cables, Remote Supply

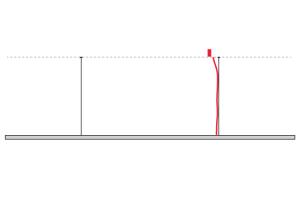

BCP 1 | 1/2" Button Canopy with Aircraft Cables and Power Cord, Remote Supply

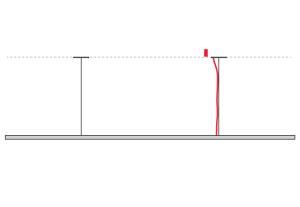

CEC | 5" Canopy with Energized Cables, Remote Supply
CPC | 5" Canopy with Aircraft Cables and Power Cord, Remote Supply

1 Button canopy finished as machined aluminum and not painted to match housing
BCE
BCP
CEC
CPC

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next

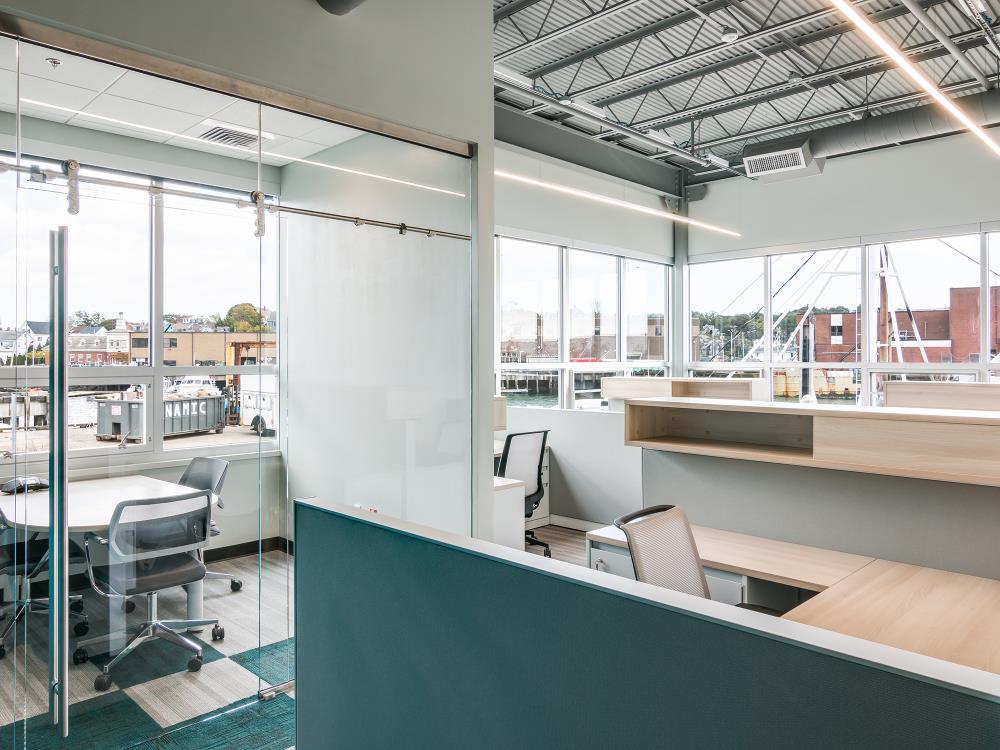

Zynn Lines - Open Office Concept
Emilee Richter | SPI Lighting

Zynn Lines - Open Office Concept
image 1 of 12

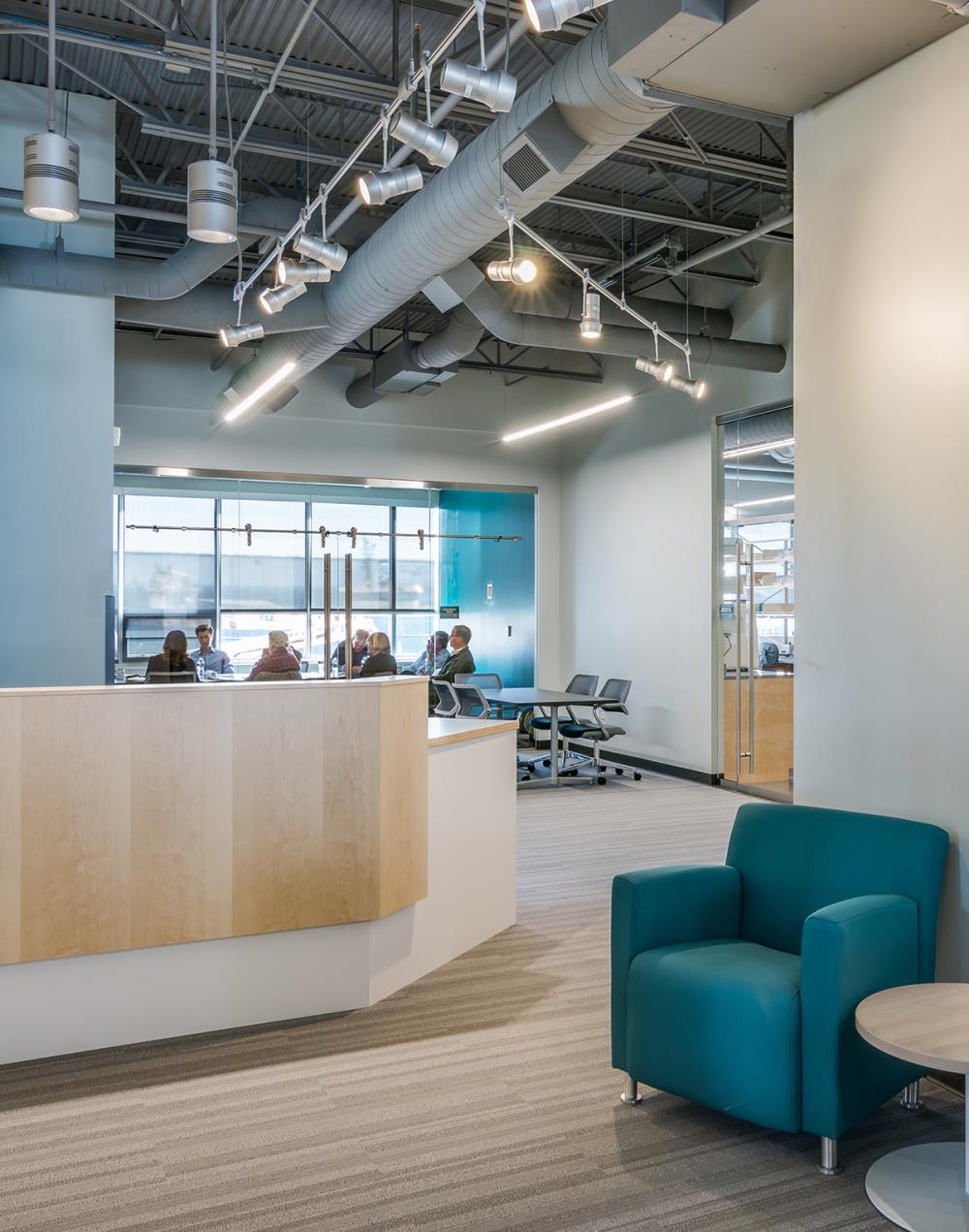

Zynn Lines - Sunset Office Concept
Mike Caine | SPI Lighting

Zynn Lines - Sunset Office Concept
image 2 of 12

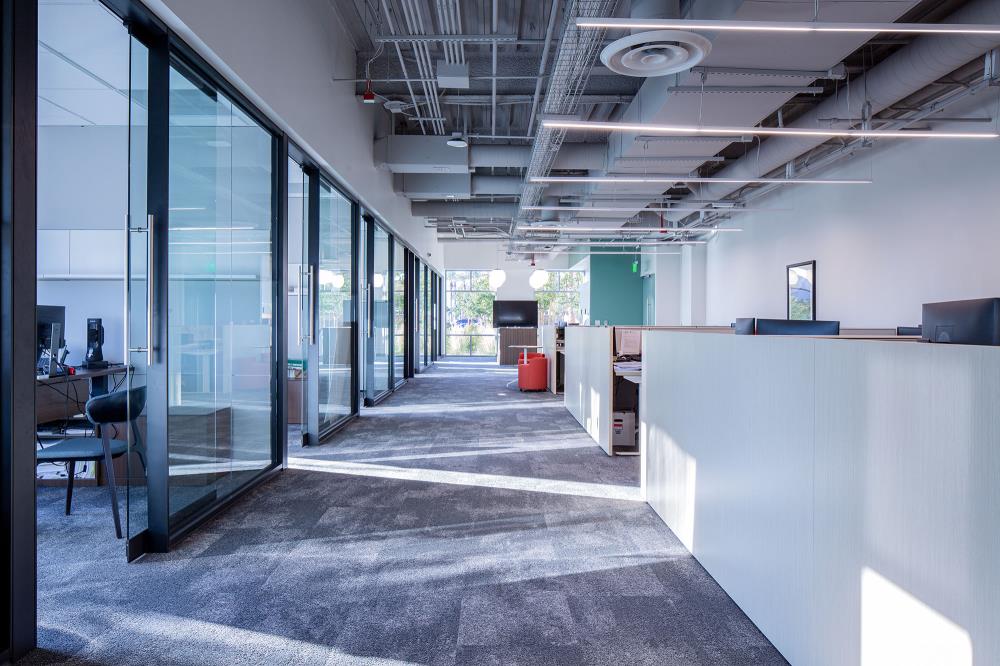

Zynn Lines - Conference Room Concept
Emilee Richter | SPI Lighting

Zynn Lines - Conference Room Concept
image 3 of 12

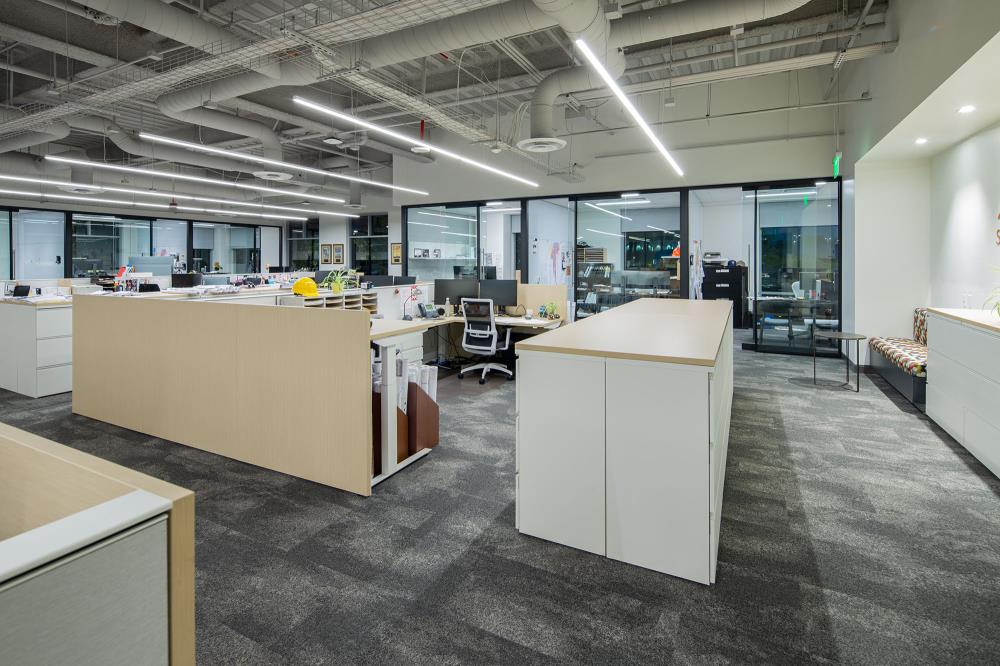

Zynn Lines - Vicarious Visions
Architectural & Engineering Design: LaBella Associates | Mainframe Photography

Zynn Lines - Vicarious Visions
image 4 of 12

Zynn Lines - Gloucester Marine Genomics Institute
Lincoln Architects LLC | Photo Courtesy of Gloucester Marine Genomics Institute

Zynn Lines - Gloucester Marine Genomics Institute
image 5 of 12

Zynn Lines - Gloucester Marine Genomics Institute
Lincoln Architects LLC | Photo Courtesy of Gloucester Marine Genomics Institute

Zynn Lines - Gloucester Marine Genomics Institute
image 6 of 12

Zynn Lines - Gloucester Marine Genomics Institute
Lincoln Architects LLC | Photo Courtesy of Gloucester Marine Genomics Institute

Zynn Lines - Gloucester Marine Genomics Institute
image 7 of 12

Zynn Lines - WATG Irvine
Architect: HLW Los Angeles | Photo: SCI Lighting Solutions

Zynn Lines - WATG Irvine
image 8 of 12

Zynn Lines - WATG Irvine
Architect: HLW Los Angeles | Photo: SCI Lighting Solutions

Zynn Lines - WATG Irvine
image 9 of 12

Zynn Lines - The Howard Hughes Corporation
Ed Vance & Associates Architects | Photography: Terry Mahanna, Mphoto7

Zynn Lines - The Howard Hughes Corporation
image 10 of 12

Zynn Lines - The Howard Hughes Corporation
Ed Vance & Associates Architects | Photography: Terry Mahanna, Mphoto7

Zynn Lines - The Howard Hughes Corporation
image 11 of 12

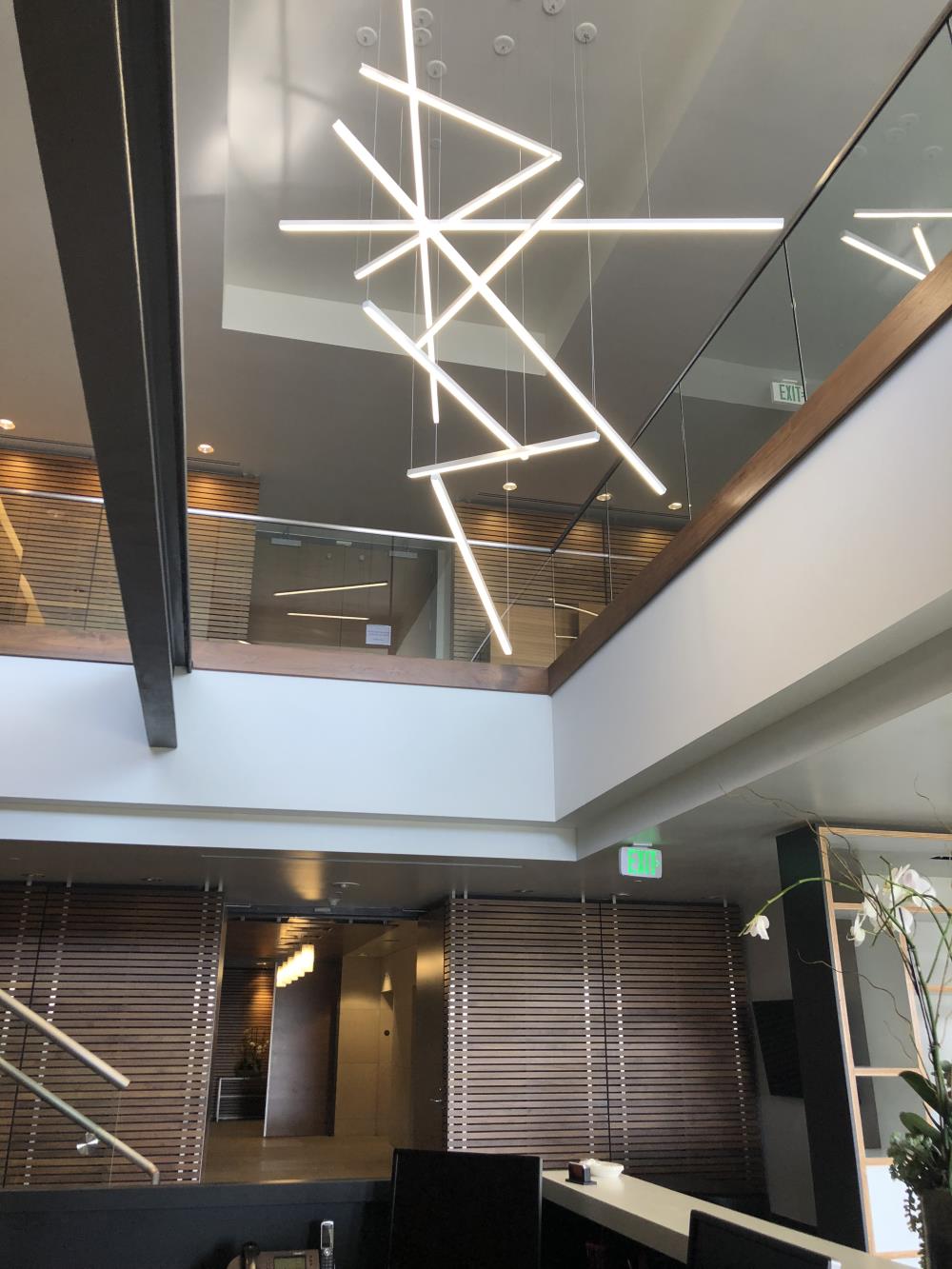

Zynn Soft Cornered Rectangle (Modified) - 521 Fifth Avenue, New York
