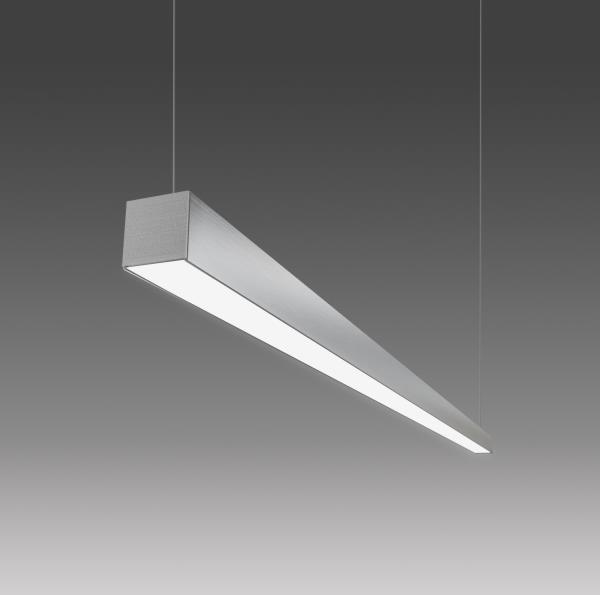

Zynn Lines - Pendant

With a cross-section of just 1.25", Zynn Lines suspends slim lines of light in contemporary spaces. Its seamless housing, energized cables, and refined finish differentiate this minimalist luminaire from the pack.

A fundamental design tool for today's architects and designers, Zynn Lines' small scale is easy to design with to create unique lighting configurations: hang as a single pendant, align in rows, create patterns, or arrange in a cluster to make a modern statement.



LED
Pendant SIZES
12101
49.3 in
AIP12101
12116
49.3 in
AIP12116
12117
97.3 in
AIP12117
12118
97.3 in
AIP12118
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens
Wattages shown are for fixtures with power cord. See spec sheet for energized cable calculations.

Zynn Lines - Pendant

FEATURES & BENEFITS

  • Slim, 1.25” cross-section
  • Available in 4' and 8' lengths
  • Choose from direct or indirect distributions
  • Aluminum housing is seamless with no visible fasteners
  • Exceptionally clean visual appearance from all angles
  • Go cordless with 1mm energized cables or maximize efficacy with power cord mountings
  • Available in anodized finishes which provide durable corrosion protection
  • Pairs well with other slimline products in the Zynn family
  • Handcrafted in USA

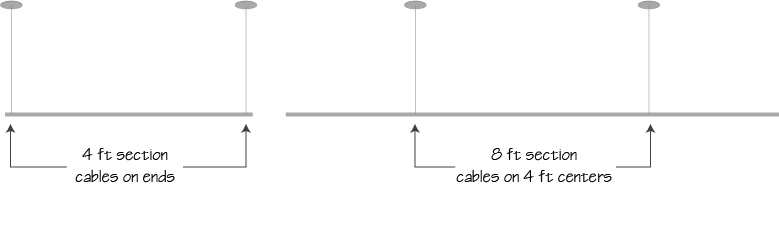

MOUNTING CENTERS

The four-foot pendant has mounting points located just off the ends of the fixture, while the eight-foot pendant has mounting points located on four-foot centers. This maximizes the stability of the fixture either as a standalone piece or linear run.

CANOPIES

Choose from two discreet canopy options.



Catalog ID Size Number of Cables Max Distance to Driver with Energized Cables Max Distance to Driver
with Power Cord
low output high output extra-high output
AIP12101 4 ft 2 21' 14' 8' 15'
AIP12116 4 ft 2 21' 14' 8' 15'
AIP12117 8 ft 2 10' 6' n/a 15'
AIP12118 8 ft 2 10' 6' n/a 15'

 *For extended distances, contact factory.
