NEW! NOVATO GLOBES - Surface
9 Diameters - IK10 PolySatin Diffuser - Consistent Luminance Among All Sizes
NEW! NOVATO GLOBES - Surface
9 Diameters - IK10 PolySatin Diffuser - Consistent Luminance Among All Sizes
AIW12446

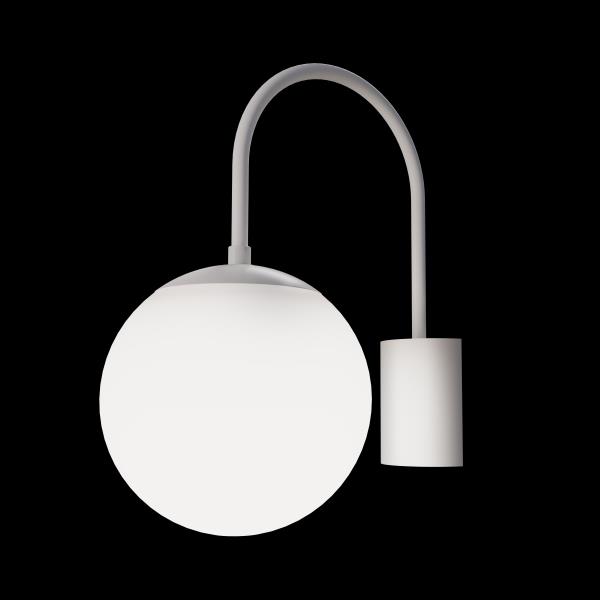

Novato Globes - Surface
SHEPHERDS HOOK: The timeless, classic shape of our Novato Globe elevates any space, and it’s now available in three surface mount options – Wall, Ceiling, and Shepherds Hook. Get exceptional performance and durability with 40% more delivered lumens, an IK10 PolySatin Diffuser, and consistent luminance across all 9 sizes up to 27 inches. From whimsical to elegant, the versatility of Novato Globe Surface makes it a beautiful addition to your space.
Novato Globes - Surface AIW12446

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • 9 sizes to choose from for complete design freedom
  • Consistent luminance between all sizes
  • PolySatin diffuser allows for 40% more delivered lumens
  • All visible fasteners are flush mounted, providing a clean design
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: Static white, tunable white, or RGBW LED light engine
  • CRI: 90
  • LUMEN MAINTENANCE: L80 = >60,000 Hrs.
  • EFFICACY: 121 lm/W
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K (static white); 2700K-6500K (tunable white); 3000K (RGBW)
  • VOLTAGE: 120-277V standard
  • DRIVER: Remote or integral Class 2 power supply standard for white light engines. RGBW has a remote DMX driver; max distance to the driver is 15' (includes OAH).
  • DIMMING: 0-10V controls standard to 1% on static white light engines. DALI-2 (DT8) standard for tunable white. DMX standard for RGBW. Other dimming options are available; contact factory.
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: One-piece, molded thermoplastic with a satin finish. UV inhibitor combined with thermoplastic material before molding.
  • CONSTRUCTION:  Aluminum housing
  • FINISH:  Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors, or brass finishes. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including different sizes
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

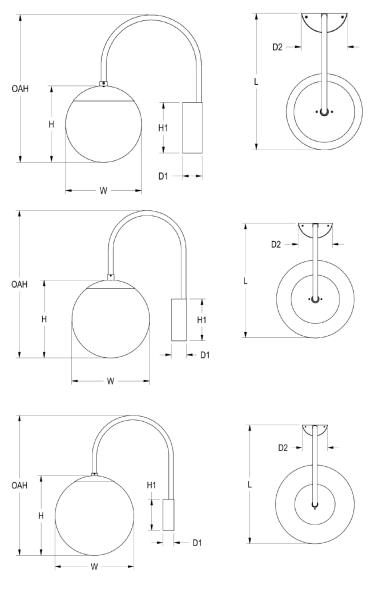

DIMENSIONS

Dimensions
10IN
W
10 in
25.4 cm
H
10 in
25.4 cm
OAH
19.9 in
50.5 cm
L
18 in
45.7 cm
D1
2.6 in
6.6 cm
D2
6.1 in
15.5 cm
H1
6.6 in
16.8 cm
Mounting Weight: Approximate: 7 lb (4 kg)
12IN
W
12 in
30.5 cm
H
12.3 in
31.2 cm
OAH
22.1 in
56.1 cm
L
19 in
48.3 cm
D1
2.6 in
6.6 cm
D2
6.1 in
15.5 cm
H1
6.6 in
16.8 cm
Mounting Weight: Approximate: 12 lb (6 kg)
14IN
W
14 in
35.6 cm
H
14.2 in
36.1 cm
OAH
24.3 in
61.7 cm
L
20 in
50.8 cm
D1
2.6 in
6.6 cm
D2
6.1 in
15.5 cm
H1
6.6 in
16.8 cm
Mounting Weight: Approximate: 14 lb (7 kg)
16IN
W
16 in
40.6 cm
H
16 in
40.6 cm
OAH
30.3 in
77 cm
L
23.6 in
59.9 cm
D1
3.1 in
7.9 cm
D2
7.1 in
18 cm
H1
8.6 in
21.8 cm
Mounting Weight: Approximate: 16 lb (8 kg)
18IN
W
18 in
45.7 cm
H
18.1 in
46 cm
OAH
31.8 in
80.8 cm
L
24.6 in
62.5 cm
D1
3.1 in
7.9 cm
D2
7.1 in
18 cm
H1
8.6 in
21.8 cm
Mounting Weight: Approximate: 20 lb (10 kg)
20IN
W
20 in
50.8 cm
H
20.1 in
51.1 cm
OAH
33.8 in
85.9 cm
L
25.6 in
65 cm
D1
3.1 in
7.9 cm
D2
7.1 in
18 cm
H1
8.6 in
21.8 cm
Mounting Weight: Approximate: 22 lb (10 kg)
22IN
W
22 in
55.9 cm
H
22.2 in
56.4 cm
OAH
39.1 in
99.3 cm
L
33.1 in
84.1 cm
D1
3.1 in
7.9 cm
D2
7.1 in
18 cm
H1
8.6 in
21.8 cm
Mounting Weight: Approximate: 24 lb (11 kg)
24IN
W
24 in
61 cm
H
24.4 in
62 cm
OAH
41.2 in
104.6 cm
L
34.1 in
86.6 cm
D1
3.1 in
7.9 cm
D2
7.1 in
18 cm
H1
8.6 in
21.8 cm
Mounting Weight: Approximate: 26 lb (12 kg)
27IN
W
27 in
68.6 cm
H
27.5 in
69.8 cm
OAH
44 in
111.8 cm
L
35.6 in
90.4 cm
D1
3.1 in
7.9 cm
D2
7.1 in
18 cm
H1
8.6 in
21.8 cm
Mounting Weight: Approximate: 26 lb (12 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

Tunable and RGBW options available with remote power supply only.

10 INCH DIAMETER FIXTURE
10IN-L5W | Static White 5W LED Light Engine

Delivered Lumens: 606
10IN-L5W-T | Tunable White 5W LED Light Engine

Delivered Lumens: 606
10IN-10W | Static White 10W LED Light Engine

Delivered Lumens: 1,211
10IN-L10W-T | Tunable White 10W LED Light Engine

Delivered Lumens: 1,211
10IN-L9W-C | RGBW 9W LED Light Engine

Delivered Lumens: 363
12 INCH DIAMETER FIXTURE
12IN-L7W | Static White 7W LED Light Engine

Delivered Lumens: 848
12IN-L7W-T | Tunable White 7W LED Light Engine

Delivered Lumens: 848
12IN-L14W | Static White 14W LED Light Engine

Delivered Lumens: 1,695
12IN-L14W-T | Tunable White 14W LED Light Engine

Delivered Lumens: 1,695
12IN-L14W-C | RGBW 14W LED Light Engine

Delivered Lumens: 605
14 INCH DIAMETER FIXTURE
14IN-L10W | Static White 10W LED Light Engine

Delivered Lumens: 1,211
14IN-L10W-T | Tunable White 10W LED Light Engine

Delivered Lumens: 1,211
14IN-L19W | Static White 19W LED Light Enging

Delivered Lumens: 2,301
14IN-L19W-T | Tunable White 19W LED Light Engine

Delivered Lumens: 2,301
14IN-L22W-C | RGBW 22W LED Light Engine

Delivered Lumens: 968
16 INCH DIAMETER FIXTURE
16IN-L12W | Static White 12W LED Light Engine

Delivered Lumens: 1,453
16IN-L12W-T | Tunable White 12W LED Light Engine

Delivered Lumens: 1,453
16IN-L24W | Static White 24W LED Light Engine

Delivered Lumens: 2,906
16IN-L24W-T | Tunable White 24W LED Light Engine

Delivered Lumens: 2,906
16IN-L29W-C | RGBW 29W LED Light Engine

Delivered Lumens: 1,331
18 INCH DIAMETER FIXTURE
18IN-L16W | Static White 16W LED Light Engine

Delivered Lumens: 1,938
18IN-L16W-T | Tunable White 16W LED Light Engine

Delivered Lumens: 1,938
18IN-L31W | Static White 31W LED Light Engine

Delivered Lumens: 3,754
18IN-L31W-T | Tunable White 31W LED Light Engine

Delivered Lumens: 3,754
18IN-L36W-C | RGBW 36W LED Light Engine

Delivered Lumens: 1,694
20 INCH DIAMETER FIXTURE
20IN-L20W | Static White 20W LED Light Engine

Delivered Lumens: 2,422
20IN-L20W-T | Tunable White 20W LED Light Engine

Delivered Lumens: 2,422
20IN-L39W | Static White 39W LED Light Engine

Delivered Lumens: 4,723
20IN-L39W-T | Tunable White 39W LED Light Engine

Delivered Lumens: 4,723
20IN-L43W-C | RGBW 43W LED Light Engine

Delivered Lumens: 1,936
22 INCH DIAMETER FIXTURE
22IN-L46W-T | Tunable White 46W LED Light Engine

Delivered Lumens: 2,760
22IN-L24W | Static White 24W LED Light Engine

Delivered Lumens: 2,906
22IN-L24W-T | Tunable White 24W LED Light Engine

Delivered Lumens: 2,906
22IN-L46W | Static White 46W LED Light Engine

Delivered Lumens: 5,571
22IN-L50W-C | RGBW 50W LED Light Engine

Delivered Lumens: 2,299
24 INCH DIAMETER FIXTURE
24IN-L28W | Static White 28W LED Light Engine

Delivered Lumens: 3,391
24IN-L28W-T | Tunable White 28W LED Light Engine

Delivered Lumens: 3,391
24IN-L55W | Static White 55W LED Light Engine

Delivered Lumens: 6,661
24IN-L55W-T | Tunable White 55W LED Light Engine

Delivered Lumens: 6,661
24IN-L57W-C | RGBW 57W LED Light Engine

Delivered Lumens: 2,662
27 INCH DIAMETER FIXTURE
27IN-L35W | Static White 35W LED Light Engine

Delivered Lumens: 4,239
27IN-L35W-T | Tunable White 35W LED Light Engine

Delivered Lumens: 4,239
27IN-L71W | Static White 71W LED Light Engine

Delivered Lumens: 8,598
27IN-L71W-T | Tunable White 71W LED Light Engine

Delivered Lumens: 8,598
27IN-L71W-C | RGBW 71W LED Light Engine

Delivered Lumens: 3,267

Voltage *

120-277V | Universal Voltage

Lamp Options

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT
TUN | Tunable White 2700K-6500K CCT
RGBW | RGBW 3000K CCT

CRI

DF_90+HE | 90+ High Efficacy

Mounting

DF_IPS | Integral Power Supply
RPS | Remote Power Supply

Emergency

EMR | Emergency Battery Remote
