Radial Pendant
EIP12149 38.00 in
Radial Pendant
High bays are a common answer for lighting high-ceiling applications, but they can produce harsh glare that perpetuates eye strain and fatigue. High-output indirect pendants provide a more comfortable alternative by eliminating individual points of brightness and, instead, use the entire ceiling to gently diffuse light. Think of this sleek luminaire, which delivers more than 65,000 lumens in a uniform 360° radial spread, as a better way to light large industrial and commercial spaces. It features field adjustability to ensure an optimum distribution. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.
Radial Pendant EIP12149

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Increase visual comfort, reduce glare and improve light uniformity with indirect lighting
  • Delivers 59,800 lumens in a true 360° pattern
  • Perfect design tool for lighting large, open areas
  • Ultra slim 3.5" profile
  • Clean design features hidden heat sinks and no visible fasteners within view
  • Standard top lens corrects color-over-angle discoloration, delivering a clean white beam suitable for highly-finished ceilings and walls
  • Standard black cut-off shields reduce glare
  • Comparable output to 1,000W Metal Halide with a 39% energy savings
  • Field adjustable distribution ratchets to five positions: 35°, 17.5°, 0°, -17.5°, -35° while maintaining a static housing (ships from factory at 35° tilt)
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  up to 130 lm/W delivered with High Output option
  • CCT:  2700K, 3000k, 3500K, 4000K or 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Fully potted integral Class 1 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • CONSTRUCTION:  Aluminum construction; precision injection molded optics
  • FINISH:  Housing and canopy finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including wire guard options
  • APPROVALS:  ETL listed to UL standards (US and Canada) for use in damp locations; not recommended for exterior applications

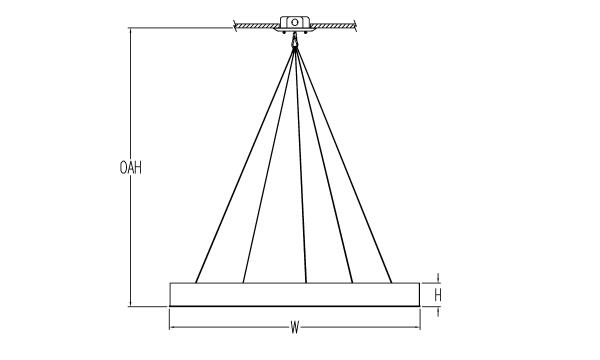

DIMENSIONS

Dimensions
W
38 in
96.5 cm
H
3.5 in
8.9 cm
OAH
84 in
213.4 cm
Mounting Weight
Approximate: 50 lb (23 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application.

L460W | White 460W LED Light Engine

Delivered Lumens: 59,800


Voltage *

120-277V | Universal Voltage

Lamp Options *

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.

2700K | 2700K CCT
3000K | 3000K CCT
3500K 1 | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

1 Apply .91 multiplier for delivered lumens

CRI *

DF_80 | (default)
90 2

2 Not available in 5000K

Mounting *

Mounts with 5 steel aircraft cables and white power cord to 6.5" canopy. Mounts over standard 4" octagonal junction box with auxiliary mounting holes; additional mounting structure and hardware required (by others).

DF_AC | Aircraft cable and power cord (default)

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture. The OAH min/max range is determined only by the physical limitations of the luminaire. Appropriate mounting heights are separately calculated from photometric lighting layouts and recommended from the specifier. If the specified mounting height is outside of the OAH range, please contact the factory.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next

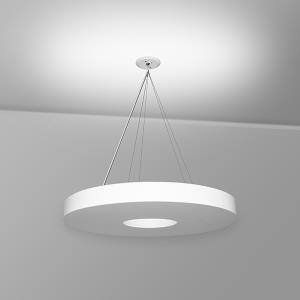

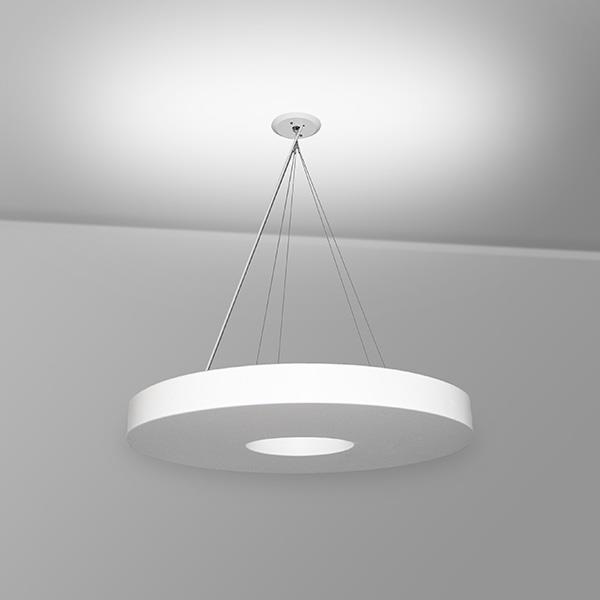

Radial Pendant - Rendering
Mike Caine | SPI Lighting

<< BACK TO THUMBNAILS
Radial Pendant - Rendering
image 1 of 2

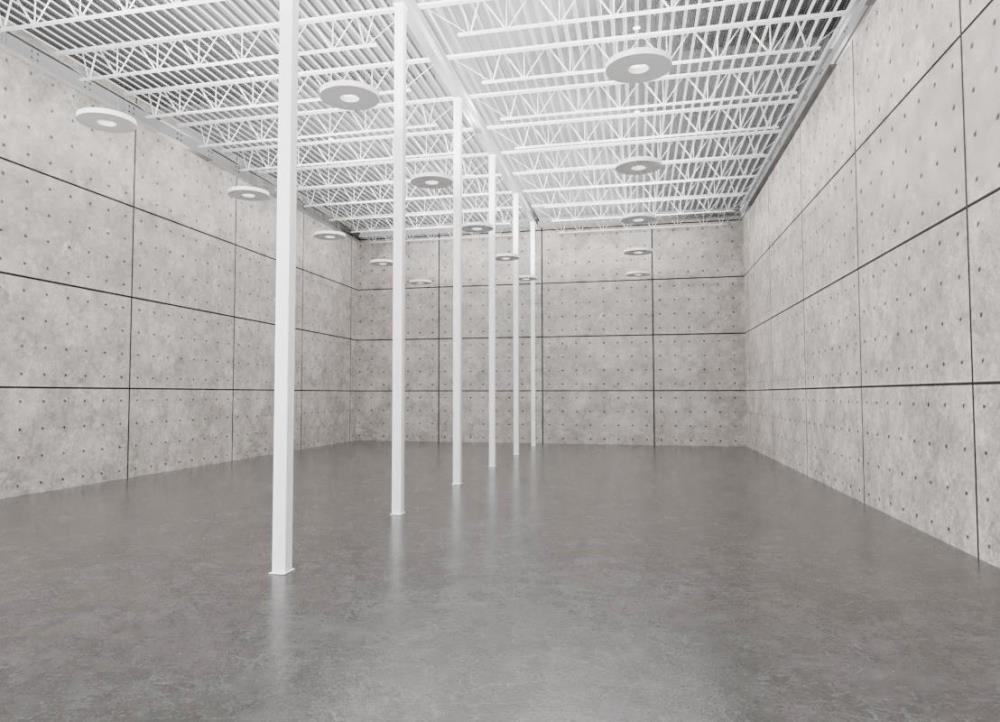

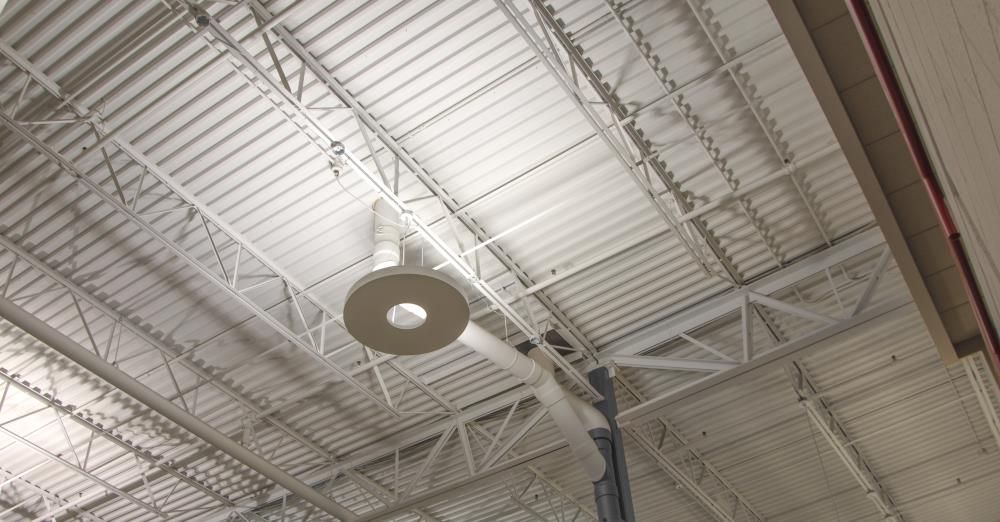

Radial Pendant - SPI Warehouse
