Echo Reflections 9.0 Multiples
EIP12286 46.60 in
Echo Reflections 9.0 Multiples

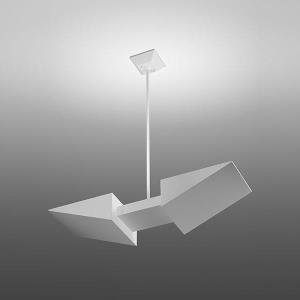

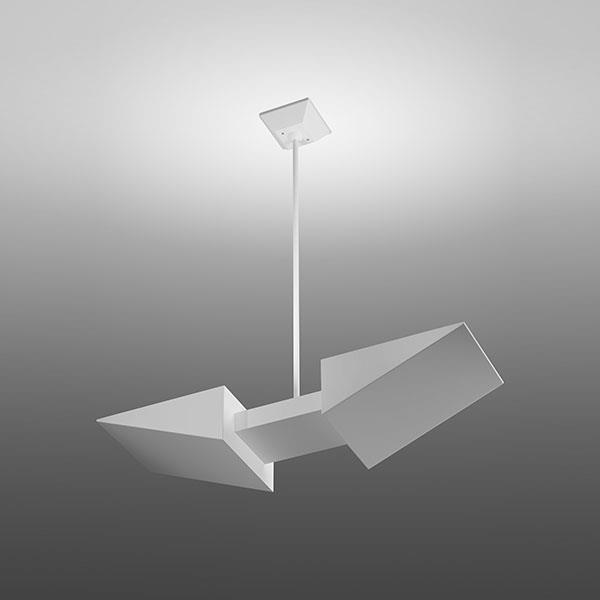

Illuminate larger spaces more comfortably with indirect lighting. This versatile multi-head pendant combines the power of multiple fixtures into one high-performance luminaire. It offers field adjustability and, unlike similar products, adjustable light engines that leave the fixture static. For a complimentary lighting layout, contact our applications team at
Echo Reflections 9.0 Multiples EIP12286

Start building your product.

Specify your options and generate a personalized spec sheet.


  • Increase visual comfort, reduce glare and improve light uniformity with indirect lighting

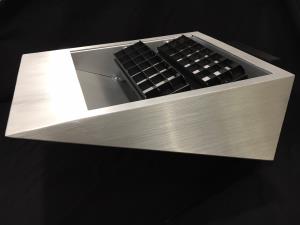

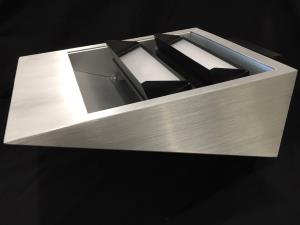

  • Field adjustable distribution ratchets to five positions: 35°, 17.5°, 0°, -17.5°, -35° while maintaining a static housing (ships from factory at 35° tilt)
  • Solves a wide variety of lighting challenges in one package
  • Standard top lens corrects color-over-angle discoloration, delivering a clean white beam suitable for highly-finished ceilings and walls
  • Clean design features hidden heat sinks and no visible fasteners within view
  • Robust construction with natatorium option: rustproof aluminum housing, minimum 2 mils powder coat paint finish (except BAL finish), corrosion-resistant fasteners, gasketed and fully sealed LED modules, fully potted power supply
  • Handcrafted in USA


  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: Up to 130 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Fully potted integral Class 2 power supply standard
  • MAX AMBIENT OPERATING TEMP: Indirect = 42°C (108°F)
  • DIMMING: 0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • CONSTRUCTION: Aluminum construction; precision injection molded optics
  • FINISH: Housing and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors or brushed aluminum finish. RAL®, Pantone®, or custom finishes available upon request.
  • MOUNTING: Mounts over standard 4" octagonal junction box with auxiliary mounting holes. Standard 45 degree swivel canopy.
  • MODIFICATIONS: Consult factory for all modification requests
  • APPROVALS: ETL listed to UL standards (US and Canada) for use in damp locations; not recommended for exterior applications


13 in
33 cm
7.3 in
18.5 cm
48 in
121.9 cm
17.3 in
43.9 cm
46.6 in
118.4 cm
Mounting Weight
Approximate: 30 lb (14 kg)
Your Configuration:
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.


Job Name:


To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

(2) 92W | White 184W LED Light Engine

Delivered Lumens: 23,920

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT


DF_80 1 | (default)
90 2

1 Not available in 2700K
2 Not available in 5000K


10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote


Shield the source from view at certain angles, absorb or block unwanted light, or reflect and redirect light with optional cut-off shields and louvers. Cut-off shield (CS) and louver (LV) options cannot be used together.

CS 3 | Cut-Off Shield
LV 4 | Louver

3 Apply .85 multiplier for delivered lumens
4 Apply .55 multiplier for delivered lumens


When the NAT option is selected, you can feel confident that the luminaire specified is designed with high-quality materials that will withstand the corrosive environment of indoor pools. Electrical components are protected from moisture and the fixture has been tested to operate in warm ambient temperatures.

NAT | Natatorium Construction
F | Fusing

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

Request a modification
