Echo Reflections 9.0 Multiples
Echo Reflections 9.0 Multiples

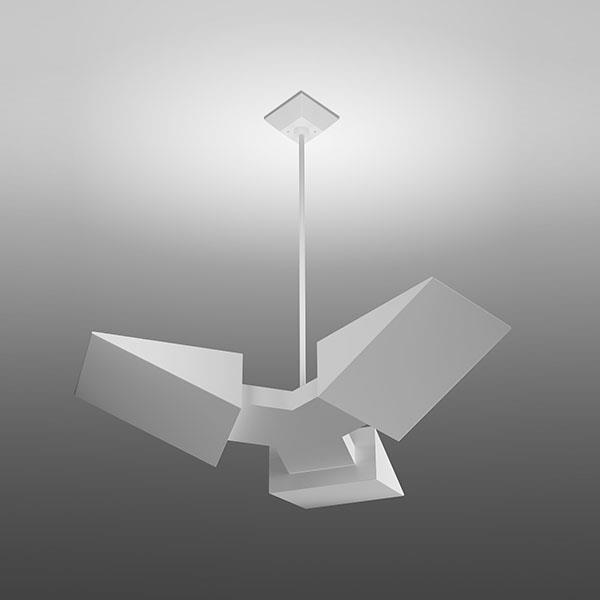

Illuminate larger spaces more comfortably with indirect lighting. This versatile multi-head pendant combines the power of multiple fixtures into one high-performance luminaire.

It offers field adjustability and, unlike similar products, adjustable light engines that leave the fixture static.

For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

Echo Reflections 9.0 Multiples

POWERFUL LATERAL INDIRECT LIGHTING

Echo Reflections 9.0 Multiples high-performance pendants make it possible to incorporate quality indirect lighting into any high ceiling application, increasing visual comfort, reducing glare, and improving light uniformity. Indirect lighting uses the ceiling’s surface to diffuse the light, controlling brightness ratios and producing proper ambient lighting throughout the room. It produces the balanced lighting you’re looking for while concealing the light source from view.

Moreover, this luminaire’s multi-head design and monopoint mounting consolidates fixtures and simplifies electrical requirements. And with high efficacy of more than 90 lumens per watt, you can illuminate large spaces—not only more comfortably—but more economically, too.

Available in 23,500, 39,000, or 52,000 lumen packages. Contact the factory for higher output variations topping 100,000 lumens per fixture.



ADJUST THE LIGHT, NOT THE FIXTURE

The innovative field-adjustable design provides better illumination on walls and in corners. By adjusting each module’s distribution independently, you can direct more light where you want it – towards the center of the room. Unlike similar products, adjustments are internal, ensuring a uniform appearance even when distributions vary. Each module’s ratcheting mechanism easily adjusts in seconds and requires no tools.



BUILT TO LAST IN HARSH ENVIRONMENTS

This natatorium-rated fixture is specially constructed to protect it from the humidity and corrosive chemical vapors found in pools. Echo Reflections 9.0 Multiples features:

  • Aluminum construction (lightweight and rust-proof)
  • 2 mils powder coat paint to prevent corrosion
  • Corrosion-resistant stainless steel fasteners
  • IP68 rated LED light engine that is protected against the effects of continuous immersion in water
  • Fully potted integral power supply that is sealed with epoxy to protect internal components
  • Closed cell gaskets and seals ensure moisture stays out of the power supply box

SPI Lighting is an expert in natatorium lighting. We have designed fixtures to safely illuminate Olympic, competition, school, and community pools for more than 30 years.


CORRECTS FOR COLOR-OVER-ANGLE DISCOLORATION

Inherent within LEDs is a color-over-angle (COA) variation caused by phosphor path length differences. Along the edge, the angle light that exits the LED is larger, causing more absorption of blue light. What remains is a more yellow, phosphor-converted light.


This non-uniformity in color can be a significant concern, particularly in spaces with light colored walls or ceilings. Echo Reflections 9.0 Multiples includes a standard top lens that corrects for this. The diffuser film color mixes the output, delivering a clean white beam suitable for highly-finished ceilings and walls.
