FEATURES & BENEFITS
- All visible fasteners are flush mounted, providing a clean design
- Locks in desired orientation for precise fixture alignment
- Anodized finish provides optimal thermal effectiveness and durable corrosion protection
- Versatile design allows fixture to be mounted in any orientation
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- CRI: 80+ (contact factory for 90+)
- LUMEN MAINTENANCE: L80 = >60,000 Hrs at 38°C ambient temperature
- EFFICACY: 82 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- DRIVER: Includes remote Class 2 power supply and enclosure. Black weatherproof power cord with watertight fittings. 36" lead length standard.
- DIMMING: 0-10V controls standard to 1%.
- DIFFUSER: Optical grade clear acrylic lens optimizes performance
- CONSTRUCTION: Extruded aluminum construction provides durable protection for internal components and is recyclable
- FINISH: Housing available in anodized finishes only. Mounting components painted to match.
- MODIFICATIONS: Consult factory for all modification requests; including static LED colors
- APPROVALS: ETL listed to UL standards (US and Canada) for use in wet locations. IP66 rated fixture per International Electrotechnical Commission (IEC) certifies fixture as dust-tight and protected against powerful water jets.
Approximate: 25 lb (12 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
Alternative wattages available upon request.
L8W | White 8W LED Light Engine
Delivered Lumens: 657
L14W | White 14W LED Light Engine
Delivered Lumens: 1,149
L28W | White 28W LED Light Engine
Delivered Lumens: 2,299
L56W | White 56W LED Light Engine
Delivered Lumens: 4,598
1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

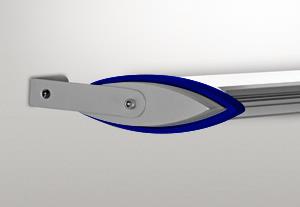

CA01 available to specify a Color Accent for the narrow band between end cap and extrusion.
