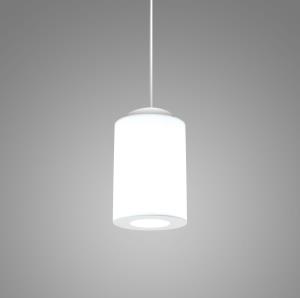

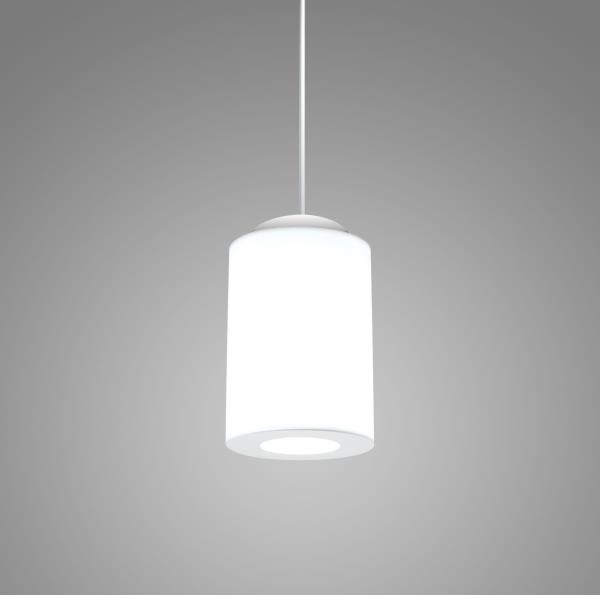

Add elegance and radiance to your most discerning spaces. This luminous cylinder's integral regressed downlight delivers correct light levels where needed. Ambient illumination provides a gentle visual warm-up to the higher output downlight source while adding light to the vertical plane to open up spaces. Meticulous attention to detail ensures suitability for the highest-end applications. Integral power supply enables a discreet 5" canopy.
Vallejo LC 8", 10", 12" - Pendant SIP12082

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Fixture has a bi-planar ambient finished bottom detail with or without the regressed downlight component
  • Integral regressed downlight available in 1900lm and beam spread of narrow, medium, wide or very wide
  • Matte acrylic ambient cylinder diffuser is balanced with the proper amount of illumination while providing a sensible wattage allotment
  • Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
  • Ambient and downlight components are standard with separate switching and 0-10v dimming
  • Handcrafted in USA

 SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine (contact factory for RGBW or Tunable White)
  • CRI: 80+ or 90+)
  • LUMEN MAINTENANCE:  L80 = >60,000 Hrs.
  • EFFICACY:  up to 103 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Integral Class 2 power supply standard
  • DIMMING:  0-10V controls standard to 1% on LED light engines
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser optional
  • CONSTRUCTION:  Aluminum
  • FINISH:  End plates, power supply enclosure, and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including RGBW or Tunable White
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

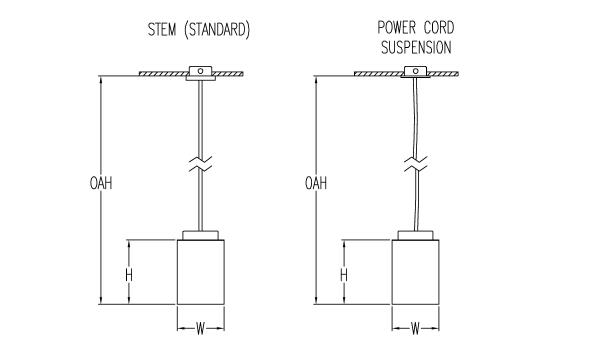

DIMENSIONS

Dimensions
W
8 in
20.3 cm
H
12 in
30.5 cm
OAH
60 in
152.4 cm
Mounting Weight
Approximate: 15 lb (7 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L10W | White 10W LED Light Engine

Delivered Lumens: 980


Voltage *

120-277V | Universal Voltage

Lamp Options *

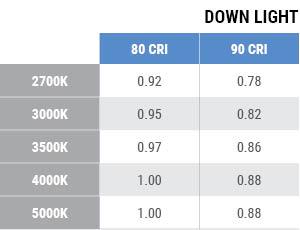

Apply multiplier from charts for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Light Source Option *

If you’re specifying a downlight option, layer the ambient and downlight IES files. Downlight CCT will match the Lamp Options selection above. Please choose one:

18W-26° Narrow | 18W (1900 delivered lumens) Downlight - 26° Beam

18W-40° Medium | 18W (1900 delivered lumens) Downlight - 40° Beam

18W-55° Wide | 18W (1900 delivered lumens) Downlight - 55° Beam

18W-90° Very Wide | 18W (1900 delivered lumens) Downlight - 90° Beam

No DL | No Downlight

18W-26° Narrow
18W-40° Medium
18W-55° Wide
18W-90° Very Wide

Diffuser *

DF_MA01 | Matte Acrylic Diffuser Lens (default)
OA | White Gloss Acrylic Diffuser

MA01
OA

Mounting *

Mounts to standard 4" octagonal junction box. Stem mount standard with 22.5 degree swivel. White power cord suspension optional (adjustable up to OAH) Power cord suspension option (PCS) must combine ambient and downlight to one circuit with a common 0-10V dimming

DF_STM | 5.5" Canopy Stem Mount (default)
PCS 1 | 5.5" Canopy & Power Cord Suspension

1 Separate switching not available

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up.

EMR | Emergency Battery Remote

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
Request a modification
prev
close
next

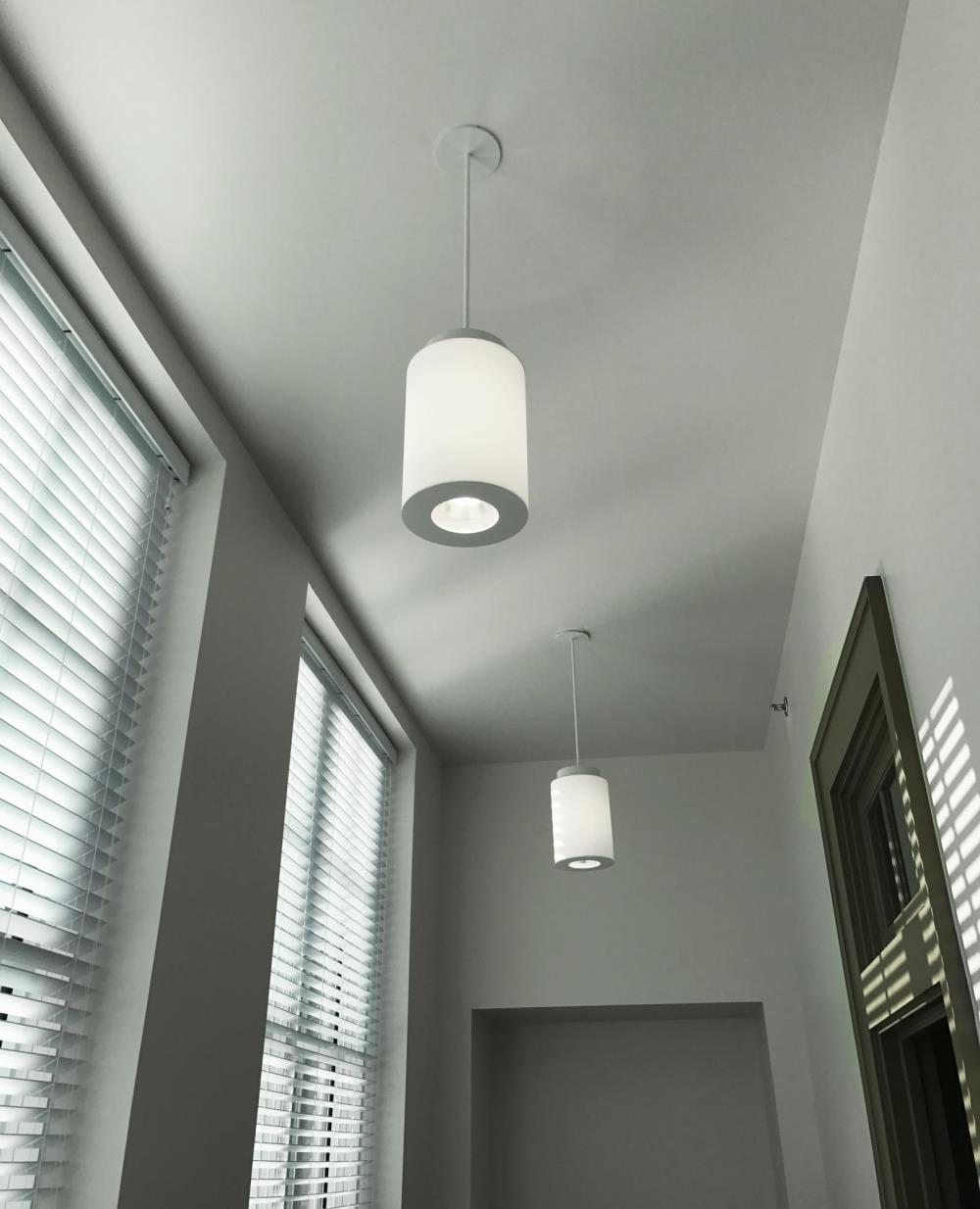

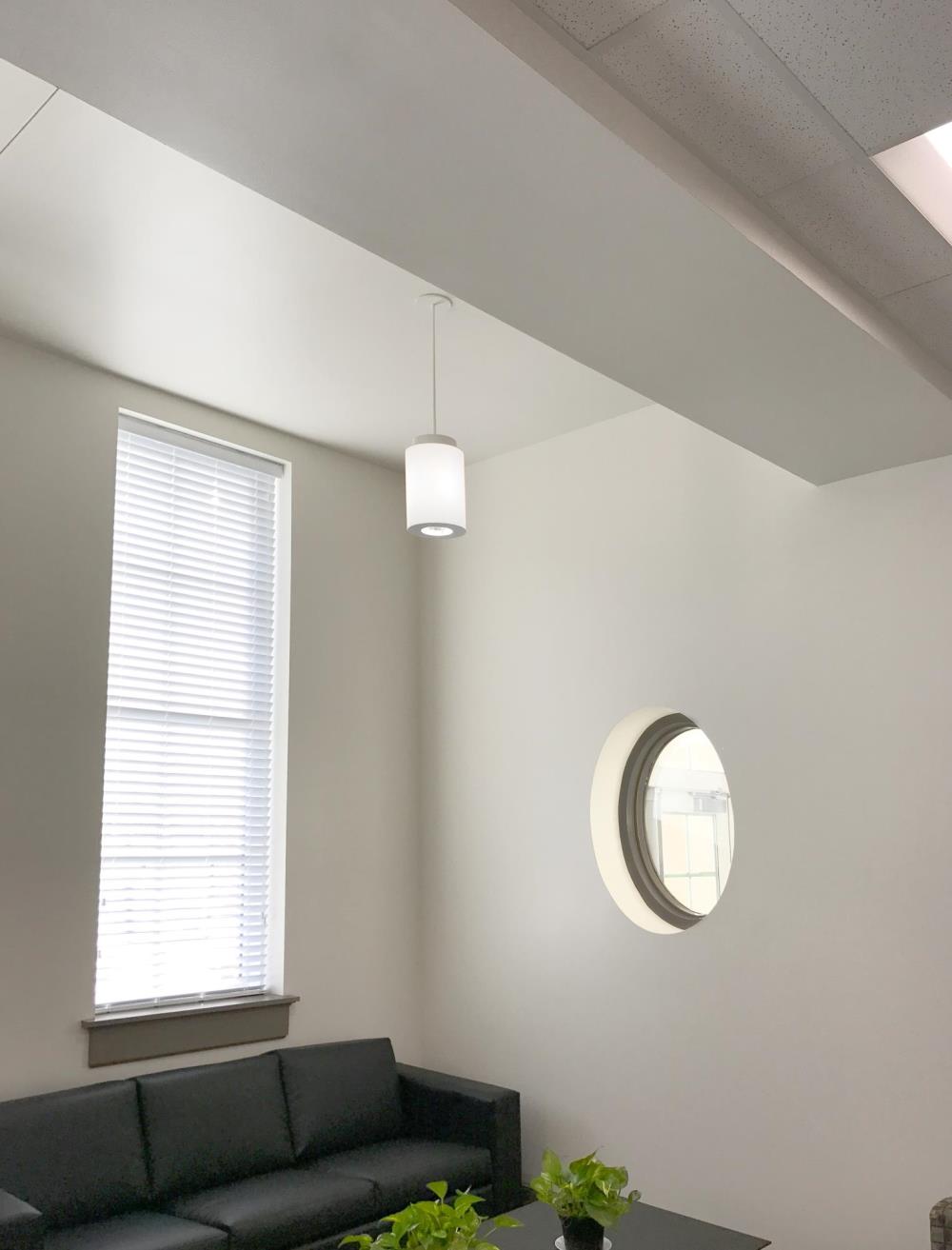

Vallejo LC - Griffin Region College and Career Academy
Architect: Manley Spangler Smith Architects | Photographer: Matt Shepley, Smart Lighting Solutions

<< BACK TO THUMBNAILS
Vallejo LC - Griffin Region College and Career Academy
image 1 of 21

Vallejo LC - Griffin Region College and Career Academy
Architect: Manley Spangler Smith Architects | Photographer: Matt Shepley, Smart Lighting Solutions

<< BACK TO THUMBNAILS
Vallejo LC - Griffin Region College and Career Academy
image 2 of 21

Vallejo LC - Griffin Region College and Career Academy
Architect: Manley Spangler Smith Architects | Photographer: Matt Shepley, Smart Lighting Solutions

<< BACK TO THUMBNAILS
Vallejo LC - Griffin Region College and Career Academy
image 3 of 21

Vallejo LC - Private Residence
Photographer: SPI Lighting

<< BACK TO THUMBNAILS
Vallejo LC - Private Residence
image 4 of 21

Vallejo LC - Griffin Region College and Career Academy
Architect: Manley Spangler Smith Architects | Photographer: Matt Shepley, Smart Lighting Solutions

<< BACK TO THUMBNAILS
Vallejo LC - Griffin Region College and Career Academy
image 5 of 21

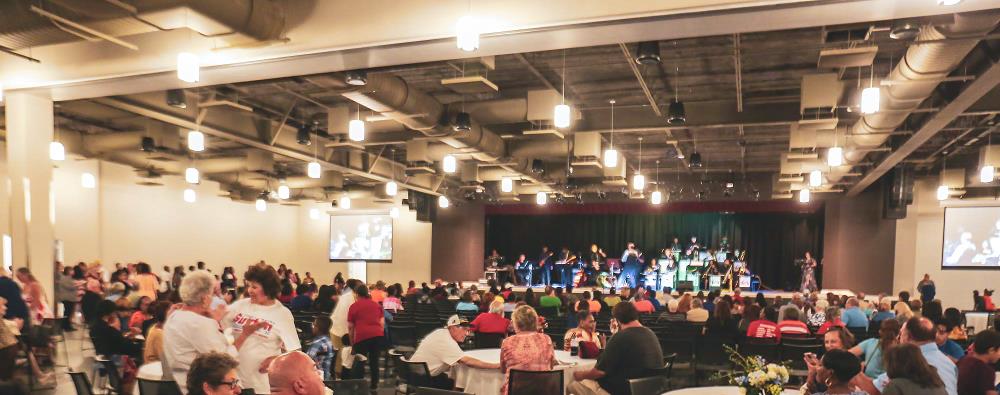

Vallejo LC - Calvary Chapel Spokane Valley
Photographer: Collin Johnson, Calvary Chapel

<< BACK TO THUMBNAILS
Vallejo LC - Calvary Chapel Spokane Valley
image 6 of 21

Vallejo LC - Yale Common Room
Photographer: Vivek Suri

<< BACK TO THUMBNAILS
Vallejo LC - Yale Common Room
image 7 of 21

Vallejo LC - The Venue at Coosa Landing
Photographer: The Venue at Coosa Landing

<< BACK TO THUMBNAILS
Vallejo LC - The Venue at Coosa Landing
image 8 of 21

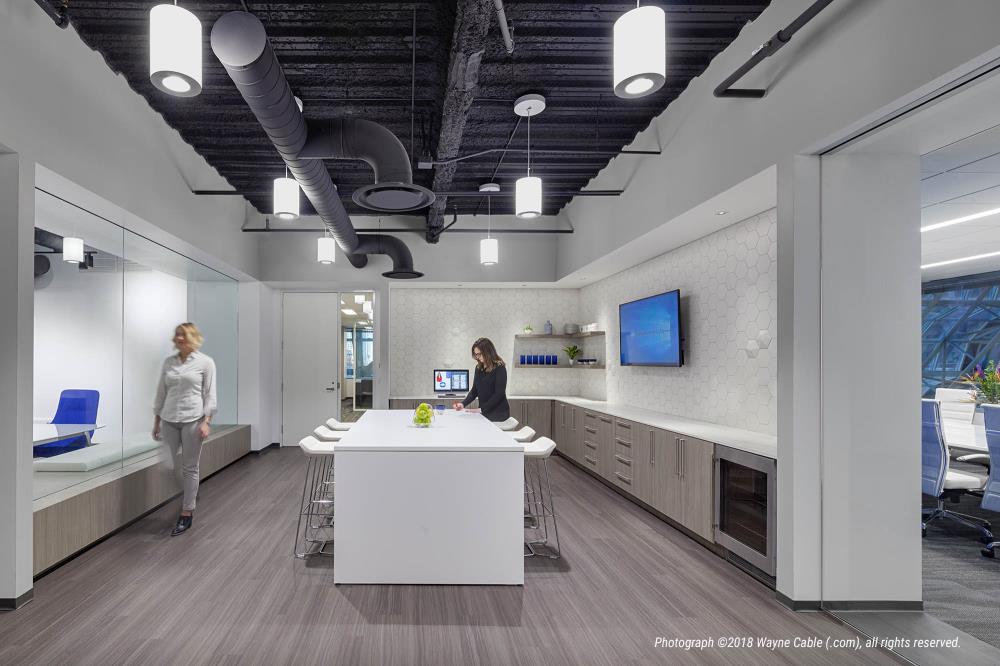

Vallejo LC - Undisclosed Commercial Office
Architect: EWP Architects | Photograph ©2018 Wayne Cable (.com), all rights reserved

<< BACK TO THUMBNAILS
Vallejo LC - Undisclosed Commercial Office
image 9 of 21

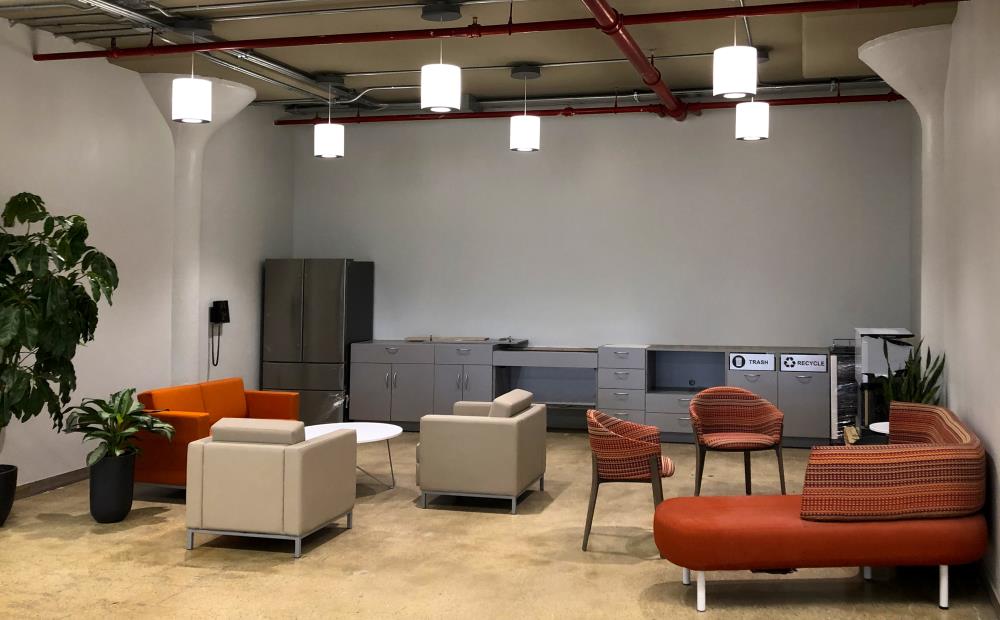

Vallejo LC - HITN
Lighting Layout: Empire Lighting

<< BACK TO THUMBNAILS
Vallejo LC - HITN
image 10 of 21

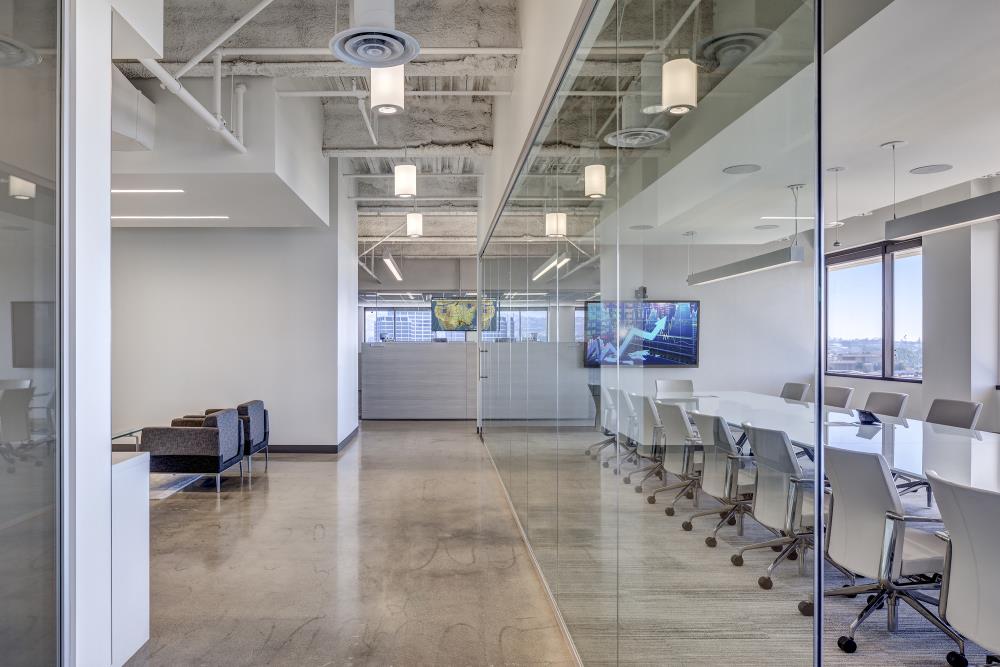

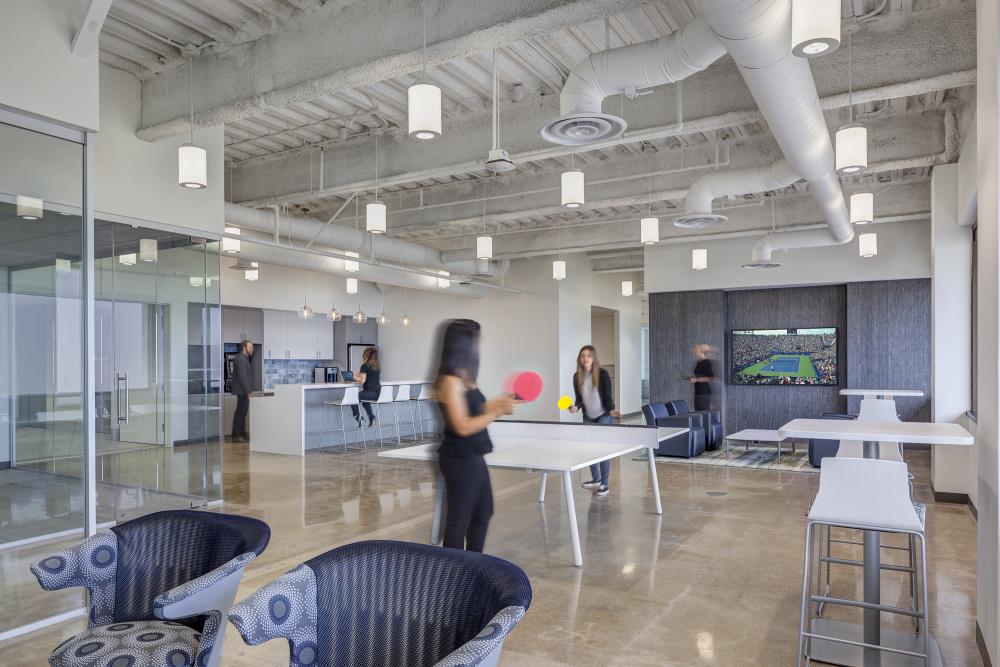

Vallejo 8", 10", 12" - Confidential Commercial Office
Architect: H. Hendy Associates | Howard Building Corporation

<< BACK TO THUMBNAILS
Vallejo 8", 10", 12" - Confidential Commercial Office
image 11 of 21

Vallejo 8", 10", 12" - Confidential Commercial Office
Architect: H. Hendy Associates | Howard Building Corporation

<< BACK TO THUMBNAILS
Vallejo 8", 10", 12" - Confidential Commercial Office
image 12 of 21

Vallejo 8", 10", 12" - Confidential Commercial Office
Architect: H. Hendy Associates | Howard Building Corporation

<< BACK TO THUMBNAILS
Vallejo 8", 10", 12" - Confidential Commercial Office
image 13 of 21

Vallejo 8" - Direct Supply Innovation & Technology Center (MSOE)
Continuum Architects | Electrical Engineer: Leedy & Petzold Associates, LLC

<< BACK TO THUMBNAILS
Vallejo 8" - Direct Supply Innovation & Technology Center (MSOE)
image 14 of 21

Vallejo LC 8" - Second Baptist Church, Woodway Campus
Kirksey Architecture | Aker Imaging

<< BACK TO THUMBNAILS
Vallejo LC 8" - Second Baptist Church, Woodway Campus
image 15 of 21

Vallejo LC 12" - Skybridge Towers
Photo courtesy of Bridge Commercial Real Estate

<< BACK TO THUMBNAILS
Vallejo LC 12" - Skybridge Towers
image 16 of 21

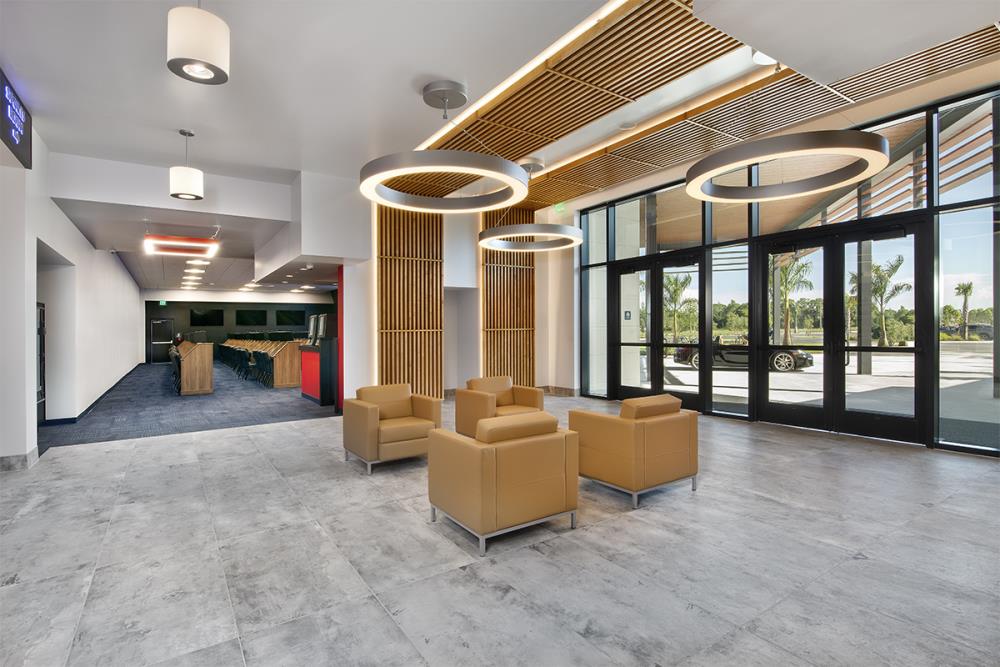

Novato Ring & Vallejo LC - Bonita Springs Poker Room
WDG Architecture | Giovanni Photography, LLC

<< BACK TO THUMBNAILS
Novato Ring & Vallejo LC - Bonita Springs Poker Room
image 17 of 21

Vallejo LC 8", 10", 12" - Capital Center
Lighting Design: Specified Lighting Systems | Photographer: ProNoun Creative

<< BACK TO THUMBNAILS
Vallejo LC 8", 10", 12" - Capital Center
image 18 of 21

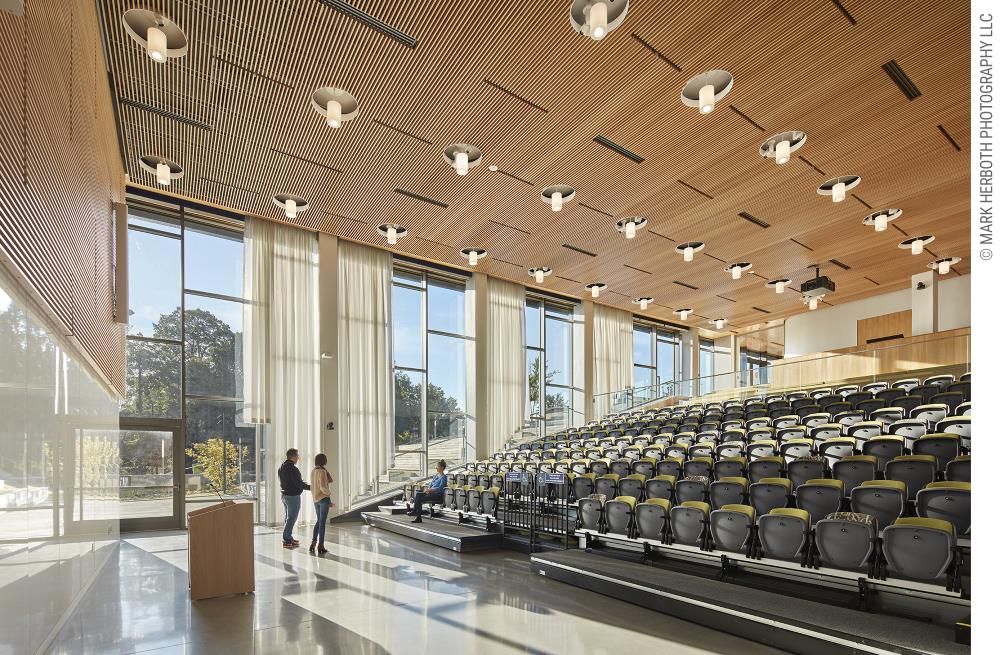

Vallejo LC 8" - Durham County Main Library
