WIRELESS CONTROLS MADE EASY
Effortlessly integrate with the Wireless Controls system that best suits your needs. Simply select from the standard options available on the spec sheet.
FEATURES & BENEFITS
- Fixture has a bi-planar ambient finished bottom detail with or without the regressed downlight component
- Integral regressed downlight available in multiple beam spreads
- Matte acrylic ambient cylinder diffuser is balanced with the proper amount of illumination while providing a sensible wattage allotment
- Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
- Ambient and downlight components are standard with separate switching and 0-10v dimming
- Handcrafted in USA
WHAT YOU SHOULD KNOW
This isn’t just another decorative pendant – it is a modern day replacement for the ubiquitous “architectural cylinder.” The advantage over metal-bodied cylinders is not only the appealing crisp design details on the luminous form, but also the additional ambient component that provides gentle vertical illumination and minimizes scalloping.
Downlight Component
- Up to 3000lm downlight can provide full lighting whether in higher ceiling applications or over a work plane
- Regressed into the luminaire for visual comfort

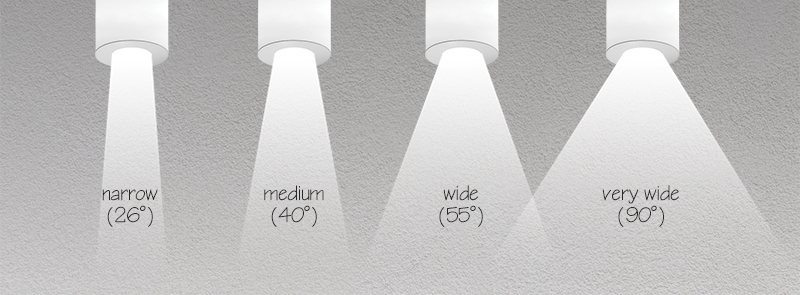

- Available with 26°, 40°, 55°, or 90° beam spread
Ambient Illumination Component
- Provides pleasing visual accents while lighting vertical planes
- Separately controlled 0-10V dimming from downlight component
- Evenly illuminated top to bottom and radially without metal collars
Design Benefits
- The ambient illumination component provides a visual recognition of the light source
- Well-finished ends maximize visual appeal from all angles
ADD VERTICAL ILLUMINATION, INCREASE UPLIGHT, AND IMPROVE AESTHETIC

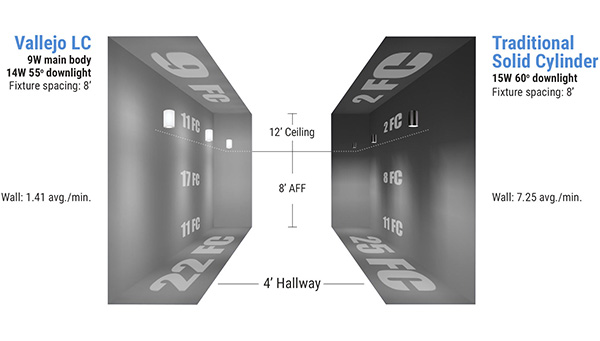

As shown in the example below, Vallejo LC’s luminous body brightens walls and ceilings while delivering comparable illuminance levels on the floor. It is a great choice where you want to increase the feeling of spaciousness or highlight finished ceilings and walls.
OPTIONS
Catalog ID |
Dia. |
Power Supply |
Mounting Options |
PSC |
CAS |
CAC |
PSS |
Power cord suspension 10" wide canopy
|
1/2" stem 5" wide canopy (22.5° swivel) |
Power cord suspension 5" wide canopy |
1/2" Stem 10" wide canopy (45° swivel) |
SIP12082 |
8" |
Integral |
- |
Default |
Option* |
- |
SIP12065 |
8" |
Canopy |
Default |
- |
- |
Option |
Remote |
- |
Option |
Option |
- |
SIP12066 |
10" |
Canopy |
Default |
- |
- |
Option |
Remote |
- |
Option |
Option |
- |
SIP12067 |
12" |
Canopy |
Default |
- |
- |
Option |
Remote |
- |
Option |
Option |
- |
Separate switching for downlight and ambient components, and 1% dimming with 0-10V control, is standard for all canopy-mounted, remote, and stem-mounted integral power supply fixtures.
*Integral power cord suspension option (PCS) must combine downlight and ambient on one circuit with a common 0-10V dimming.
