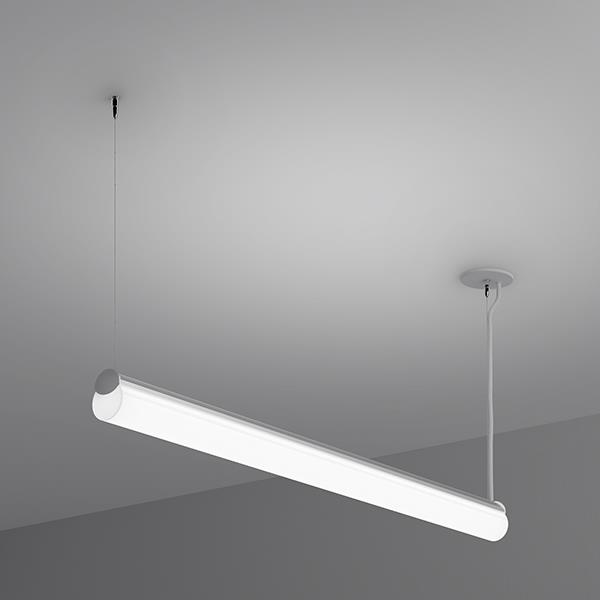

Lyon - Suspended
Lyon is a family of small-scale linear LED fixtures that delivers impressive performance at an affordable price. Designed for continuous runs, it features end-to-end connections with minimal seams. Lyon's low-profile housing and discreet canopy provide a clean, streamlined appearance. The lens, available in five shapes, softly diffuses light with minimal glare. Lyon's simple design and versatility make it suitable for many kinds of spaces. Available in interior and exterior pendant, ceiling, and wall mount versions in 4' and 8' lengths.
Lyon - Suspended SIP12105

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Choose from 5 diffuser shapes
  • Configure in a run or hang as a pendant
  • Housing is engineered to act as an efficient heat sink, maximizing output and life by allowing the LEDs to operate at optimal temperatures
  • Up to 1495 lm/foot delivered at high wattage
  • Semi-direct distribution of 89% direct/11% indirect
  • Anodized finish provides durable corrosion protection
  • Available in low, medium and high wattages
  • Provides functional lighting with comfortable luminance levels
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE:  White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE:  L70 = >50,000 Hrs.
  • EFFICACY:  105 lm/W delivered
  • CCT:  2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE:  120-277V standard
  • DRIVER:  Includes remote Class 2 power supply, enclosure and white power cord(s). Continuous runs are supplied with one power supply per fixture. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING: 1% minimum dim level standard
  • CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION:  LED components are protected against minor surge events
  • LENS:  Diffused acrylic lens
  • CONSTRUCTION:  Housing fabricated from 6000 series aluminum extrusion
  • FINISH:  Housing features available in anodized finish only with end cap and mounting components painted to match
  • MODIFICATIONS: Consult factory for all modification requests, including RGB and static LED colors
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

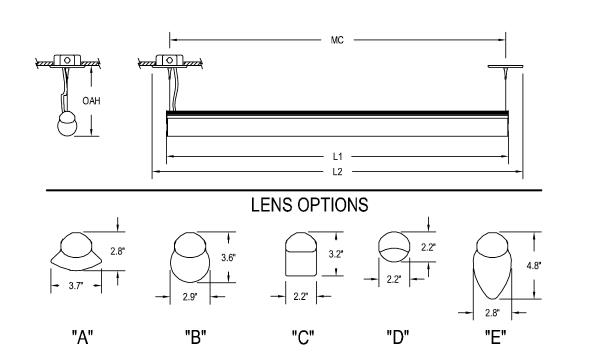

DIMENSIONS

Dimensions
L1
96.1 in
244.1 cm
L2
100.2 in
254.5 cm
OAH
36 in
91.4 cm
MC
94.3 in
239.5 cm
Mounting Weight
Consult Factory.
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.

L28W | White 28W LED Light Engine

Delivered Lumens: 2,940

L56W | White 56W LED Light Engine

Delivered Lumens: 5,880

L113W | White 113W LED Light Engine

Delivered Lumens: 11,865

CUST_Out| Alternate White LED Light Engine
Custom Output:

Enter Watts... Lumens are calculated
Enter Lumens... Watts are calculated


W   : Min 28.0 - Max 113.0
LU   Min 2940 - Max 11865

*For requests outside Min-Max range, please contact factory.

Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_90+HE | 90+ High Efficacy

Controls *

Extended lead times may apply for controls other than 0-10V. Contact factory for additional control options such as Enlighted, Encelium, Wattstopper, WaveLinx, Casambi, or others.

DF_DIM1 | 0-10V Control, 1% Dimming (default)
AWNR | Lutron Athena Wireless Node, 1% Dimming
NX | Current NX Wireless, 1% Dimming
NLTA | Acuity nLight Air, 1% Dimming

Mounting *

Mounts to standard 4” octagonal junction box. Default CAA mounting features two canopies and two aircraft cables that are field adjustable to allow the fixture to be mounted at an application appropriate height. Canopies and power cord are white. INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run. Choose a mounting from below:

DF_CAA | 5"Canopies, Aircraft Cable, Power Cord & Remote Supply (default)
CAS 1 | 5" Canopies & 5/8" Stems, Remote Supply

1 Stem mounting not available in high wattage linear run.   Stems and canopies are painted to match anodized finish

Linear Run

Select this option only for runs longer than 8'. Continuous runs are configured with standard 4' and 8' sections; consult factory for other lengths.

RUN 2 | Continuous Run
OAL | Specify Length of Run
  ft.

2 For a take-off and pricing, contact factory

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up. When specifying EMR with RUN, the first fixture in the run will be the emergency unit.  If other or different Emergency units are needed, contact factory.  Additional Power feed location will be required to power non-emergency sections.

EMR | Emergency Battery Remote

Lens Shapes *

Shown at top with shape "B". See line art for dimensions.

A | Lens Shape "A"
B | Lens Shape "B"
C | Lens Shape "C"
D | Lens Shape "D"
E | Lens Shape "E"

A
B
C
D
E

Options

Alternate end cap finish (AEF) specified separately.

AEF 3 | Alternate End Cap Finish

3 Available in painted finishes only

Other Than Standard Options

Specify overall height required from ceiling to the bottom of the fixture.

OAH | Pendant suspension length other than standard
Enter length:   Select a light source

OAH
