FEATURES & BENEFITS
- Ambient and downlight components are standard with separate switching and 0-10v dimming

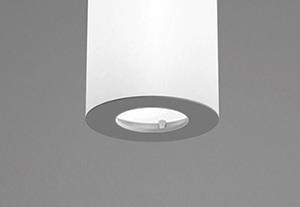

- Up to 1100 lumen performance downlight is optically shielded and available in three beam spreads
- The ambient illumination component provides comfortable source of brightness recognition

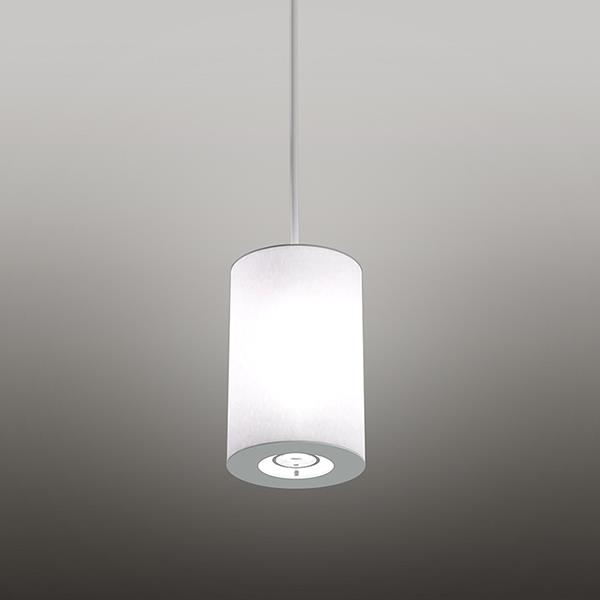

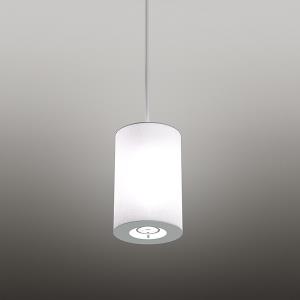

- A glowing aperture on the top complements the bi-planar detail on the bottom of the fixture, maximizing visual appeal from all viewing angles
- Integrated LED luminaire design features a sophisticated passive cooling system with integrated heat sink
- Handcrafted in USA
SPECIFICATIONS
- LIGHT SOURCE: White LED light engine
- CRI: 80+ or 90+
- LUMEN MAINTENANCE: L80 = >55,000 Hrs.
- EFFICACY: Up to 90 lm/W delivered

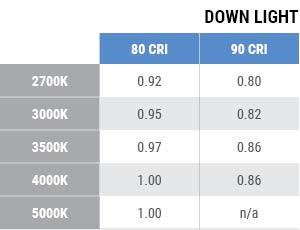

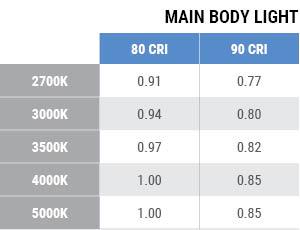

- CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- VOLTAGE: 120-277V standard

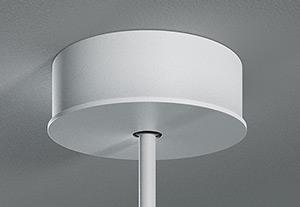

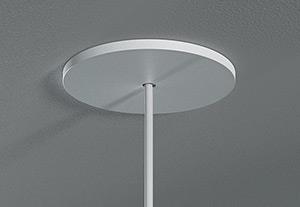

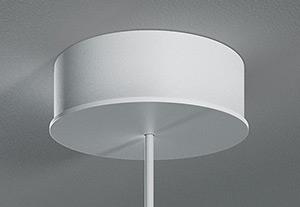

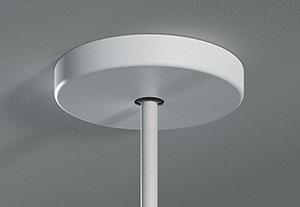

- DRIVER: Class 2 power supply integrated in canopy standard; remote optional. Max distance to the driver (including OAH) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
- MAX AMBIENT OPERATING TEMP: 30°C (86°F)
- DIMMING: 1% minimum dim level standard
- CONTROLS: 0-10V standard. Lutron Athena, Current NX, and nLight AIR optional. Contact factory for other controls (e.g., Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi)
- EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation. Contact factory for other Emergency options.
- INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
- DIFFUSER: White matte acrylic diffuser standard; white gloss acrylic diffuser optional
- CONSTRUCTION: Aluminum
- FINISH: End plates and mounting components finished to match. To specify separately, contact factory. Choose from 26 standard thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

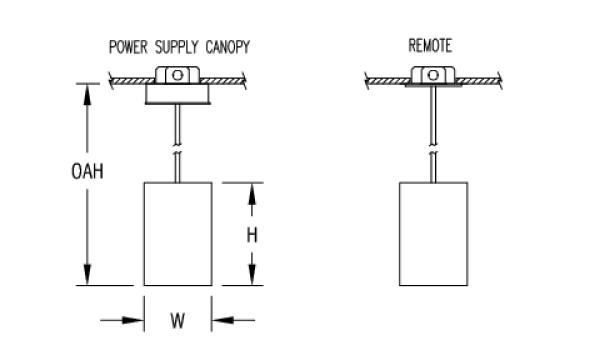

DIMENSIONS
Dimensions
Mounting Weight
Approximate: 5 lb (3 kg)
