FEATURES & BENEFITS

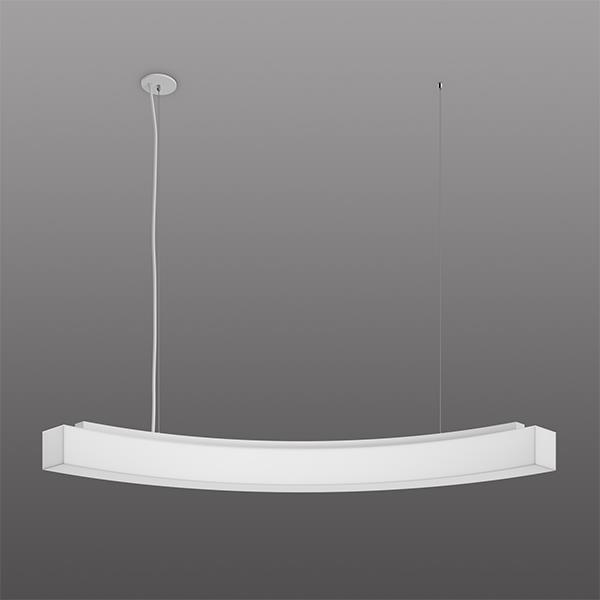

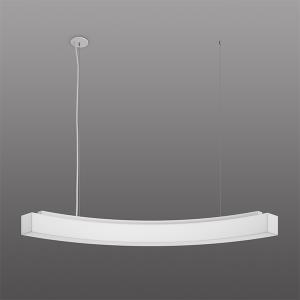

- Fully enclosed three-sided luminous form brightens horizontal and vertical planes
- Provides functional lighting with comfortable luminance levels
- Matte acrylic diffuser emanates filtered, uniform illumination with higher light transmission than traditional opal acrylic
- Strong lines yield a distinctive visual presence
- Ideal for separating open offices, providing wayfinding, or adding markings
- Up to 550' of continuous light with just one power drop
- Maneuvers easily around obstructions
- Easy daisy chain wiring simplifies installation
- Luminous Lines (AIP12071) and Connectors (AIP12073) are ordered separately
- Materials, cross-section, and product details match the entire Novato Family; expand your drawer of design tools using matching pieces
- Handcrafted in USA
- LIGHT SOURCE: White LED light engine
- CRI: 80+ (contact factory for 90+)
- LUMEN MAINTENANCE: L70 = >50,000 Hrs.
- EFFICACY: 102 lm/W delivered
- CCT: 3000K, 3500K, or 4000K
- VOLTAGE: 120-277V standard
- DRIVER: Integral Class 2 power supply. Power drop kit required for each continuous run of fixtures; see catalog CPS12153 to order. Connect power drops anywhere along the run.
- DIMMING: 0-10V controls standard to 1% on LED light engines
- CONSTRUCTION: Powerful magnetic connections strengthen joints
- FINISH: The top plate and channel is painted super white (PT01)
- MODIFICATIONS: Consult factory for all modification requests
- APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications
Mounting Weight: Approximate: 5 lb (3 kg)
Mounting Weight: Approximate: 10 lb (5 kg)
Mounting Weight: Approximate: 5 lb (3 kg)
Required Field *
Please Note: Default specifications "DF_XXX" will not appear in the ordering code.
LIGHT SOURCE *
To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternative wattages available upon request.
3 FOOT RADIUS 90° FIXTURE
3FT-L21W | White 21W LED Light Engine
Delivered Lumens: 2,145
3FT-L42W | White 42W LED Light Engine
Delivered Lumens: 4,291
4 FOOT RADIUS 90° FIXTURE
4FT-L29W | White 29W LED Light Engine
Delivered Lumens: 2,963
4FT-L58W | White 58W LED Light Engine
Delivered Lumens: 5,925
5 FOOT RADIUS 45° FIXTURE
5FT-L19W | White 19W LED Light Engine
Delivered Lumens: 1,941
5FT-L37W | White 37W LED Light Engine
Delivered Lumens: 3,780
Lamp Options *

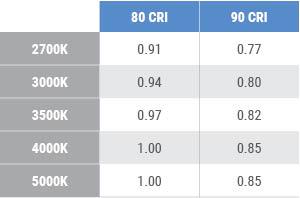

Delivered lumens shown are at 4000K CCT; apply multiplier for delivered lumens at other CCT.
1 Apply .95 multiplier for delivered lumens
2 Apply .97 multiplier for delivered lumens

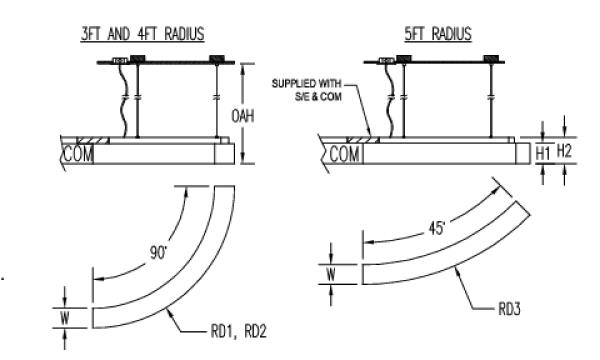

Power drop canopy mounts to standard 4" octagonal junction box. Field adjustable aircraft cables allow fixture to be mounted at an application appropriate height (up to OAH). The aircraft ceiling coupler can be connected to power drop canopy or can be separated from the power drop canopy to gain flexibility in mounting. See Downloads on website for mounting center measurements. Aircraft cable suspension uses ceiling coupler to mount to structure above. Coupler accepts 1/4-20 threaded rod or can be anchored using through hole (hardware by others). INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run.
Other Than Standard Options
Specify overall height required from ceiling to the bottom of the fixture.
| Pendant suspension length other than standard

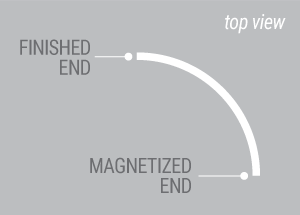

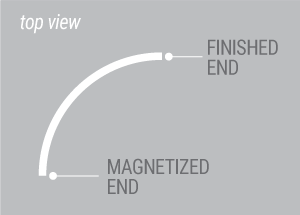

Standalone pendants ship with two aircraft cables and include a power drop kit; ends are not magnetized. Start/End units feature one magnetized end and ship with two aircraft cables and one connector splice box. Common units feature two magnetized ends and ship with two aircraft cables and one connector splice box. Start/End and Common units do not include a power drop kit; see catalog CPS12153 to order.
3 Excludes power drop kit; see catalog ID CPS12153 to order
