Lightruss LED Gen 2 - Upgrade
Lightruss LED Gen 2 - Upgrade

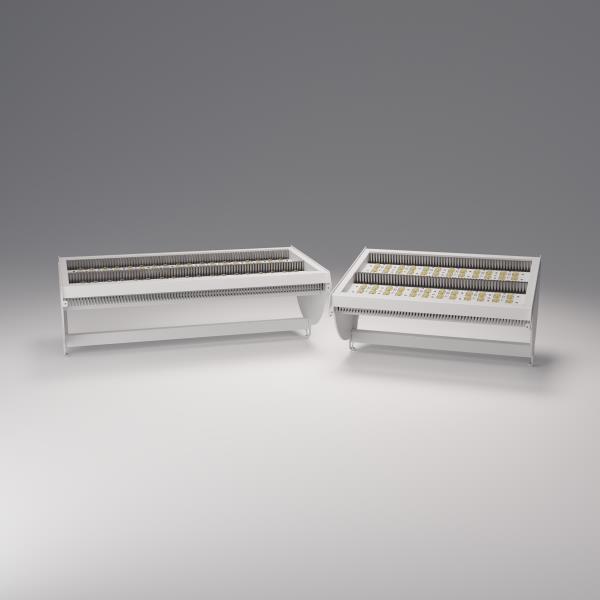

Upgrade your existing Lightruss system to state-of-the-art integrated LED technology. We’ve made it simple by designing these new fixture heads that work with your current truss and wiring. The new high efficiency LED luminaires deliver 127 lumens per watt, providing you with significant energy savings over the 1000W metal halide system. Dramatically improve the quality of light in your facility, eliminate lamp schedule change schedules, and minimize maintenance with this professional-grade solution.

For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

LED
Pendant SIZES
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens
Max Ambient
24.0 in
433
45°C
34.1 in
649
45°C

Lightruss LED Gen 2 - Upgrade

TRANSFORM YOUR FACILITY

Instantly improve the quality of light and enjoy the many benefits of a modern LED lighting system including:

  • Full color spectrum of light
  • Better color consistency
  • Instant on/off
  • Lower facility operating costs
  • Eliminate the cost, labor, and risks associated with multiple re-lamping cycles
  • Long long-rated lifetime (L90 = >72,000 Hrs.)

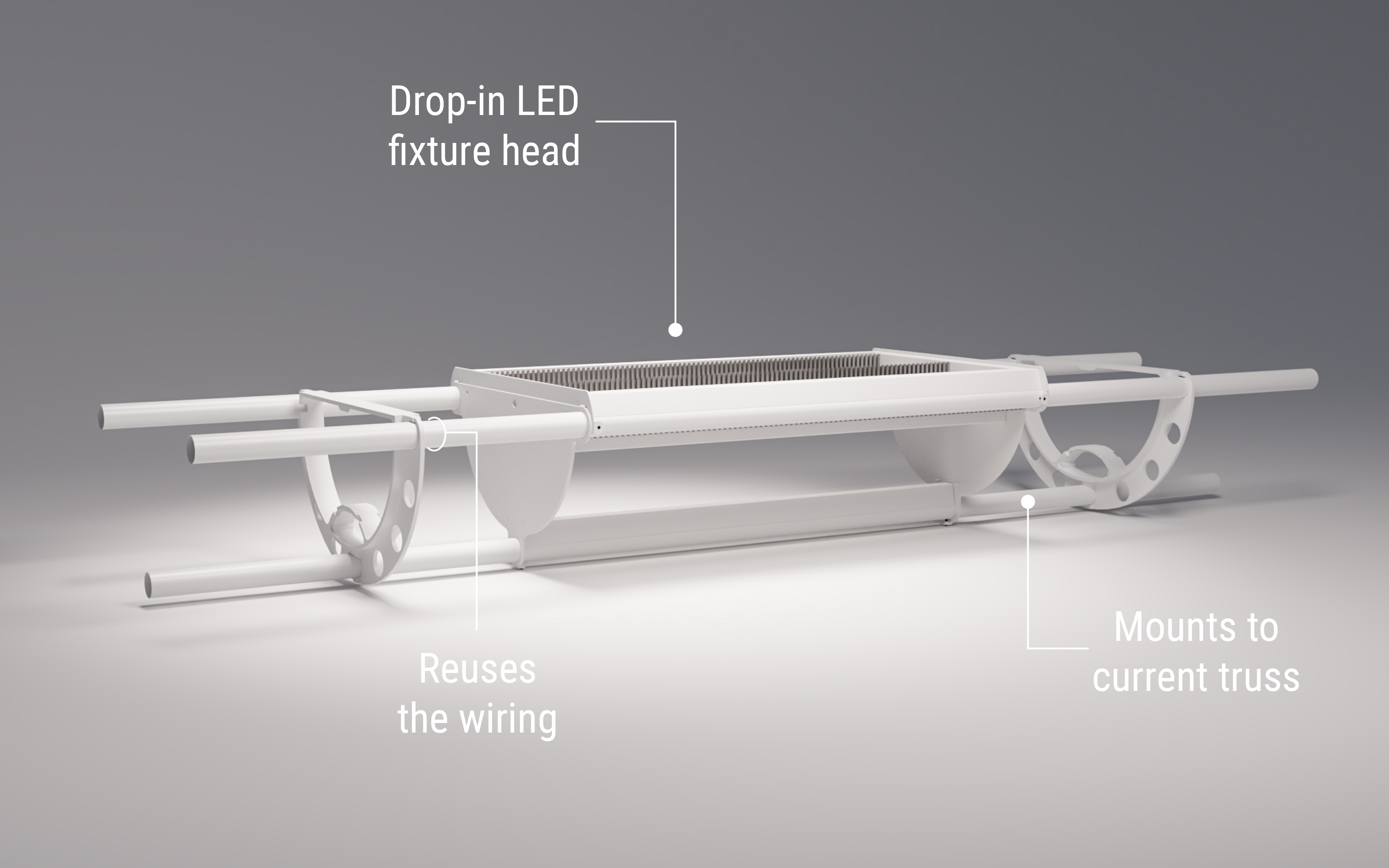

Best of all, the new fixture heads are designed to fit into your existing Lightruss system layout. The one-for-one tub replacement maintains the current light distribution and footcandles. By reutilizing the current trusses, you realize a substantial cost savings over purchasing a new lighting system. New fixtures arrive pre-wired and simply plug into the current system’s wiring with quick connects. Once installed, your facility will enjoy many more years of the highest quality illumination.



VASTLY SUPERIOR TO RETROFITS

Don’t be tempted by LED retrofit kits with inferior results. We’ve seen facilities choose an after-market solution only to revert back to the original factory equipment after just a few months. Lightruss LED Gen 2 is a professional-grade solution with designed to maximize efficiency. Fully-integrated LED technology and the latest in thermal management, it will extend the life of your lighting system for years.



HUGE COST SAVINGS

Upgrading to LED is the fastest way to lower your energy bill.

    LRU12361 LRU12362
Lightruss
LED
Wattage 433 649
Initial Delivered Lumens 54,904 82,293
Mean Delivered Lumens* 52,708 79,001
Lightruss
Metal Halide
Wattage 1,080 1,080
Initial Delivered Lumens 76,600 76,600
Mean Delivered Lumens* 57,500 57,500
Energy Savings 60% 40%

*At 40% of rated life.



Recommended replacement for: LRU12052, LRU12050

SEE IT INSTALLED

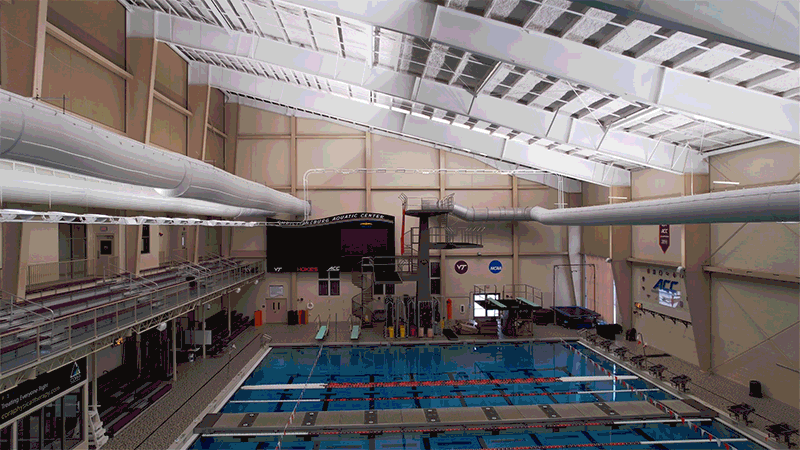

Christiansburg Aquatic Center, the home pool for Virginia Tech Swimming & Diving, upgraded its natatorium lighting from metal halide to Lightruss LED Gen 2. Check out the final installation below!

Project: Christiansburg Aquatic Center | Contractor: Alvis-Laing Electrical



HOW IS IT INSTALLED?

The LED fixtures are designed to work with your current truss and wiring, so the contractor simply lifts the fixture into position, removes the old head, and replaces it with the new technology.

  1. Turn power off to the current Lightruss system.
  2. Remove the internal components of the old fixture.
  3. Disconnect the power leads.
  4. Remove the screws from side plates.
  5. Slide the side panel apart from fixture.
  6. Feed power leads into replacement fixture.
  7. Slide plates against new fixture and secure with screws.
  8. Open power supply box and make connections per local codes.
  9. Close power supply box and return power to fixture.

To compare all Lightruss products, visit the Overview page.
