Beam Wall - Remote
SIW12232 56.00 in

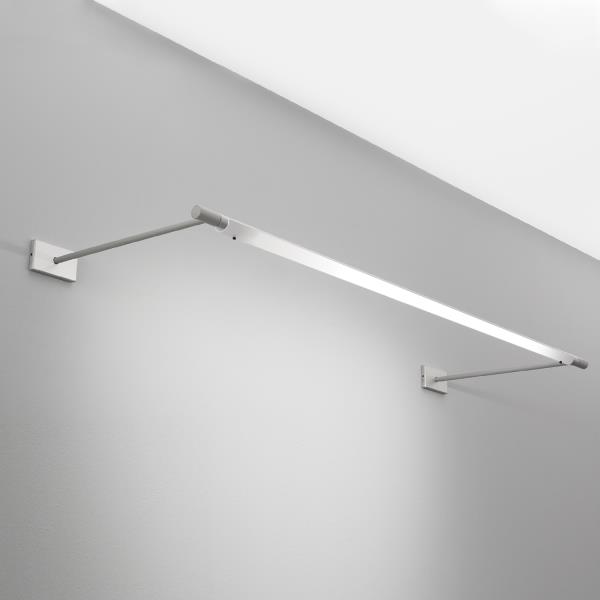

Beam Wall - Remote
With a diameter of just 1”, Beam is one of the most discreet tools on the market for wall washing and grazing. It’s the perfect choice for lighting artwork and murals with quality illumination. It’s clean, slimline design blends into any environment. Despite its small size, Beam delivers up to 630 lumens per foot. Field adjustable aiming enables you to direct light right where you want it. Configure it into linear runs to suit a variety of applications. Also available in pendant mount.
Beam Wall - Remote SIW12232

Start building your product.

Specify your options and generate a personalized spec sheet.

FEATURES & BENEFITS

  • Clean and minimal profile
  • Direct or indirect orientation
  • Symmetric distribution
  • Lamp body can be rotated up to 330° for application specific aiming
  • Housing locks into position, enabling precise fixture alignment
  • Standard translucent shield softly diffuses light
  • Handcrafted in USA

SPECIFICATIONS

  • LIGHT SOURCE: White LED light engine
  • CRI: 80+ or 90+
  • LUMEN MAINTENANCE: L70 = >50,000 Hrs.
  • EFFICACY: 90 lm/W delivered
  • CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • VOLTAGE: 120-277V standard
  • DRIVER: Includes remote Class 2 power supply and enclosure. 36" lead length standard. Continuous runs are supplied with one power supply per fixture.  Max distance to the driver (including OAP) is: #18 AWG = 50', #16 AWG = 75', #14 AWG = 100'. For extended distances, contact factory.
  • DIMMING: 0-10V controls standard to 1%
  • CONTROLS: Contact factory for control options (e.g., Lutron Athena, Current NX, nLight, Enlighted, Encelium, Wattstopper, WaveLinx, or Casambi).
  • EMERGENCY: Remote battery option is provided with 10W Constant Power Battery back-up, providing 90 Minutes of Emergency operation.  Contact factory for other Emergency options.
  • INTEGRATED SURGE PROTECTION: LED components are protected against minor surge events
  • CONSTRUCTION: Extruded aluminum tube with aluminum end caps
  • FINISH: Housing and mounting components finished to match. Choose from an anodized satin aluminum finish or from more than 30 thermoset polyester powder coat paint colors. RAL®, Pantone®, or custom finishes available upon request.
  • MODIFICATIONS: Consult factory for all modification requests, including other lengths or to discuss shielding options
  • APPROVALS: ETL listed to UL standards (US & Canada) for use in damp locations; not recommended for exterior applications

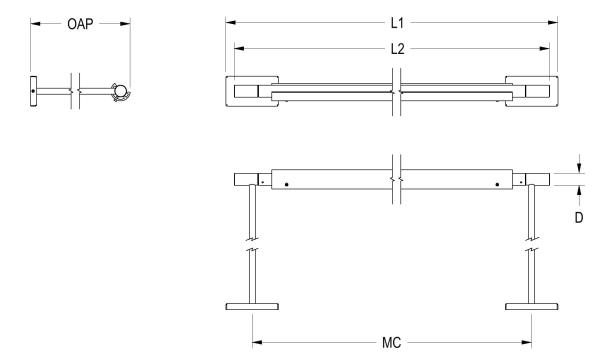

DIMENSIONS

Dimensions
L1
57.4 in
145.8 cm
L2
56 in
142.2 cm
D
1 in
2.5 cm
OAP
18 in
45.7 cm
MC
53 in
134.6 cm
Mounting Weight
Approximate: 5 lb (3 kg)
Your Configuration:
clear
--None --

Required Field *

Please Note: Default specifications "DF_XXX" will not appear in the ordering code.

PROJECT DETAILS

Job Name:
Type:
Comments:

LIGHT SOURCE *

To ensure color consistency, SPI uses precise bin selection and strict quality processes to maintain a 3-step (MacAdam) SDCM on all white LED lampings. Published LED luminaire wattages are calculated using a typical power supply efficiency of 88%; exact wattages may vary based on application. Alternate wattages available upon request.

L16W | White 16W LED Light Engine

Delivered Lumens: 1,440

L28W | White 28W LED Light Engine

Delivered Lumens: 2,520


Voltage *

120-277V | Universal Voltage

Lamp Options *

Apply multiplier from chart for delivered lumens at other CCT’s and CRI’s.

2700K | 2700K CCT
3000K | 3000K CCT
3500K | 3500K CCT
4000K | 4000K CCT
5000K | 5000K CCT

CRI *

DF_80 | (default)
90

Mounting *

Additional mounting structure and hardware required (by others). LBC mounts to standard octagonal j-box. SBC mounts to a standard switch box. ICS mounting does not require a j-box for mounting. This mounting is supplied with six feet of power cable inside flexible metal conduit to allow the j-box connection to be done in an accessible place. INSTALLATION NOTES: During installation the contractor is responsible to use actual fixtures to ensure accurate mounting centers from one fixture to the next along the length of the linear run. Choose a mounting from below:

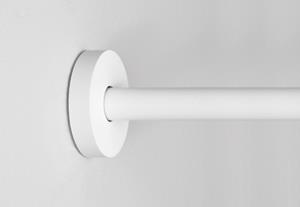

ICS | 1.4" Round Mini Canopy and Stem

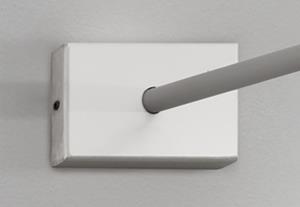

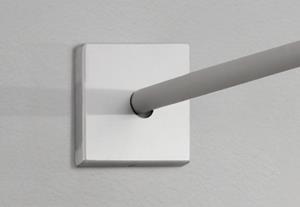

LBC | 4.4" Square Canopy and Stem
SBC | 4.4" x 2.5" Switch Box Cover and Stem

ICS
LBC
SBC

Linear Run

Select this option only for runs longer than 4'.

RUN 1 | Continuous Run
OAL | Specify Length of Run
  ft.

1 For a take-off and pricing, contact factory

Emergency

10W, Constant Power Battery Back-up, with 90 minutes of emergency operation. EMR includes damp location enclosure for Battery back-up. When specifying EMR with RUN, the first fixture in the run will be the emergency unit.  If other or different Emergency units are needed, contact factory.  Additional Power feed location will be required to power non-emergency sections.

EMR | Emergency Battery Remote

Options

F | Fusing

Other Than Standard Options

Specify overall projection required from wall to the end of the fixture. The minimum OAP is 6". Overall projection greater than 18" includes aircraft cable support kit.

OAP | Projection length other than standard
Enter length:   Select a light source

Request a modification
prev
close
next

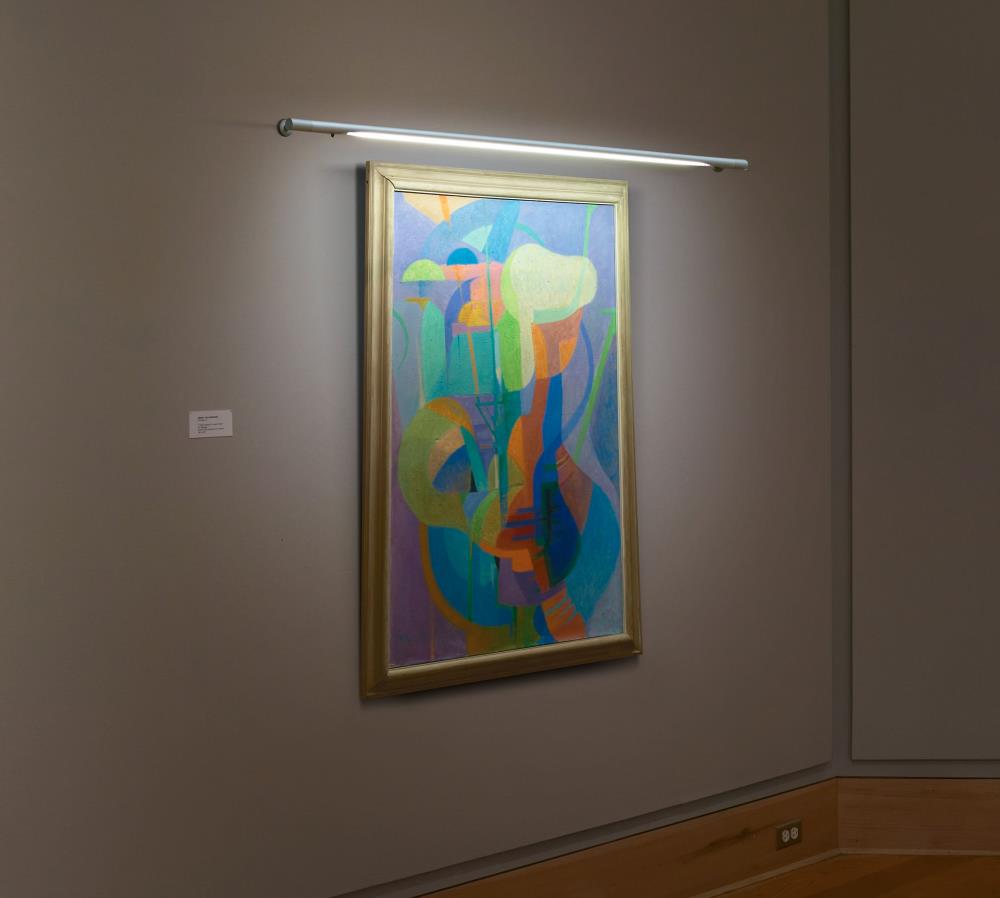

Beam - Lawrence University

<< BACK TO THUMBNAILS
Beam - Lawrence University
image 1 of 5

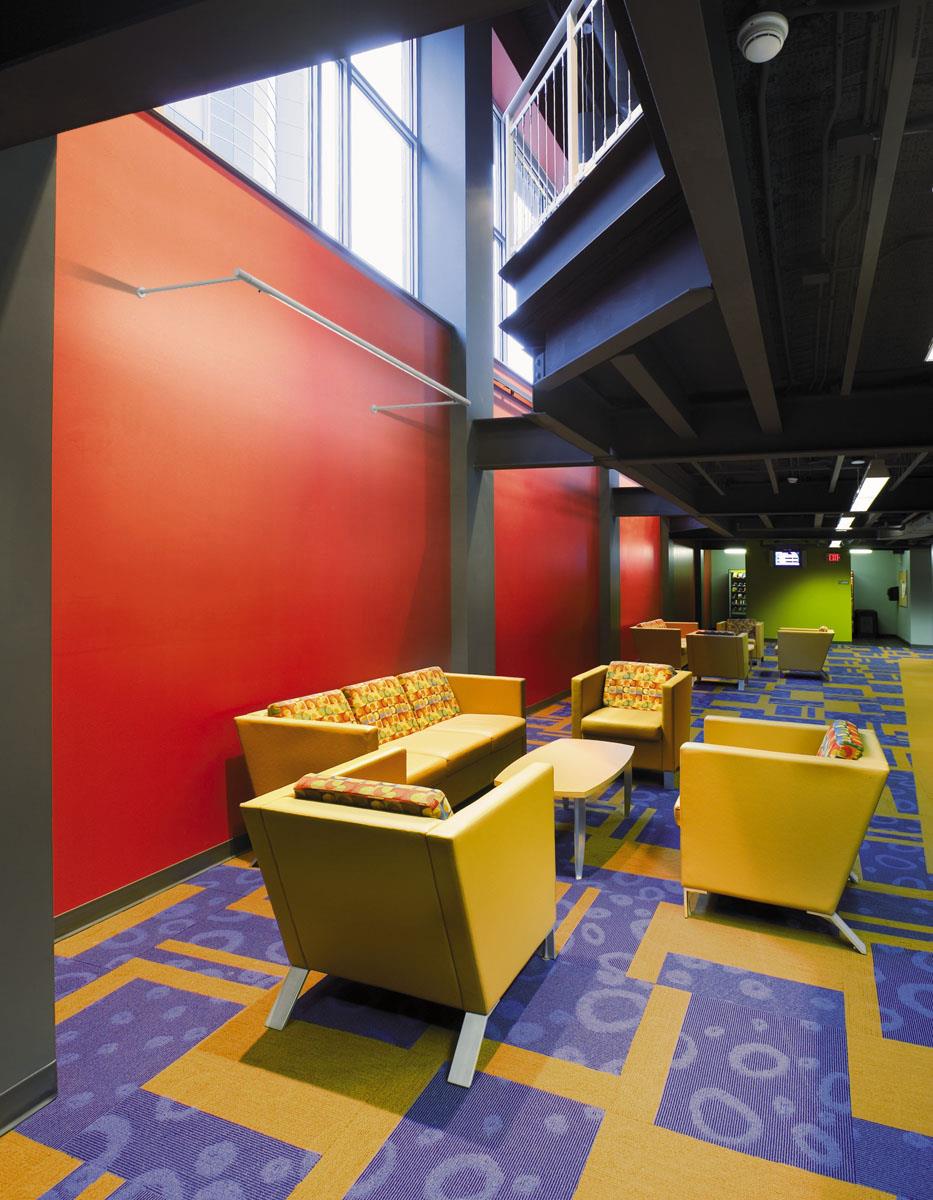

Beam - Lawrence University

<< BACK TO THUMBNAILS
Beam - Lawrence University
image 2 of 5

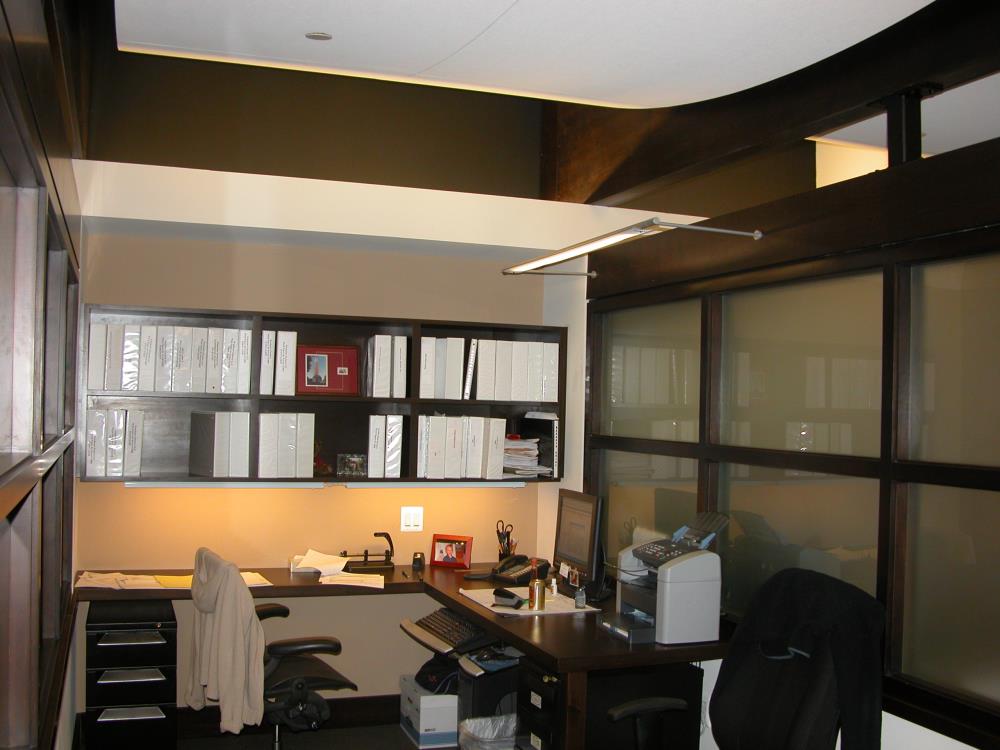

Beam - Offices of USA Management

<< BACK TO THUMBNAILS
Beam - Offices of USA Management
image 3 of 5

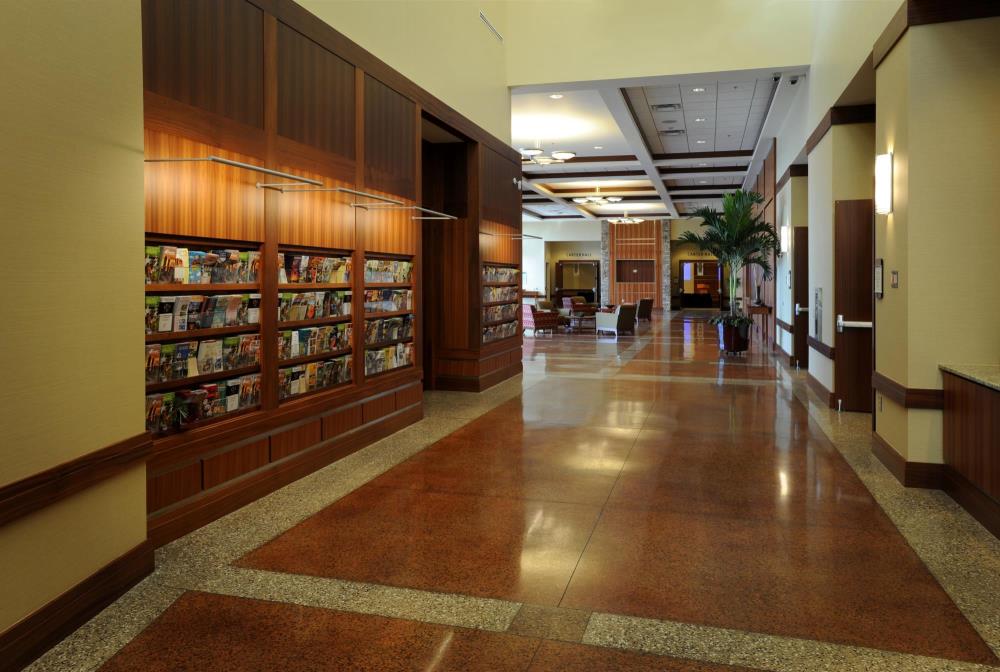

Beam - Bartow

<< BACK TO THUMBNAILS
Beam - Bartow
image 4 of 5

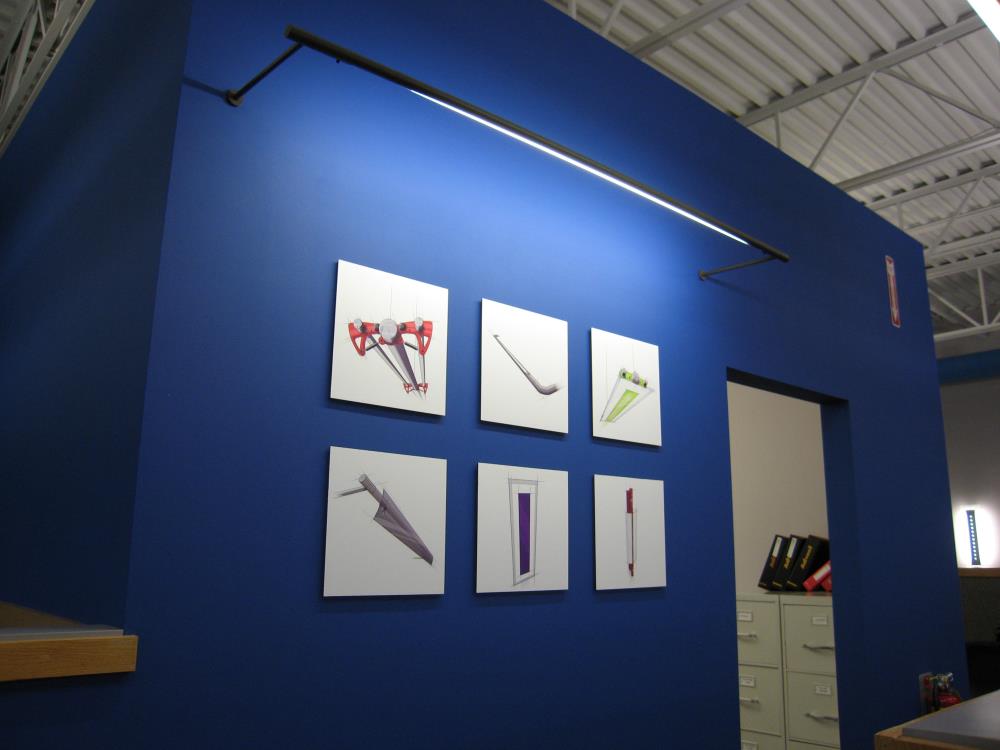

Beam - SPI Lighting Engineering
