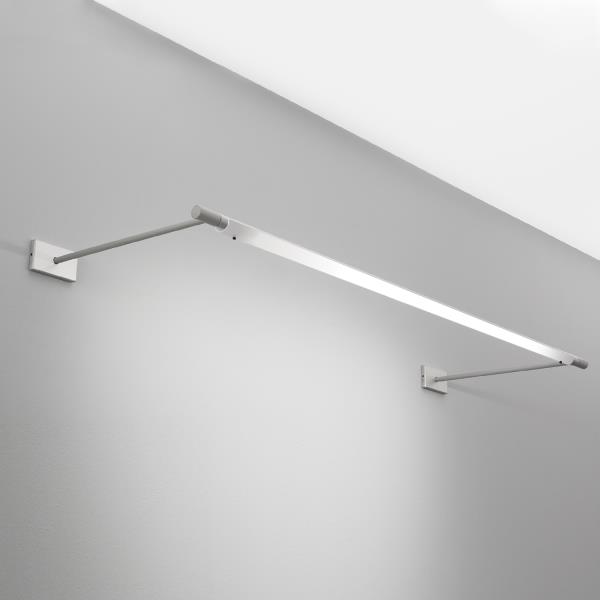

Beam Wall - Remote
Beam Wall - Remote

Beam delivers quality illumination in an award-winning fixture. It’s ultra-slim 1" housing blends into any environment. With efficacy up to of 90 lm/W delivered, it delivers impressive output in a small package. An remote power supply provides a clean look. Mount Beam individually or configure linear runs. Its standard 18" projection can be shortened to meet ADA requirements.

Beam’s multiple shielding options and four sizes make this low-profile fixture adaptable to many applications. Also available in ceiling mount.

Beam Wall - Remote

FEATURES & BENEFITS

  • Standard thermoset polyester powder coat paint provides durable protectioin in a palette of color options
  • Field adjustable housing locks into position, enabling precise fixture alignment for high quality design performance
  • Each module requires connection to a 24V constant voltage power supply
  • Lamp body can be rotated up to 330° for application specific aiming
  • Translucent shield supplied


PRODUCT DETAILS

For spec sheet and IES files, click on the links within the table below.

Series H L Total Wattage Delivered Lumens
SLWB 2.9 in 29 in L8W
L14W		 720
1,260
2.9 in 41 in L11W
L22W		 990
1,980
2.9 in 53 in L15W
L29W		 1,350
2,610
2.9 in 65 in L19W
L36W		 1,710
3,240



DOWNLOADS

IES Reports
Revit
Mounting Submittal

Install Sheets
Shield
Remote
Remote LBC/SBC
AC Support Cables
1.4" Canopy
5" Canopy & Stem
Perpendicular Wall

RELATED PRODUCTS

Beam Wall - Integral
Beam delivers quality illumination in an award-winning fixture. It’s ultra-slim 1" housing blends into any environment. With efficacy up to of 90 lm/W delivered, it delivers impressive...
Beam Wall - Integral

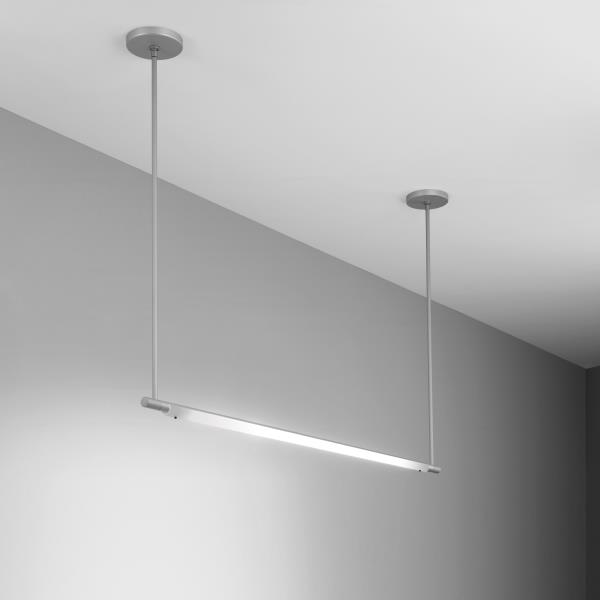

Beam Suspended - Remote
