Echo Reflections 9.0
The perimeter indirect of today
Echo Reflections 9.0 LED

Whether you want to deliver low-glare indirect illumination, accentuate the verticality of the space, or directly light the exterior of a building, Echo Reflections 9.0 is the solution. This powerful luminaire offers field adjustability and, unlike similar products, adjustable light engines that leave the fixture static. This ensures its appearance is always uniform, even when distributions are different for performance or obstructions.

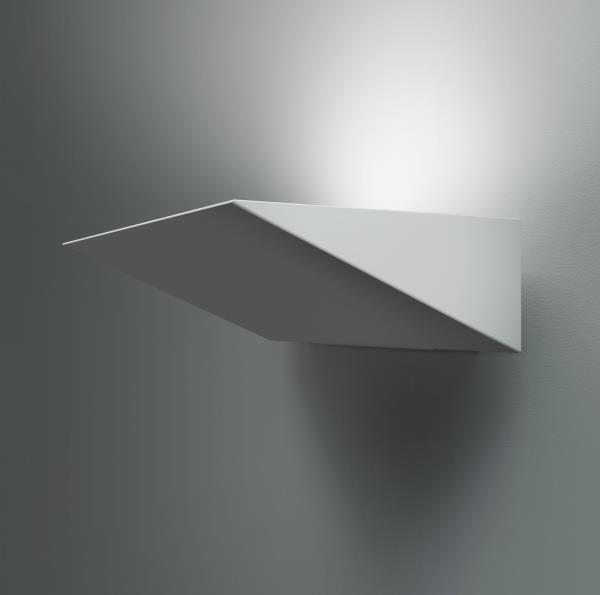

The sleek wedge design seamlessly blends into architecture. Available in 6,000, 12,000, and 24,000 lumen packages.

For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

LED
Wall SIZES
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens
Lumens shown include color-over-angle correction lens.

Echo Reflections 9.0 LED

THE PERIMETER INDIRECT OF TODAY

Echo Reflections 9.0 delivers top-of-the-line indirect lighting to brighten the ceiling plane and increase the feeling of spaciousness. Improve visual comfort by concealing the source of brightness. Not to mention, the high lumen packages allow for elimination of fixtures by increasing your fixture to fixture spacing. In addition, the indirect orientation means the architecture and interesting textured surfaces are the highlight of your space.

Flexible internal optics means Echo Reflections 9.0 can be forward-throw, wall grazing, or flood washing, all in the same housing. Use it anywhere in your space or on your façade and create the desired effect by adjusting the optics while maintaining design continuity with the static housing.

Indirect or direct, interior or exterior, Echo Reflections 9.0 solves a wide variety of lighting challenges in one package.



ADJUST THE LIGHT, NOT THE FIXTURE

Too often, obstructions in the field interfere with ideal lighting design. Or architects are forced to mix and match dissimilar fixtures to achieve desired lighting distributions in a space. These problems can result in inconsistent appearance of luminaires and deviations from design intent.

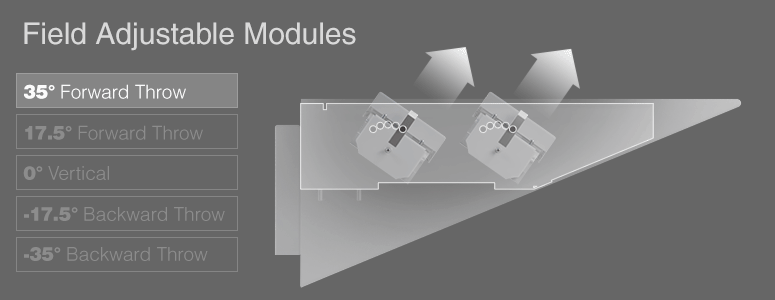

Echo Reflections 9.0 features field adjustable modules which can each be independently changed to five distributions. Adjustments are internal, meaning the housing doesn’t move. This ensures the appearance of fixtures is always uniform even when distributions are different. Each module’s ratcheting mechanism easily adjusts in seconds and requires no tools.




35° Forward Throw
The best choice for delivering indirect illumination to the workplane for the highest level of usable light. Also effective when used to accent objects on horizontal surfaces.
17° Forward Throw
Emphasizes uniformity and a visually clean light pattern. Ideal solution for uniform illumination of wall or ceiling planes.
0° Vertical
Delivers light back onto the wall plane above the luminaire and to the ceiling. Ideal for highlighting columns, emphasizing the verticality of a space, or accentuating wall textures.
-17.5° Backward Throw
Graze building facades, illuminate signs, or accentuate wall textures with this distribution. Great option for controlling indirect light pollution in exterior environments.
-35° Backward Throw
Indirectly illuminate exterior walkways by reflecting light off of walls onto pathways.



INDOORS OR OUT, USE ECHO SHAPES 9.0 ANYWHERE

Echo Reflections 9.0 is ETL listed to UL standards for use in wet locations, which means it’s rated to go anywhere water or other liquids may drip, splash, or flow on or against electrical equipment. Think of it for exterior walls, columns, walkways, and signs.



BUILT TO LAST IN HARSH ENVIRONMENTS

This natatorium-rated fixture is specially constructed to protect it from the humidity and corrosive chemical vapors found in pools. Echo Reflections 9.0 features:

  • Aluminum construction (lightweight and rust-proof)
  • Minimum 2 mils powder coat paint to prevent corrosion (except BAL finish)
  • Corrosion-resistant fasteners
  • IP68 rated LED light engine that is protected against the effects of continuous immersion in water
  • Fully potted integral power supply that is sealed with epoxy to protect internal components
  • Closed cell gaskets and seals ensure moisture stays out of the power supply box

SPI Lighting is an expert in natatorium lighting. We have designed fixtures to safely illuminate Olympic, competition, school, and community pools for more than 30 years.



CORRECTS FOR COLOR-OVER-ANGLE DISCLORATION

Inherent within LEDs is a color-over-angle (COA) variation caused by phosphor path length differences. Along the edge, the angle light that exits the LED is larger, causing more absorption of blue light. What remains is a more yellow, phosphor-converted light.



This non-uniformity in color can be a significant concern, particularly in spaces with light colored walls or ceilings. Echo Shapes 9.0 includes a standard top lens that corrects for this. The diffuser film color mixes the output, delivering a clean white beam suitable for highly-finished ceilings and walls.








RELATED PRODUCTS

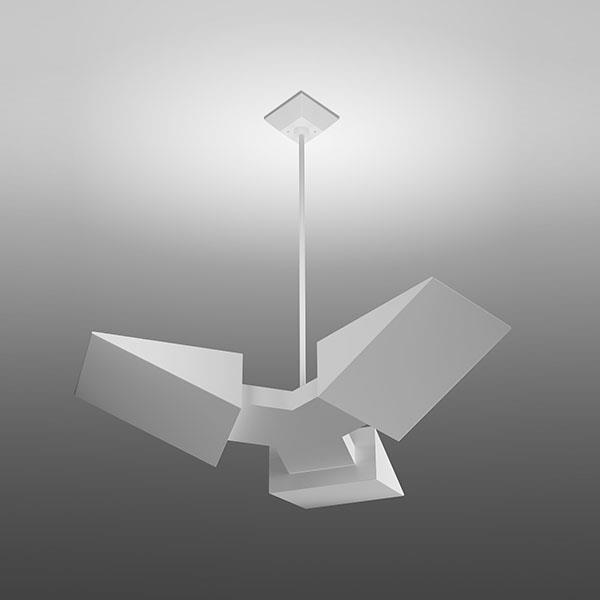

Echo Reflections 9.0 Multiples
