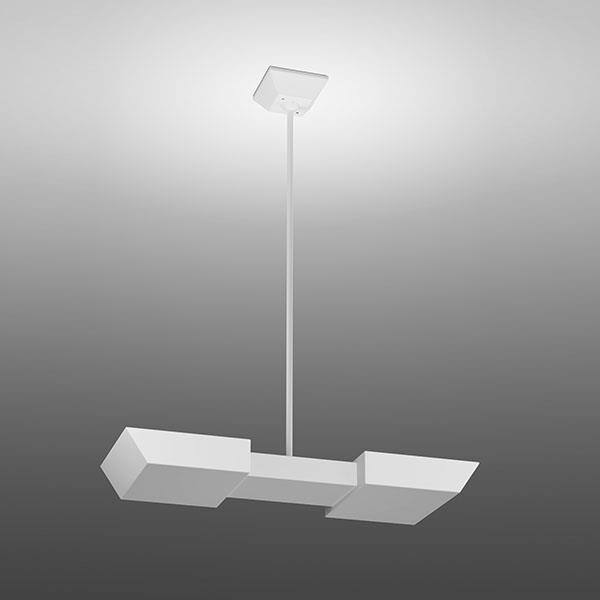

Echo Shapes 9.0 Multiples
Echo Shapes 9.0 Multiples

Illuminate larger spaces more comfortably with indirect lighting. This versatile multi-head pendant combines the power of multiple fixtures into one high-performance luminaire.

It offers field adjustability and, unlike similar products, adjustable light engines that leave the fixture static.

For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

LED
Pendant SIZES
12300
37.3 in
EIP12300
12299
37.5 in
EIP12299
12298
43.3 in
EIP12298
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens

Echo Shapes 9.0 Multiples

POWERFUL LATERAL INDIRECT LIGHTING

Echo Shapes 9.0 Multiples high-performance pendants make it possible to incorporate quality indirect lighting into any high ceiling application, increasing visual comfort, reducing glare, and improving light uniformity. Indirect lighting uses the ceiling’s surface to diffuse the light, controlling brightness ratios and producing proper ambient lighting throughout the room. It produces the balanced lighting you’re looking for while concealing the light source from view.

Moreover, this luminaire’s multi-head design and monopoint mounting consolidates fixtures and simplifies electrical requirements. And with high efficacy up to 130 lm/W, you can illuminate large spaces—not only more comfortably—but more economically, too.

Available in 24,00, 36,000, or 48,000 lumen packages. Contact the factory for higher output variations topping 100,000 lumens per fixture.



ADJUST THE LIGHT, NOT THE FIXTURE

The innovative field-adjustable design provides better illumination on walls and in corners. By adjusting each module’s distribution independently, you can direct more light where you want it – towards the center of the room. Unlike similar products, adjustments are internal, ensuring a uniform appearance even when distributions vary. Each module’s ratcheting mechanism easily adjusts in seconds and requires no tools.



BUILT TO LAST IN HARSH ENVIRONMENTS

Offered with a Natatorium option, this fixture is specially constructed to protect it from the humidity and corrosive chemical vapors found in pools. Echo Shapes 9.0 Multiples features:

  • Aluminum construction (lightweight and rust-proof)
  • Minimum 2 mils powder coat paint to prevent corrosion (except BAL finish)
  • Corrosion-resistant fasteners
  • Gasketed and fully sealed LED modules
  • Fully potted integral power supply that is sealed with epoxy to protect internal components

SPI Lighting is an expert in natatorium lighting. We have designed fixtures to safely illuminate Olympic, competition, school, and community pools for more than 30 years.

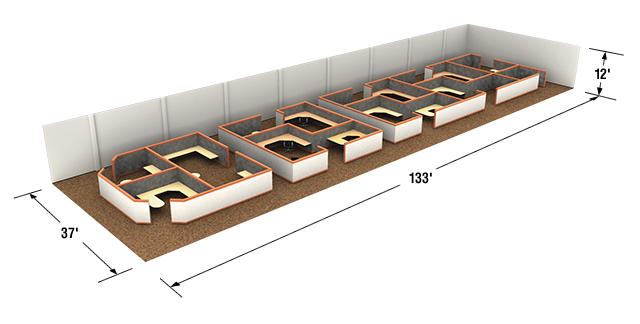

SAMPLE LAYOUT: OFFICE

Get a design, installation, and energy advantage with Echo Shapes 9.0 Multiples. See how!



Previous catalog references: EIP12127, EIP12128, EIP12129
