Echo Blade
Cutting-edge indirect lighting
Echo Blade

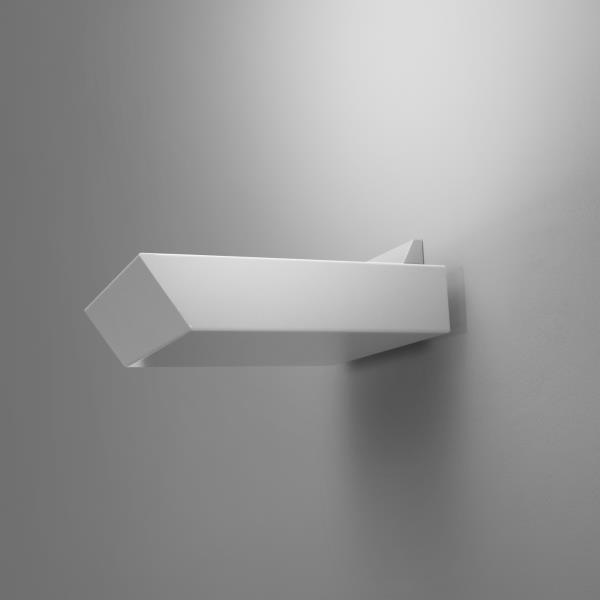

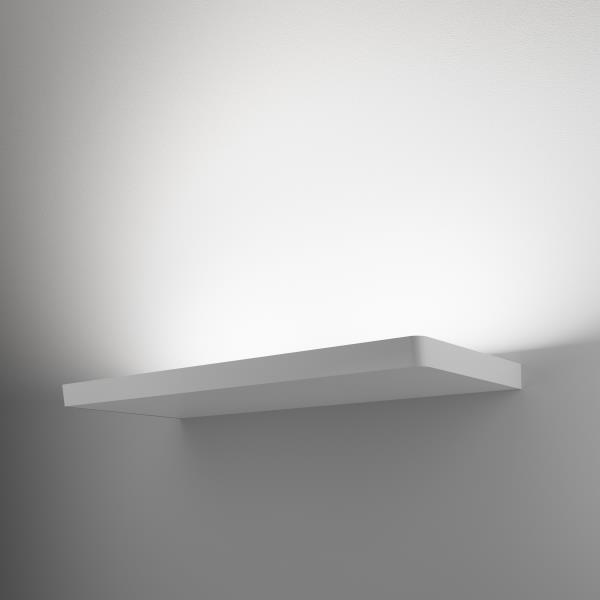

Echo Blade is the slimmest, most discrete high output asymmetric lighting tool on the market. It combines high output density with outstanding quality in a sleek, new architectural form that performs as great as it looks. With a profile as slim as 1.5”, SPI Lighting’s Echo Blade can deliver from 12,000 to 36,000 lumens. Available in either a deep forward throw or a wide distribution, it is ideal for illuminating large spaces with comfortable, glare-free light. For a complimentary lighting layout, contact our applications team at SPIteam@spilighting.com.

LED
Wall SIZES
LUMEN DATA
Spec Sheet
Size
Wattage
Lumens
Lumens shown are for Deep Asymmetric distribution. Click value to download zip file containing photometrics for all optical distribution options.

Echo Blade

A TRUE ASYMMETRIC

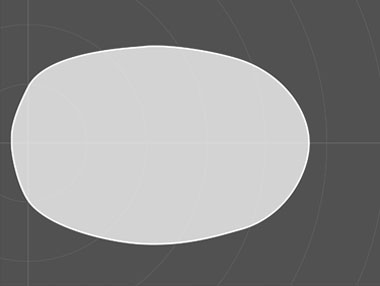

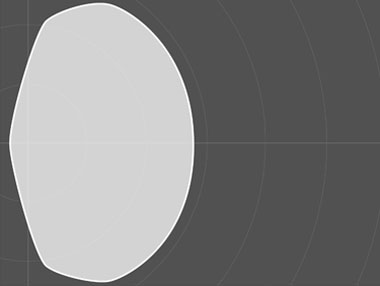

Expertly designed with advanced optics, Echo Blade effectively gets light where it's needed most—the middle of the room. The fixture is offered in four distributions to maximize its flexibility and uniformity. Choose from deep or wide beams depending on the application.

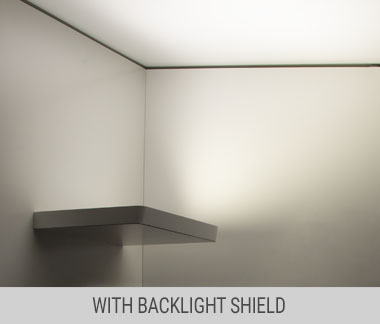

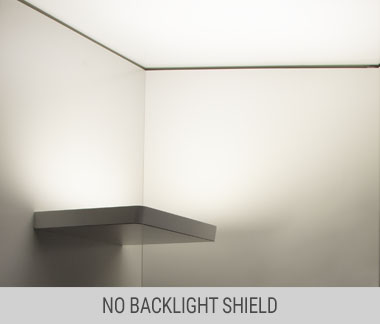

An optional backlight shield can also be specified to minimize the visual signature of the luminaire even further.



ENJOY ALL THE BENEFITS OF INDIRECT LIGHTING

In large spaces, too often light quality is sacrificed for light quantity. Indirect lighting improves visual comfort by hiding the light source from view and eliminating direct glare. All light is reflected off the ceiling, creating a smooth comfortable source of brightness and well-diffused illumination. This avoids high-luminance contrast and reduces shadows, balancing light.

Beyond improving light quality, Echo Blade enables beautiful design. By lighting from the perimeter, the ceiling plane remains unobstructed, creating a clean canvas for architecture.



THE BEST WAY TO LIGHT NATATORIUMS

Echo Blade is an excellent choice for pools where controlling glare is a top priority. Choose our special natatorium-rated construction to add extra protection from the humidity and corrosive chemical vapors found in these harsh environments. You'll get:

  • Durable aluminum construction
  • Minimum 2 mils powder coat paint to prevent corrosion
  • Stainless steel fasteners
  • Silicone potted connections
  • Fully potted power supply(s) that are sealed with epoxy to protect internal components

SPI Lighting is an expert in natatorium lighting. We have designed fixtures to safely illuminate Olympic, competition, school, and community pools for more than 30 years.



CORRECTS FOR COLOR-OVER-ANGLE

Inherent within LEDs is a color-over-angle (COA) variation caused by phosphor path length differences. Along the edge, the angle light that exits the LED is larger, causing more absorption of blue light. What remains is a more yellow, phosphor-converted light.



This non-uniformity in color can be a significant concern, particularly in spaces with light colored walls or ceilings. Echo Blade always includes a standard top lens that corrects for this. The diffuser film color mixes the output, delivering a clean white beam suitable for highly-finished ceilings and walls.
